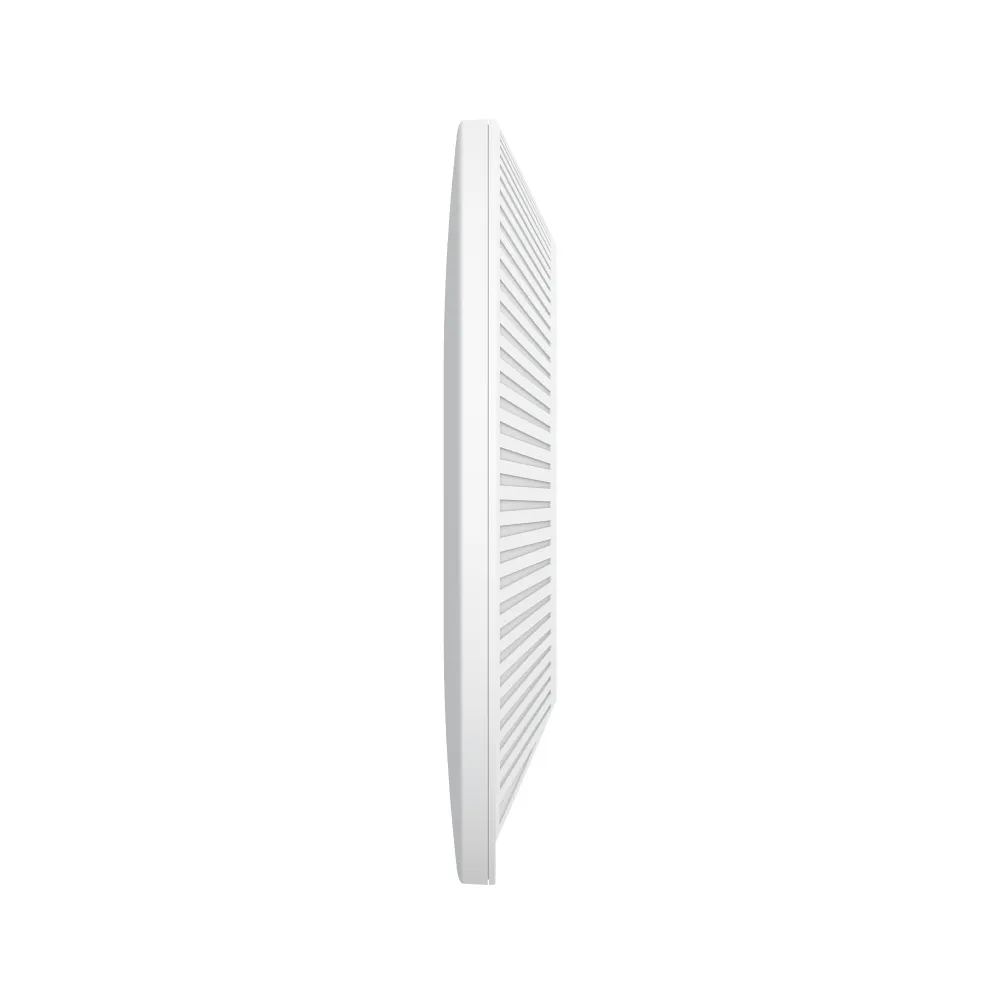

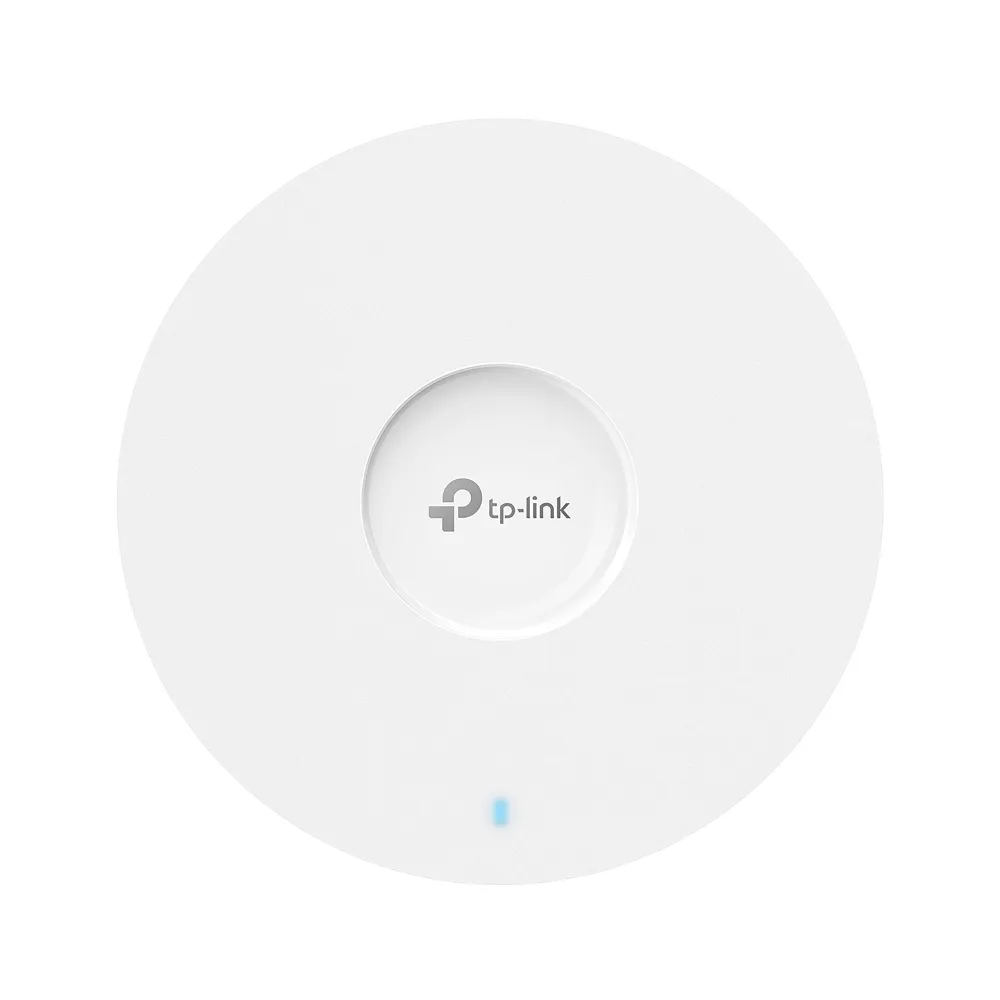

EAP673 TP-link Access Point
About this product
AX5400 Wi-Fi 6
TP-Link EAP673
Ceiling Mount Access Point. Blazing-fast 5.4 Gbps speeds with a 2.5G Port and Seamless Roaming.
5.4 Gbps
AX5400 Speed
2.5 Gbps
Ethernet Port
160 MHz
Double Data Width
🚀 Dual-Band Performance
5 GHz Band
4,804 Mbps
HE160 Supported
2.4 GHz Band
574 Mbps
Extended Range
⚡ Wi-Fi 6 Efficiency
- ✓ HE160: Double the data at peak times.
- ✓ 1024-QAM: Packs more data per packet.
- ✓ Omada Mesh: Wireless flexibility.
- ✓ Seamless Roaming: No-drop connections.
🔌 Hardware & Power
- ✓ 1x 2.5G Port: High-speed uplink.
- ✓ Bluetooth 5.2: Integrated for smart apps.
- ✓ Power Supply: 802.3at PoE+ or 12V DC.
- ✓ Consumption: ~20.8W (PoE).
📊 Technical Specifications
Power & Install
- PoE: 802.3at PoE+
- DC: 12V / 2A (Adapter not included)

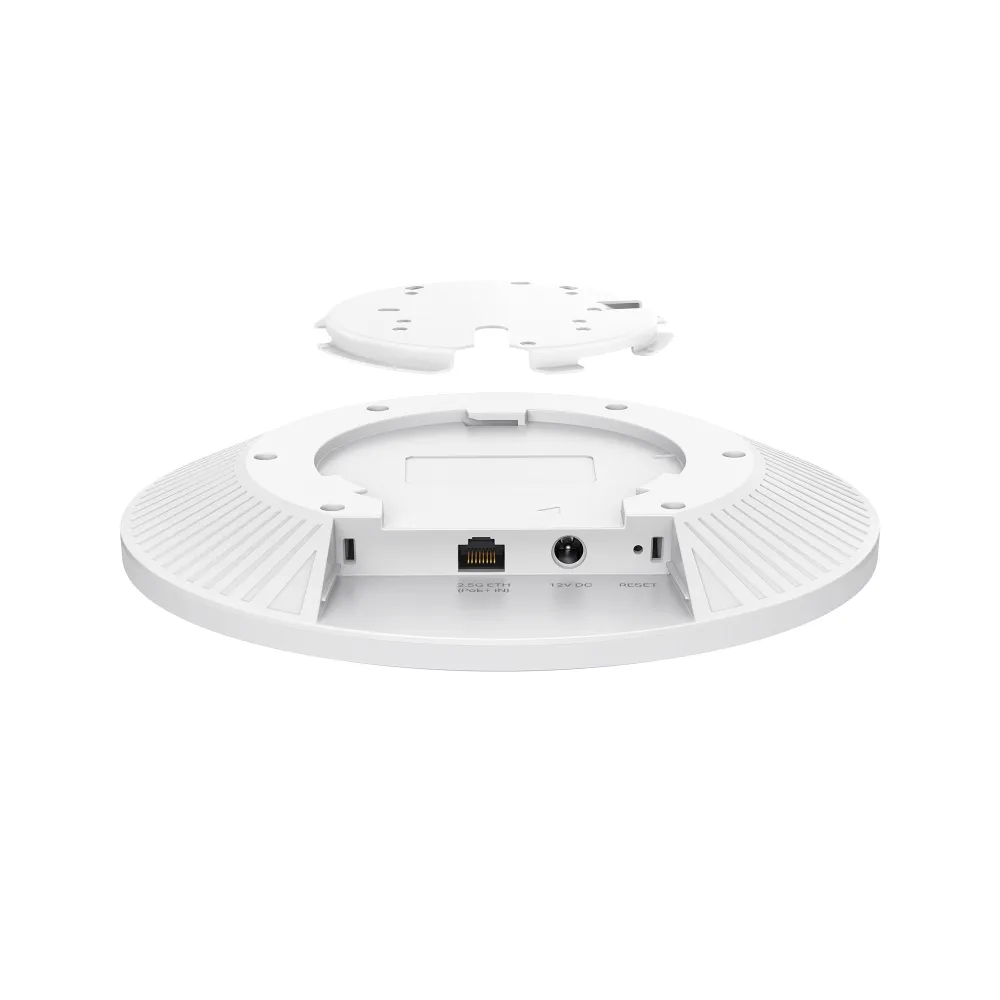

- Mounting: Ceiling / Wall (Kits Included)
- Dimensions: 220 × 220 × 32.5 mm
Capacity & Wireless
- Concurrent Clients: 250+
- SSIDs: 16 (8 per band)
- Coverage: ~140m² (1500 ft²)
- Functions: OFDMA, MU-MIMO, Airtime Fairness
Omada Management
- Controller: Cloud, Hardware (OC200/300), Software
- App: Omada App Supported
- Access: Cloud Access, Web UI, SSH
- Features: ZTP, Reboot Schedule, VLAN
Package Includes: EAP673, Ceiling/Wall Mounting Kits, Installation Guide | Certifications: CE, FCC, RoHS
