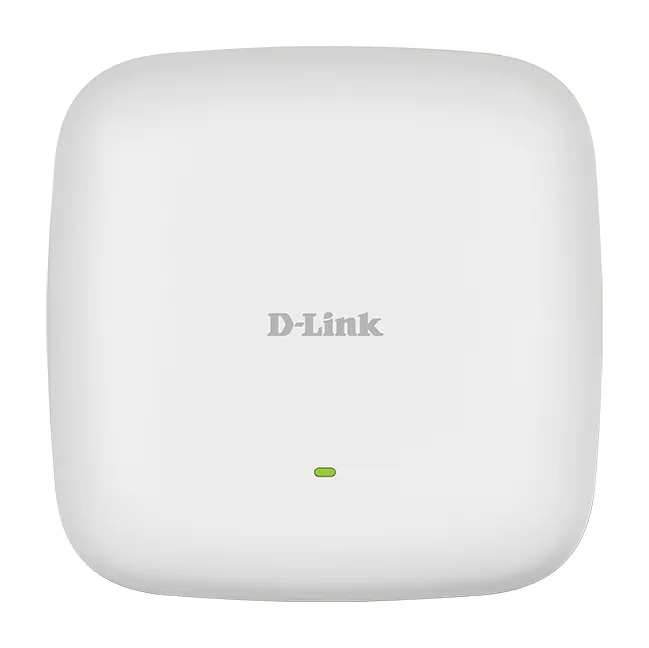

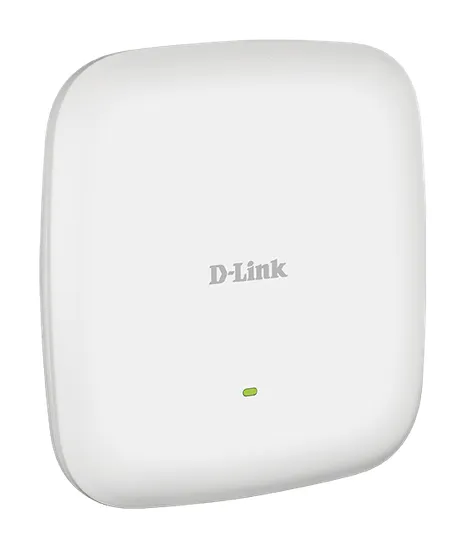

DAP-2682 Access Point
About this product
Enterprise AC2300
D-Link DAP-2682
Wireless Wave 2 Dual-Band PoE Access Point. Superior speeds up to 2.3 Gbps with dual LAN connectivity.
2.3 Gbps
Combined Speed
Wave 2
MU-MIMO Tech
2x GbE
Dual LAN Ports
📡 Wireless Performance
- ✓ High Speed: Up to 2.3 Gbps throughput.
- ✓ MU-MIMO: Efficient multi-user data transmission.
- ✓ Beamforming: Directs signal to devices for better range.
- ✓ Band Steering: Automatically connects to the fastest band.
🔌 Hardware & Management
- ✓ 2x Gigabit LAN: Both ports support PoE.
- ✓ Link Aggregation: Maximize wired throughput.
- ✓ Nuclias Connect: Free centralized management software.
- ✓ Installation: Flexible wall or ceiling mounting.
WARRANTY: Limited Lifetime Warranty Included
Technical Datasheet
DAP-2682 Specifications
Detailed technical breakdown for the Wireless AC2300 Wave 2 Dual-Band PoE Access Point.
2.3 Gbps
Total Throughput
2x GbE
Dual LAN Ports
WPA3
Advanced Security
📡 Wireless & Radio Specifications
| Standard | Wireless AC Wave 2 (Dual-band simultaneous) |
| Speeds |
5 GHz: 1700 Mbps 2.4 GHz: 600 Mbps |
| Antennas |
Embedded Omni-Directional (3.7 dBi @ 2.4GHz | 4.8 dBi @ 5GHz) |
| Operation Modes | Access Point (AP), WDS Bridge, WDS with AP, Wireless Client |
| Advanced Tech | MU-MIMO, SmartBeam, Auto Channel Selection |
🔌 Hardware & Physical
- Interface: 2 x Gigabit Ethernet LAN
- Power: Power-over-Ethernet (PoE) Supported
- Housing: Indoor Plastic
- Type: Software Managed AP
⚡ Network Features
- Optimization: AP Traffic Load Balance, Wi-Fi Scheduler, WMM-PS
- Protocols: IPv6, DHCP Server, IGMP Snooping, NTP, ARP Spoofing
- SSIDs: Up to 16 supported
🔒 Security
WPA3-Personal/Enterprise
WPA/WPA2-Personal/Ent.
802.1X Auth
MAC Filtering
Station Isolation
WLAN Partition
Rogue AP Detection
💻 Management
- Platform: Nuclias Connect
- Interfaces: WEB, CLI, Telnet, SSH
- Monitoring: SNMP (v1/v2c/v3), Syslog
- Encryption: TKIP/AES
Enterprise Ready: Includes WPA_WPA2_PSK over WDS and dual internal antennas for robust deployment.
