DAP-3666 Access Points
About this product
Outdoor AC1200 Wave 2

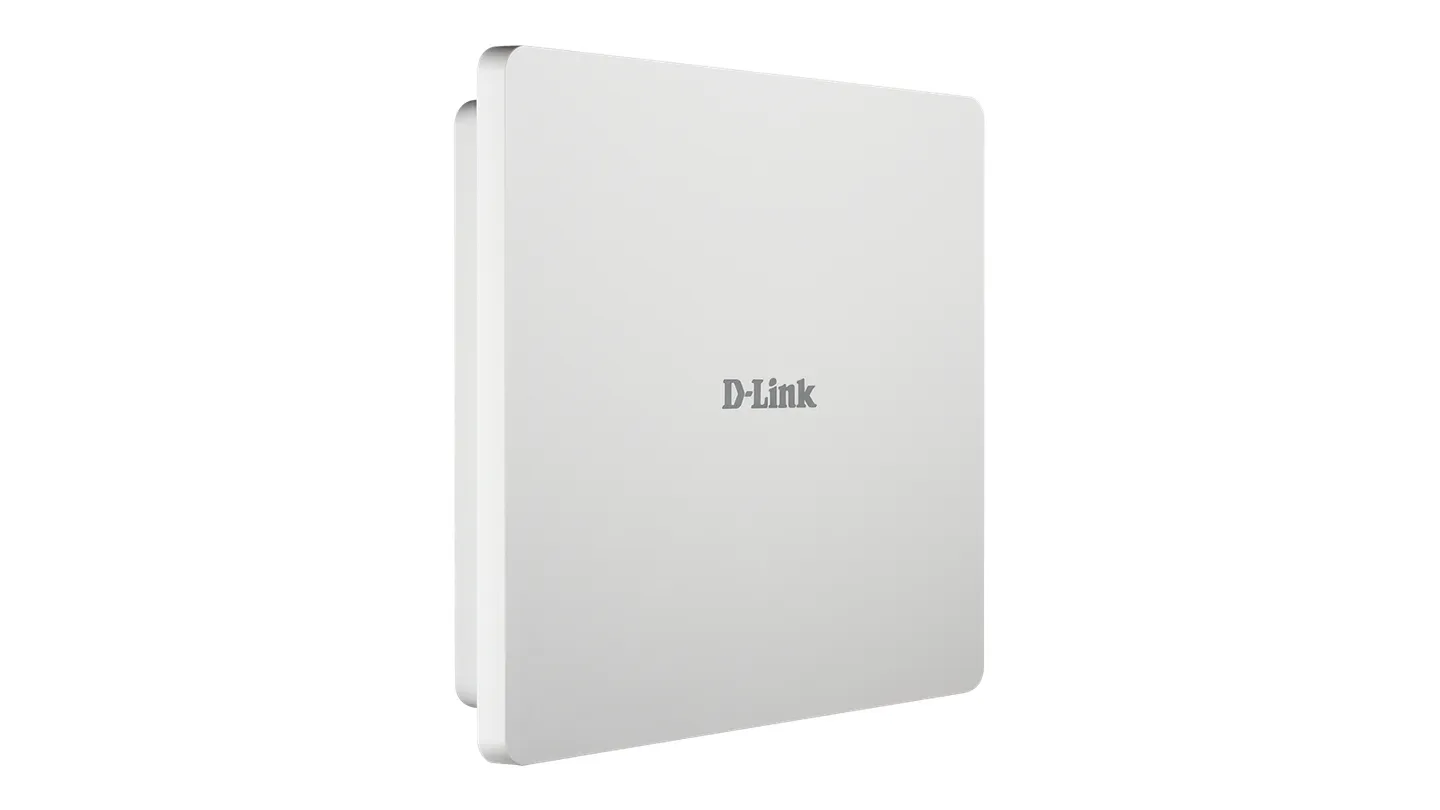

D-Link DAP-3666
Rugged Dual-Band Outdoor PoE Access Point. IP68 Weatherproof rating for extreme environments (-30 to 60°C).
1.2 Gbps
Wireless Speed
IP68
Water & Dust Proof
2x GbE
Gigabit LAN Ports
🌧️ Extreme Outdoor Engineering
IP Rating
IP68 Certified
Water & Dust Proof
Temp Range
-30° to 60°C
Weather Resistant
Connectivity
PoE Support
LAN 1 (PoE capable)
📡 Wireless Features
- ✓ WiFi4EU Ready: Compliant for public projects
- ✓ Wave 2 MU-MIMO: Efficient multi-user data
- ✓ Beamforming: Targeted signal direction
- ✓ Band Steering: Optimized connections
💻 Management & Design
- ✓ Free Nuclias Connect software
- ✓ 2x2 Internal Antennas
- ✓ 2x Gigabit LAN Ports
- ✓ Centralized Network Management
Mounting: Wall/Pole Mount Kits included | Power: PoE Capable (LAN 1)
Technical Datasheet
DAP-3666 Specifications
Detailed technical breakdown for the IP68 Outdoor AC1200 Wave 2 Access Point.
1.2 Gbps
Wireless AC Speed
IP68
Weatherproof Rating
2x LAN
Gigabit Interfaces
📡 Wireless Performance
| Standard | Wireless AC Wave 2 (Dual-band simultaneous) |
| Speeds |
5 GHz: 867 Mbps 2.4 GHz: 300 Mbps |
| Antennas |
Embedded Omni-Directional (6 dBi @ 2.4GHz | 6 dBi @ 5GHz) |
| Advanced Tech | MU-MIMO, SmartBeam, Band Steering, WiFi4EU Ready |
🔌 Hardware & Physical
- Housing: Outdoor Plastic (IP68 Rated)
- Interfaces: 2 x Gigabit Ethernet LAN
- Power: Power-over-Ethernet (PoE)
- Type: Software Managed AP
⚡ Features & Modes
- Modes: Access Point (AP), WDS Bridge, WDS with AP, Wireless Client
- Roaming: 802.11k/r Fast Roaming, L2 Roaming
- Optimization: Airtime Fairness, AP Traffic Load Balance, Wi-Fi Scheduler
- Capacity: Up to 16 SSIDs
🔒 Security
WPA/WPA2-Personal/Ent.
TKIP/AES
WPA_WPA2_PSK over WDS
802.1X Auth
MAC Filtering
Station Isolation
WLAN Partition
ARP Spoofing
💻 Management
- Platform: Nuclias Connect (Free Software)
- Interfaces: WEB, CLI, Telnet, SSH
- Network: DHCP Server, IPv6, IGMP Snooping, NTP
- Monitoring: SNMP (v1/v2c/v3), Syslog
WiFi4EU Ready: Ideal for public hotspots, campuses, and outdoor venues.
