DAP-X2850 Access Point
About this product
Enterprise AX3600

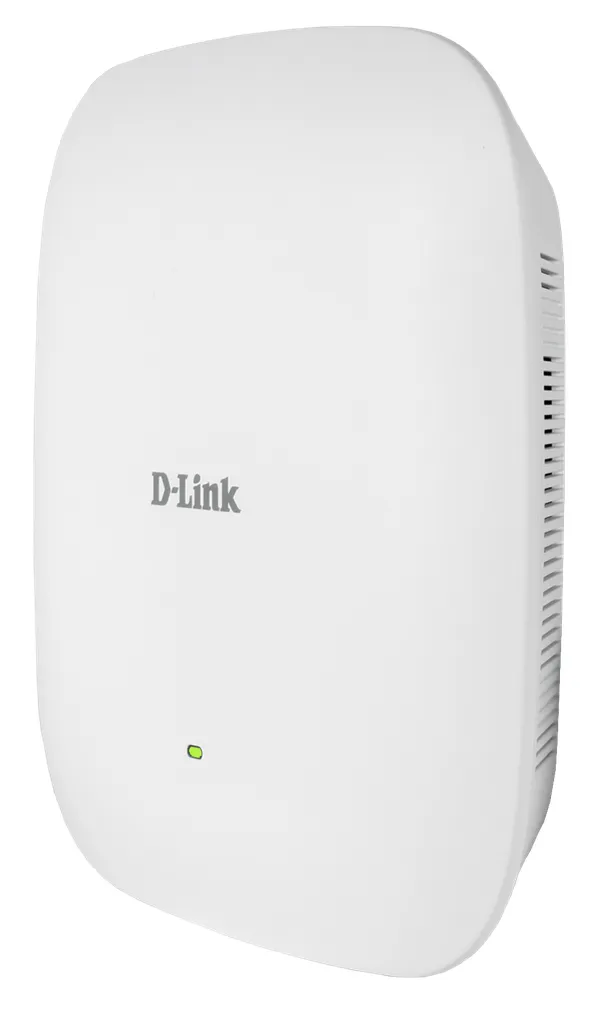

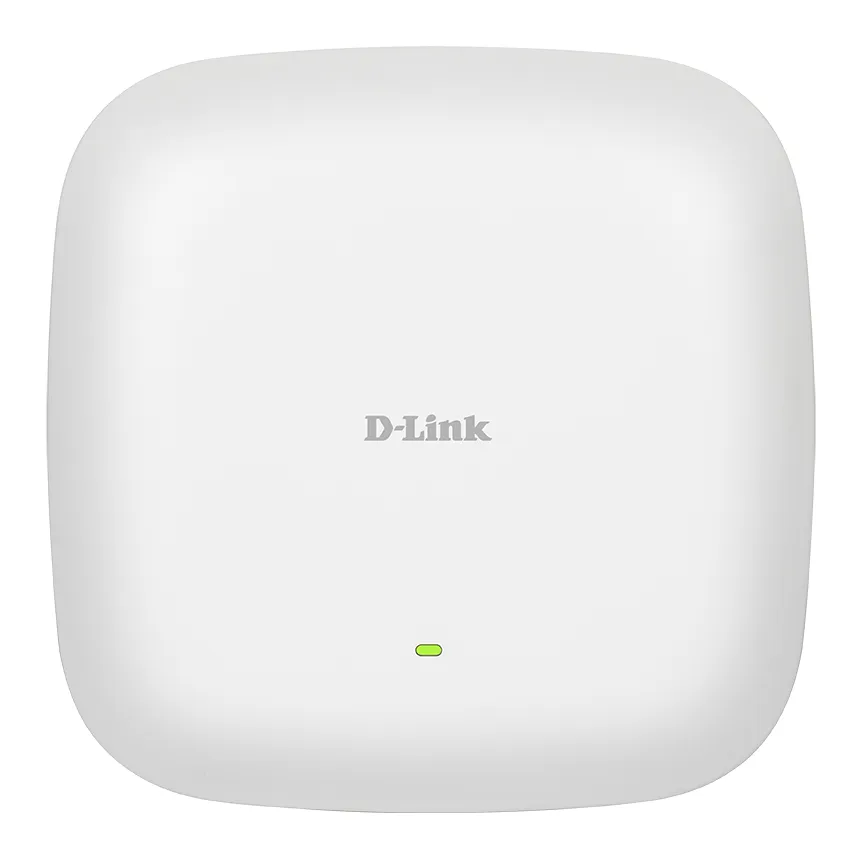

D-Link DAP-X2850
Wi-Fi 6 Dual-Band PoE Access Point. High-performance 4x4 MIMO with a 2.5 Gigabit Uplink for bandwidth-heavy environments.
3.6 Gbps
Combined Speed
4x4
MIMO Architecture
2.5G
Multi-Gig Uplink
🚀 Next-Gen Wi-Fi 6 Performance
5 GHz Band
2402 Mbps
4x4 High Capacity
2.4 GHz Band
1147 Mbps
IoT & Legacy Coverage
💻 Nuclias Connect
- ✓ Free-to-download software management
- ✓ Dedicated App for on-the-go control
- ✓ Band-steering & Airtime Fairness
- ✓ Centralized network reporting
🔌 Hardware & IoT
- ✓ 2.5 Gigabit Uplink: Removes bottlenecks
- ✓ 4x4 MU-MIMO: Handles high density
- ✓ PoE Support: Flexible ceiling/wall mount
- ✓ Made for IoT (Internet of Things)
Model: DAP-X2850 | Throughput: AX3600 (1200+2400 Mbps) | Port: 2.5 GbE
Technical Datasheet
DAP-X2850 Specifications
Detailed technical breakdown for the AX3600 Wi-Fi 6 Dual-Band PoE Access Point.
3.6 Gbps
Total Throughput
2.5G LAN
Multi-Gig Uplink
WPA3
Latest Encryption
📡 Wireless & Radio Specifications
| Standard | 802.11ax Wi-Fi 6 (Dual-band simultaneous) |
| Speeds |
5 GHz: 2402 Mbps 2.4 GHz: 1147 Mbps |
| Antennas |
Embedded Omni-Directional (3.5 dBi @ 2.4GHz | 5.5 dBi @ 5GHz) |
| Advanced Tech | MU-MIMO, SmartBeam, 802.11k/r Roaming, Airtime Fairness |
| Modes | Access Point (AP), WDS Bridge, WDS with AP, Wireless Client |
🔌 Interfaces & Hardware
- LAN 1: 1 x 2.5GBASE-T (High Speed)
- LAN 2: 1 x Gigabit Ethernet
- Power: Power-over-Ethernet (PoE) Supported
- Housing: Indoor Plastic Enclosure
- Console Port: Yes
⚙️ Management & Features
- Platform: Software Managed (Nuclias Connect)
- Access: WEB, CLI, Telnet, SSH, SNMP (v1/2c/3)
- Capacity: 16 SSIDs, Auto Channel, Load Balance
- Tools: Syslog, Traffic Balance, Wi-Fi Scheduler
🔒 Security & Network Protection
Encryption:
WPA3-Personal/Enterprise, WPA/WPA2-Personal/Enterprise, WEP 64/128 bit, TKIP/AES
WPA3-Personal/Enterprise, WPA/WPA2-Personal/Enterprise, WEP 64/128 bit, TKIP/AES
Access Control:
MAC Address Filtering, SSID Broadcast Disable, 802.1X Authentication
MAC Address Filtering, SSID Broadcast Disable, 802.1X Authentication
Network Safety:
Station Isolation, WLAN Partition, Rogue AP Detection, ARP Spoofing Prevention
Station Isolation, WLAN Partition, Rogue AP Detection, ARP Spoofing Prevention
Additional Features: IPv6 Support, IGMP Snooping, DHCP Server, NTP, L2 Roaming
