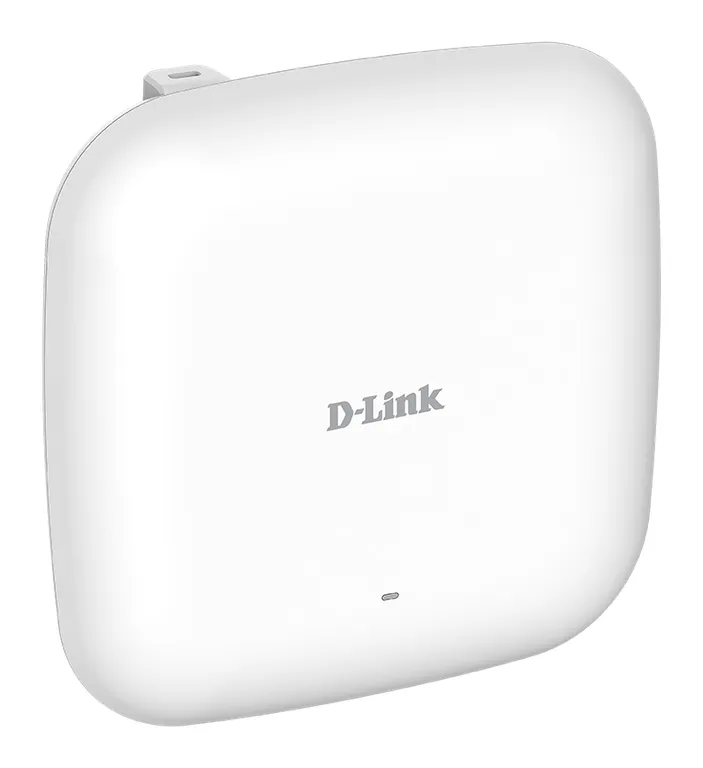

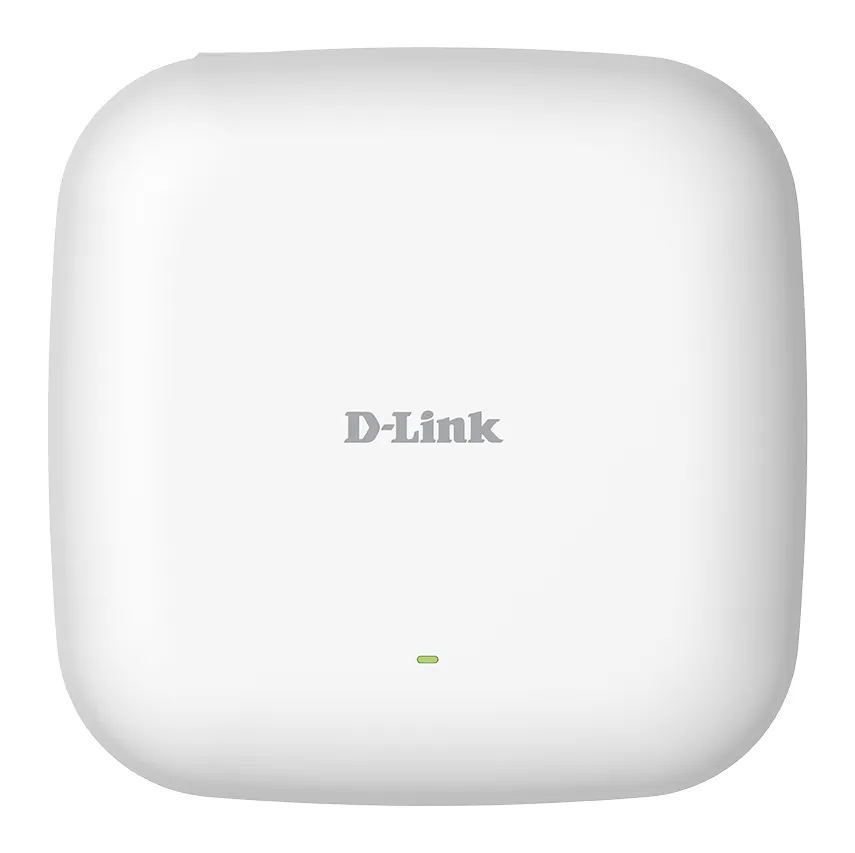

DAP-2662 Access Point

D‑Link DAP‑2662 – WiFi4EU‑Ready AC1200 Wave 2 Access Point

1.2 Gbps Dual‑Band • MU‑MIMO • PoE Powered • Nuclias Connect Managed

The D‑Link DAP‑2662 is a reliable, high‑performance AC1200 Wave 2 access point designed for SMBs, public Wi‑Fi deployments, hospitality, and education environments. With MU‑MIMO efficiency, SmartBeam optimization, PoE support, and WiFi4EU compliance, it delivers fast, stable, and centrally managed wireless connectivity through the free Nuclias Connect platform.

Key Features

• Dual‑Band AC1200 Wave 2 Wi‑Fi
• 5 GHz: 867 Mbps
• 2.4 GHz: 300 Mbps
• 1.2 Gbps combined throughput
• 2×2 MU‑MIMO for multi‑client efficiency
• WiFi4EU Ready — compliant for public Wi‑Fi projects
• SmartBeam & Band Steering for optimized performance
• PoE (802.3af) for flexible ceiling/wall installation
• Nuclias Connect Software Management (free to download)
• Ideal for SMBs, public venues, hospitality, and education

Wireless & Radio Specifications

Standard

• Wireless AC Wave 2 (dual‑band simultaneous)
• Backward compatible with 802.11a/b/g/n/ac

Wireless Speeds

• 5 GHz: 867 Mbps
• 2.4 GHz: 300 Mbps

Antenna System

• Embedded omni‑directional antennas

• 3 dBi @ 2.4 GHz
• 4 dBi @ 5 GHz

Advanced Technologies

• MU‑MIMO
• SmartBeam
• Band steering
• 802.11k/r fast roaming
• L2 roaming

Operating Modes

• Access Point (AP)
• WDS Bridge
• WDS with AP
• Wireless Client

Hardware & Physical

Interface

• 1 × Gigabit Ethernet LAN (PoE input)

Power

• PoE 802.3af
• Optional DC input

Housing

• Indoor plastic enclosure

Type

• Software‑managed AP (Nuclias Connect)

Advanced Features

• WiFi4EU compliant
• AP traffic load balancing
• Wi‑Fi scheduler
• Auto channel selection
• Up to 16 SSIDs
• Rogue AP detection
• Internal antennas for clean installation

Security

Encryption

• WPA/WPA2‑Personal/Enterprise
• WPA_WPA2_PSK over WDS
• WEP 64/128‑bit
• TKIP/AES

Access Control

• 802.1X authentication
• MAC address filtering
• SSID broadcast disable
• Station isolation
• WLAN partition
• ARP spoofing protection

Management

Platform

• Nuclias Connect (free software)

Interfaces

• Web UI
• CLI
• Telnet
• SSH
• SNMP v1/v2c/v3
• Syslog

Network Features

• DHCP server
• IPv6 support
• IGMP snooping

Use‑Case Clarity

Ideal For

• Public Wi‑Fi (WiFi4EU projects)
• Schools & universities
• Hotels & hospitality
• Retail stores
• SMB offices
• Indoor multi‑AP deployments

Why It Fits These Environments

• WiFi4EU compliance makes it perfect for public networks
• Wave 2 MU‑MIMO improves multi‑client performance
• PoE support simplifies installation
• Nuclias Connect provides centralized, license‑free management
• SmartBeam & band steering enhance user experience
