TP‑Link Deco X50‑5G V2 – AX3000 5G Whole Home Mesh Wi‑Fi 6 Gateway

TP‑Link Deco X50‑5G V2 – AX3000 5G Whole Home Mesh Wi‑Fi 6 Gateway

5G Sub‑6 Broadband • AX3000 Wi‑Fi 6 • 2.5Gbps Port • Mesh‑Ready

The Deco X50‑5G V2 is a powerful 5G Wi‑Fi 6 gateway designed for homes and villas that need ultra‑fast broadband without relying on traditional fiber or DSL. With support for Sub‑6 GHz 5G delivering download speeds up to 4.67 Gbps, this unit transforms your SIM card into a high‑speed home internet solution.

As part of the Deco Mesh ecosystem, the X50‑5G V2 can work alone or pair with other Deco units to create seamless whole‑home coverage. With AX3000 dual‑band Wi‑Fi 6, a 2.5Gbps multi‑gig port, and advanced HomeShield security, it’s built for streaming, gaming, smart homes, and modern family connectivity.

Key Features & Benefits

Ultra‑Fast 5G Broadband

• Supports Sub‑6 GHz 5G with download speeds up to 4.67 Gbps
• Ultra‑low latency (as low as 1 ms) for responsive gaming and video calls
• Ideal for homes without fiber or with unstable wired connections

AX3000 Dual‑Band Wi‑Fi 6 Performance

• 5 GHz: up to 2402 Mbps
• 2.4 GHz: up to 574 Mbps
• Perfect for 4K streaming, cloud gaming, and multi‑device households

2.5Gbps Multi‑Gig Port

• 1 × 2.5Gbps port + 2 × Gigabit ports
• WAN/LAN auto‑sensing for flexible deployment
• Supports wired backhaul for maximum mesh performance

Deco Mesh Compatibility

• Works with all Deco units to create a unified whole‑home mesh
• Eliminates dead zones across multi‑floor villas and large apartments
• Smooth roaming as you move through your home

Flexible Network Access

• Supports 5G, 4G LTE, and fixed‑line internet
• Automatically selects the best available connection

Advanced HomeShield Security

• Real‑time IoT protection
• Intrusion and DDoS prevention
• Malicious site blocking
• Parental controls with profiles, filters, and schedules

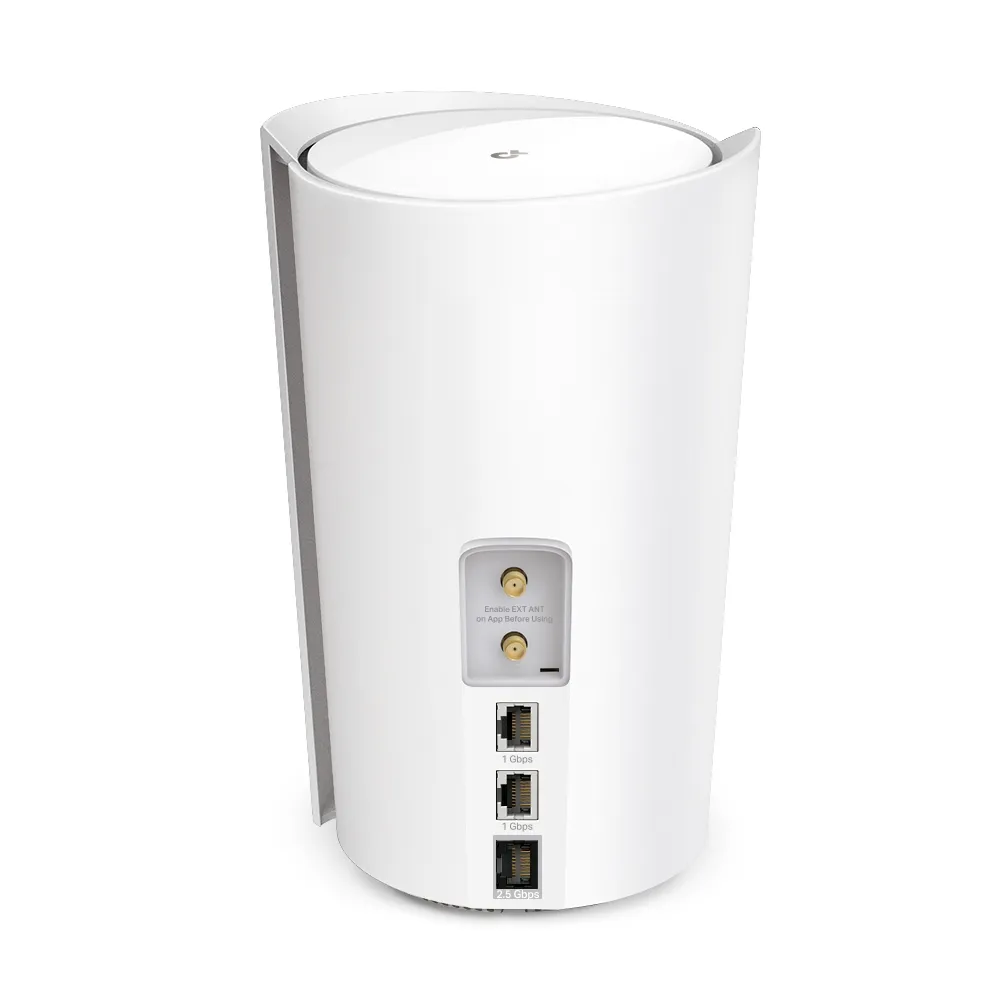

Optimized Antenna Design

• 8 × internal 5G/LTE antennas
• 3 × internal Wi‑Fi antennas
• 2 × external SMA‑F antenna ports for enhanced 5G reception

Technical Specifications

Wireless Performance

• Standards:
• Wi‑Fi 6 (802.11ax/ac/n/a – 5 GHz)
• Wi‑Fi 6 (802.11ax/n/b/g – 2.4 GHz)
• Speeds (AX3000):
• 5 GHz: 2402 Mbps
• 2.4 GHz: 574 Mbps
• Coverage:
• 1‑pack: 1–3 bedroom homes
• Antennas:

• 8 × internal 5G/LTE
• 3 × internal Wi‑Fi
• 2 × external SMA‑F antenna interfaces

Hardware

• Ports:
• 1 × 2.5Gbps
• 2 × Gigabit
• SIM Card: Nano‑SIM
• Dimensions: 210.5 × 130 × 123 mm

Mobile Network Compatibility

• 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78
• 4G FDD‑LTE: B1/B3/B5/B7/B8/B20/B28
• 4G TDD‑LTE: B38/B40/B41/B42/B43
• 3G: B1/B5/B8

Security & Software

• Encryption: WPA, WPA2, WPA3‑Personal
• HomeShield: IoT protection, intrusion prevention, DDoS defense
• WAN Types: Dynamic IP, Static IP, PPPoE, L2TP, PPTP
• Protocols: IPv4, IPv6
• QoS: HomeShield QoS, device prioritization

Network Services (Enabled by Default)

• Web management (HTTP/HTTPS)
• DNS (Port 53 TCP/UDP)
• DHCP server (Port 67 UDP)
• App management (Ports 22, 20001, 30001 TCP; 20002 UDP)

Transmission Power

• CE: ≤20 dBm (2.4 GHz), ≤23 dBm (5 GHz)

What’s in the Box

• 1 × Deco X50‑5G V2 unit
• 1 × RJ45 Ethernet cable
• 1 × Power adapter
• Quick Installation Guide
