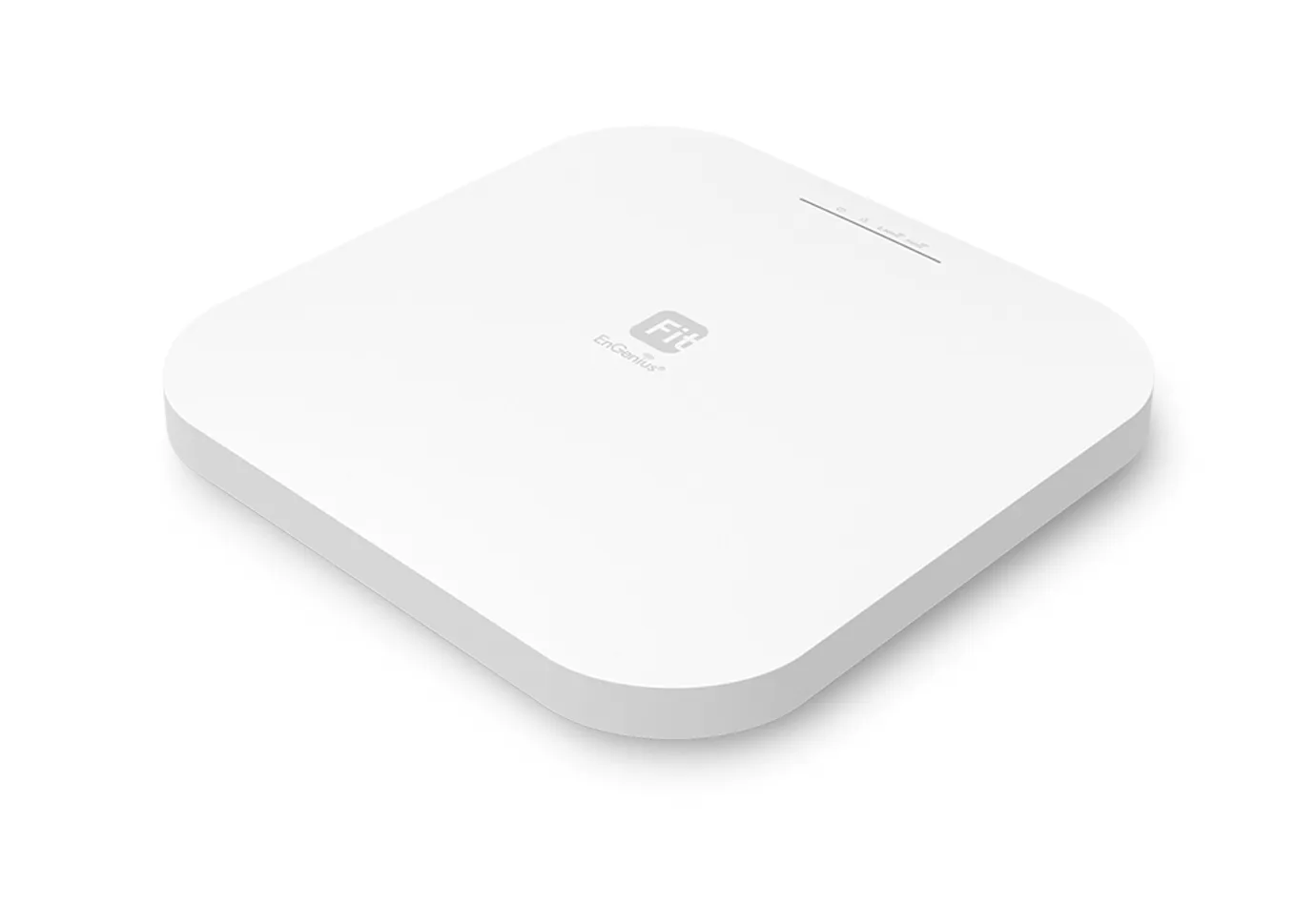

EWS377-FIT Engenius Access Point
About this product
EnGenius Fit Series
Fit6 4x4 Managed AP
High-Performance Indoor Access Point. 4x4 802.11ax technology with fee-free FitController management.
3.5 Gbps
Aggregate Speed
4x4
High-Density Antenna
2.5 GE
PoE+ Uplink Port
🚀 Ultimate Wi-Fi 6 Throughput
5 GHz Band
2,400 Mbps
4x4 Performance
2.4 GHz Band
1,148 Mbps
Extended Range
📱 Intelligent Management
- ✓ Managed via FitController
- ✓ No Subscription Fees
- ✓ Local & Remote Management
- ✓ Flexible Modes: AP, STA, Mesh
🔒 Hardware & Security
- ✓ Antenna: 5 dBi Integrated 4x4
- ✓ Port: 2.5 GE PoE+ for High Speed
- ✓ WPA3 & WPA2-AES Encryption
- ✓ Backward compatible (11ac/a/b/g/n)
Architecture: Dual Concurrent 802.11ax 4x4 | Deployment: Wall/Ceiling Mount
Technical Datasheet
Fit6 4x4 Specifications
Detailed technical breakdown for the EWS377-FIT Managed Indoor Access Point.
3.5 Gbps
Total Throughput
4x4:4
MIMO Architecture
2.5 GE
PoE+ Port
📡 Wireless & Radio Specifications
| Standards | IEEE 802.11ax (Wi-Fi 6) on 2.4 & 5 GHz Backward compatible with 802.11a/b/g/n/ac |
| Frequencies |
2.4 GHz: 2400 ~ 2482 MHz 5 GHz: 5150 ~ 5850 MHz |
| Max Data Rates (802.11ax) |
5 GHz: 2,400 Mbps (HE80) 2.4 GHz: 1,148 Mbps (HE40) |
| MIMO & Chains | 4 × 4:4 (SU-MIMO & MU-MIMO supported on both bands) |
| Antennas |
4 x 2.4 GHz (5 dBi) 4 x 5 GHz (6 dBi) Integrated Omni-Directional |
| Tech Supported | OFDMA, 1024-QAM, BPSK/QPSK/16/64/256-QAM |
🔌 Hardware & Power
-
Ethernet Ports:
1 x 10/100/1000/2500 BASE-T (PoE+ Input) -
Power Source:
PoE 802.3at (PoE+)
DC Input: 12V - Max Consumption: 19.5 W
- Interfaces: Reset Button, Multi-color LED
⚙️ Management & Features
- Deployment: Stand-Alone, FitXpress, FitController
- Capacity: 128 Concurrent Users Per Radio
- Modes: AP, AP Mesh, Mesh
- Transmit Power: Up to 23 dBm (2.4/5 GHz)
📏 Physical & Environmental
Dimensions:
205 x 205 x 33 mm
205 x 205 x 33 mm
Weight:
N/A (Derived from similar: ~570g)
N/A (Derived from similar: ~570g)
Temperature:
Op: 0ºC~40ºC (32ºF~104ºF)
Op: 0ºC~40ºC (32ºF~104ºF)
Humidity:
90% or less (non-condensing)
90% or less (non-condensing)
Regulatory Compliance: FCC, CE, IC, UKCA
Package Includes: EWS377-FIT AP, Ceiling Mount Bases (9/16” & 15/16”), Screw Kit, Product Card.
