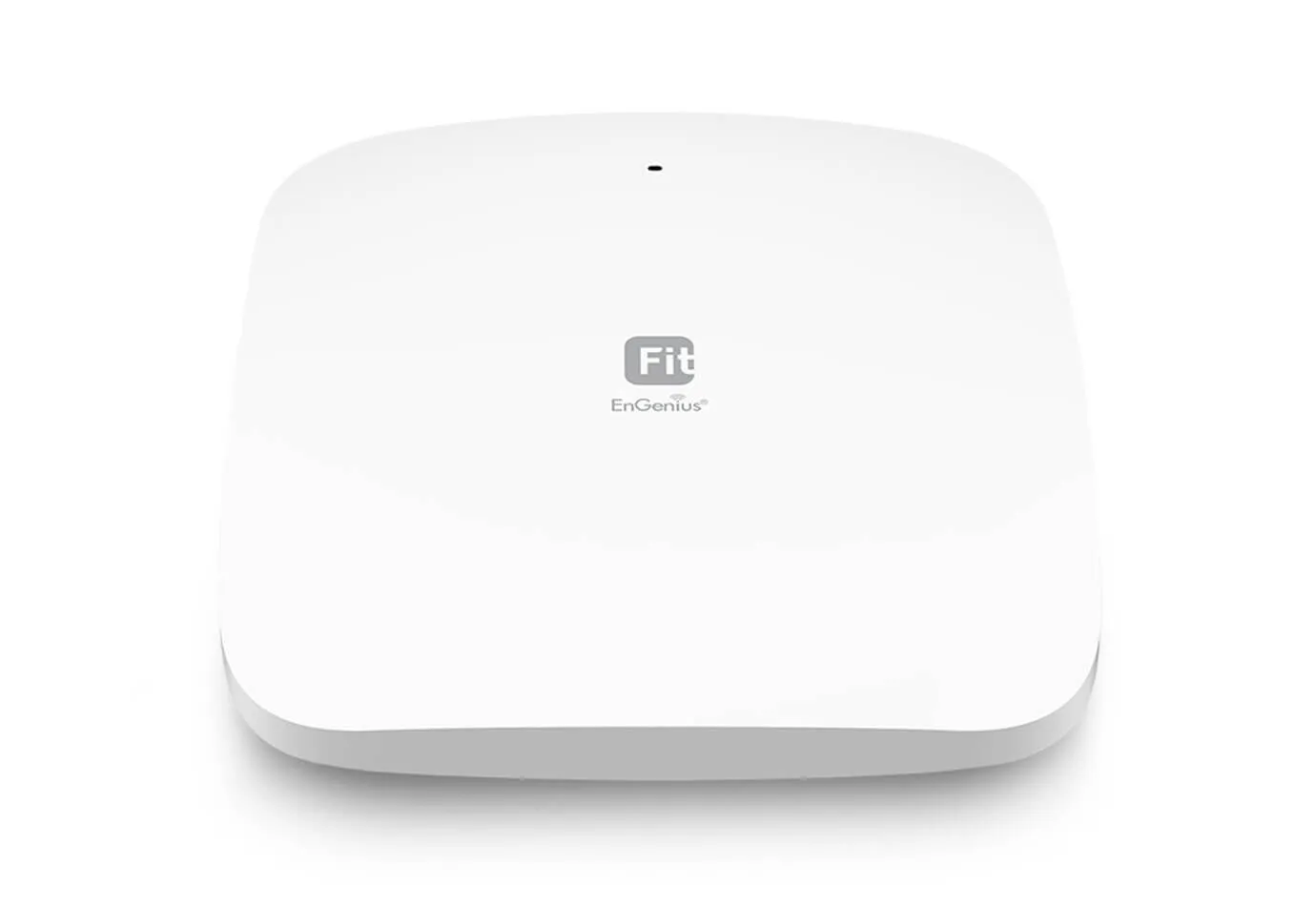

EnGenius EWS356‑FIT – Fit6 2×2 Lite Managed Wi‑Fi 6 Access Point
3.0 Gbps Wi‑Fi 6 • Qualcomm® Powered • DFS Support • FitController Managed
The EnGenius EWS356‑FIT is a high‑efficiency, budget‑friendly Wi‑Fi 6 access point designed for SMBs, retail stores, clinics, and high‑density home environments. Powered by a Qualcomm® chipset and managed through the subscription‑free FitController platform, it delivers fast, secure, and reliable wireless connectivity with DFS support for cleaner 5 GHz operation.
Key Features
• Dual‑Band Wi‑Fi 6 (AX3000)
• 5 GHz: 2,400 Mbps
• 2.4 GHz: 574 Mbps
• Up to 3.0 Gbps aggregate throughput
• Qualcomm® Chipset for superior stability and performance
• DFS Support for access to cleaner 5 GHz channels
• FitController Management — zero subscription fees
• Flexible Modes: AP, STA, Mesh
• 1× Gigabit Ethernet (PoE) for easy installation up to 100m
• Enterprise‑Grade Security: WPA3/WPA2‑AES
• Ideal for SMBs, retail, hospitality, and modern home networks
Wireless & Radio Specifications
Standards
• IEEE 802.11ax (Wi‑Fi 6)
• Backward compatible with 802.11a/b/g/n/ac
Frequencies
• 2.4 GHz: 2400–2482 MHz
• 5 GHz: 5150–5850 MHz (DFS supported)
Max Data Rates
• 5 GHz: 2,400 Mbps (HE160)
• 2.4 GHz: 574 Mbps (HE40)
MIMO
• 2 × 2:2 SU‑MIMO & MU‑MIMO
Antennas
• 2 × 2.4 GHz (6 dBi)
• 2 × 5 GHz (7 dBi)
• Integrated omni‑directional
Advanced Technologies
• OFDMA
• 1024‑QAM
• BPSK/QPSK/16/64/256‑QAM
• Target Wake Time (TWT)
• BSS Coloring
Hardware & Power
Ethernet Ports
• 1 × 10/100/1000 BASE‑T (Gigabit)
Power Options
• PoE 802.3af (Standard PoE)
• 12V DC input
Max Power Consumption
• 10.7W (energy‑efficient design)
Interfaces
• Reset button
• Multi‑color LED
Management & Features
Deployment Options
• Stand‑Alone
• FitXpress
• FitController
Operating Modes
• AP
• AP Mesh
• Mesh
• STA mode
Capacity
• 128 concurrent users per radio
Performance Features
• Client balancing
• Auto channel selection
• Transmit power up to 21 dBm
Physical & Environmental
Dimensions
• 160 × 160 × 30 mm
Weight
• 380 g
Operating Conditions
• Temperature: 0°C to 40°C
• Humidity: ≤ 90% (non‑condensing)
Certifications
• FCC
• CE
• IC
• UKCA
Package Includes
• EWS356‑FIT Access Point
• Ceiling mount bases (9/16” & 15/16”)
• Screw kit
• Product card
Use‑Case Clarity
Ideal For
• Small & medium businesses
• Retail stores
• Clinics & offices
• High‑density home networks
• Multi‑AP mesh deployments
Why It Fits These Environments
• Wi‑Fi 6 performance boosts speed and efficiency
• DFS support ensures cleaner, interference‑free 5 GHz operation
• FitController management provides full control with zero recurring cost
• PoE support simplifies installation
• Strong WPA3 security protects sensitive business data
