ECW230S Engenius Access Point
About this product
4x4 Wi-Fi 6 + Security

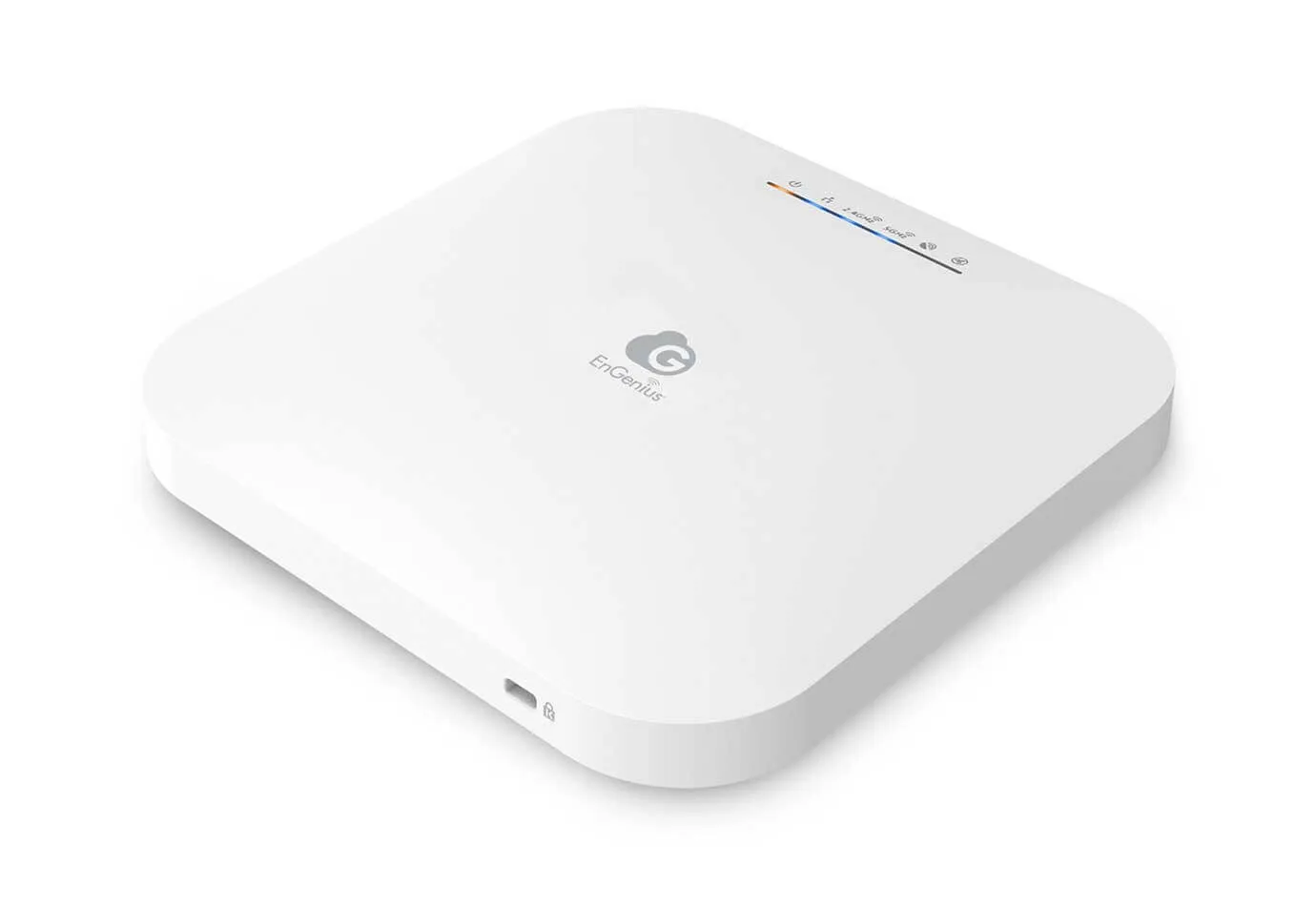

EnGenius ECW230 S
Cloud Managed 4x4 Indoor Access Point with dedicated WIDS/WIPS Security Radio & BLE. The ultimate balance of speed and protection.
3.6 Gbps
Total Throughput
WIDS/WIPS
Security Radio
4x4:4
MIMO Architecture
2.5 GbE
Multi-Gig Port
🚀 Supercharged 4x4 Performance
5 GHz Band
2,400 Mbps
Ultra-Fast 4x4
2.4 GHz Band
1,200 Mbps
High Capacity
🛡️ Advanced Security & Radio
- ✓ WIDS/WIPS Radio: Continuous wireless security detection.
- ✓ BLE Scanning: Bluetooth Low Energy client list detection.
- ✓ WPA3 & WPA2-AES Authentication
- ✓ Real-time threat protection
☁️ Cloud & Hardware
- ✓ 2.5 GbE Port: Greater throughput support
- ✓ Flexible Power: 802.3at PoE & 48V DC
- ✓ Unlimited AP Cloud Management
- ✓ Self-healing Mesh & Quick Scan
Architecture: 4x4 Dual Concurrent Wi-Fi 6 | Highlight: Security Scanning Radio
Technical Datasheet
ECW230 S Specifications
Detailed technical breakdown for the Cloud Managed Wi-Fi 6 Security Access Point (4x4).
3.6 Gbps
Total Throughput
Yes
Scanning Radio
2.5 GE
PoE+ Uplink
📡 Wireless & Radio Specifications
| Standards | IEEE 802.11ax (Wi-Fi 6) on 2.4 & 5 GHz Backward compatible with 802.11a/b/g/n/ac |
| Frequencies |
2.4 GHz: 2400 ~ 2482 MHz 5 GHz: 5150 ~ 5850 MHz |
| Max Data Rates (802.11ax) |
5 GHz: 2,400 Mbps (HE80) 2.4 GHz: 1,148 Mbps (HE40) |
| MIMO & Chains | 4 × 4:4 (SU-MIMO & MU-MIMO supported on both bands) |
| Antennas |
4 x 2.4 GHz (5 dBi) 4 x 5 GHz (6 dBi) Integrated Omni-Directional |
| Tech Supported | OFDMA, 1024-QAM, Target Wake Time (TWT), BSS Coloring |
🛡️ Security & Scanning
-
Dedicated Scanning Radio: YES
(For WIPS/WIDS & Spectrum Analysis) - AirGuard (WIPS/WIDS): Yes
- Zero-Wait DFS: Yes
- BLE (Bluetooth): Integrated
- LEDs: Power, LAN, 2.4/5G, Scanning, BLE
🔌 Hardware & Power
-
Ethernet Ports:
1 x 2.5GE Port (PoE+ Input) -
Power Source:
PoE 802.3at
DC Input: 12VDC / 2A - Max Consumption: 19.5 W
- Interfaces: Reset Button, Multi-color LED, DC Jack
📏 Physical & Environmental
Dimensions:
205 x 205 x 33.2 mm
205 x 205 x 33.2 mm
Weight:
607g
607g
Temperature:
Op: 0ºC~40ºC (32ºF~104ºF)
Op: 0ºC~40ºC (32ºF~104ºF)
Humidity:
90% or less (non-condensing)
90% or less (non-condensing)
Regulatory Compliance: FCC, CE, IC
Package Includes: ECW230S AP, Ceiling Mount Bases (9/16” & 15/16”), Screw Kit, Product Card.
