ECW230 Engenius Access Point
About this product
Cloud Managed 4x4

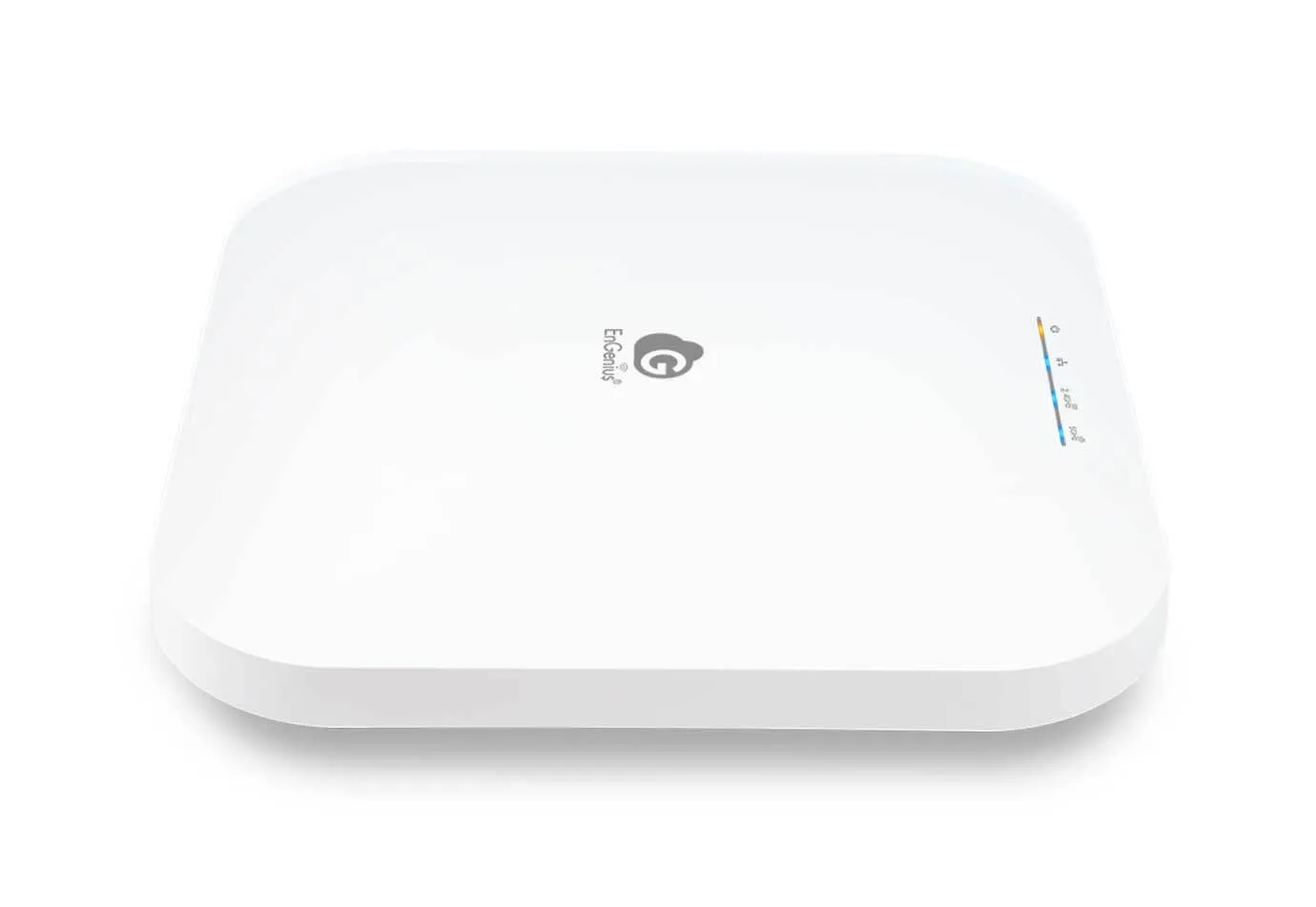

EnGenius ECW230
4x4 Indoor Access Point. Supercharged 2.5 GbE performance managed simply from the cloud.
3.6 Gbps
Aggregate Speed
4x4:4
MIMO Architecture
2.5 GbE
PoE+ Uplink
🚀 Ultimate Dual-Band Performance
5 GHz Band
2,400 Mbps
High-Speed 4x4
2.4 GHz Band
1,200 Mbps
High Capacity
☁️ Management & Smart Mesh
- ✓ Unlimited AP management via Cloud App
- ✓ Quick-scan device registration
- ✓ Remote monitoring & troubleshooting
- ✓ Self-healing Mesh Wireless Support
🔒 Hardware & Security
- ✓ 2.5 GbE Port: Greater throughput
- ✓ Supports 802.3at & 48V PoE input
- ✓ Flexible installation (100m+)
- ✓ WPA3 & WPA2-AES Authentication
Architecture: Dual Concurrent 802.11ax 4x4 | Capacity: High Density Environments
Technical Datasheet
ECW230 Specifications
Detailed technical breakdown for the Cloud Managed 4x4 Wi-Fi 6 Access Point.
3.6 Gbps
Total Throughput
4x4:4
MIMO Architecture
2.5 GE
PoE+ Port
📡 Wireless & Radio Specifications
| Standards | IEEE 802.11ax (Wi-Fi 6) on 2.4 & 5 GHz Backward compatible with 802.11a/b/g/n/ac |
| Frequencies |
2.4 GHz: 2400 ~ 2482 MHz 5 GHz: 5150 ~ 5850 MHz |
| Max Data Rates (802.11ax) |
5 GHz: 2,400 Mbps (HE80) 2.4 GHz: 1,148 Mbps (HE40) |
| MIMO & Chains | 4 × 4:4 (SU-MIMO & MU-MIMO supported on both bands) |
| Antennas |
4 x 2.4 GHz (5 dBi) 4 x 5 GHz (6 dBi) Integrated Omni-Directional |
| Tech Supported | OFDMA, 1024-QAM, BPSK/QPSK/16/64/256-QAM |
🔌 Hardware & Power
-
Ethernet Ports:
1 x 2.5GE Port (PoE+ Input) -
Power Source:
PoE 802.3at (PoE+)
DC Input: 12VDC / 2A - Max Consumption: 19.5 W
- Interfaces: Reset Button, Multi-color LED, DC Jack
⚙️ Management & Features
- Modes: Managed AP, AP Mesh, Mesh
- Capacity: 512 Concurrent Users Per Radio
- Smart Tech: Client Balancing, Auto Channel Selection
- Transmit Power: Up to 23 dBm (2.4/5 GHz)
📏 Physical & Environmental
Dimensions:
205 x 205 x 33.2 mm
205 x 205 x 33.2 mm
Weight:
607g
607g
Temperature:
Op: 0ºC~40ºC (32ºF~104ºF)
Op: 0ºC~40ºC (32ºF~104ºF)
Humidity:
90% or less (non-condensing)
90% or less (non-condensing)
Regulatory Compliance: FCC, CE, IC
Package Includes: ECW230 AP, Ceiling Mount Bases (9/16” & 15/16”), Screw Kit, Product Card.
