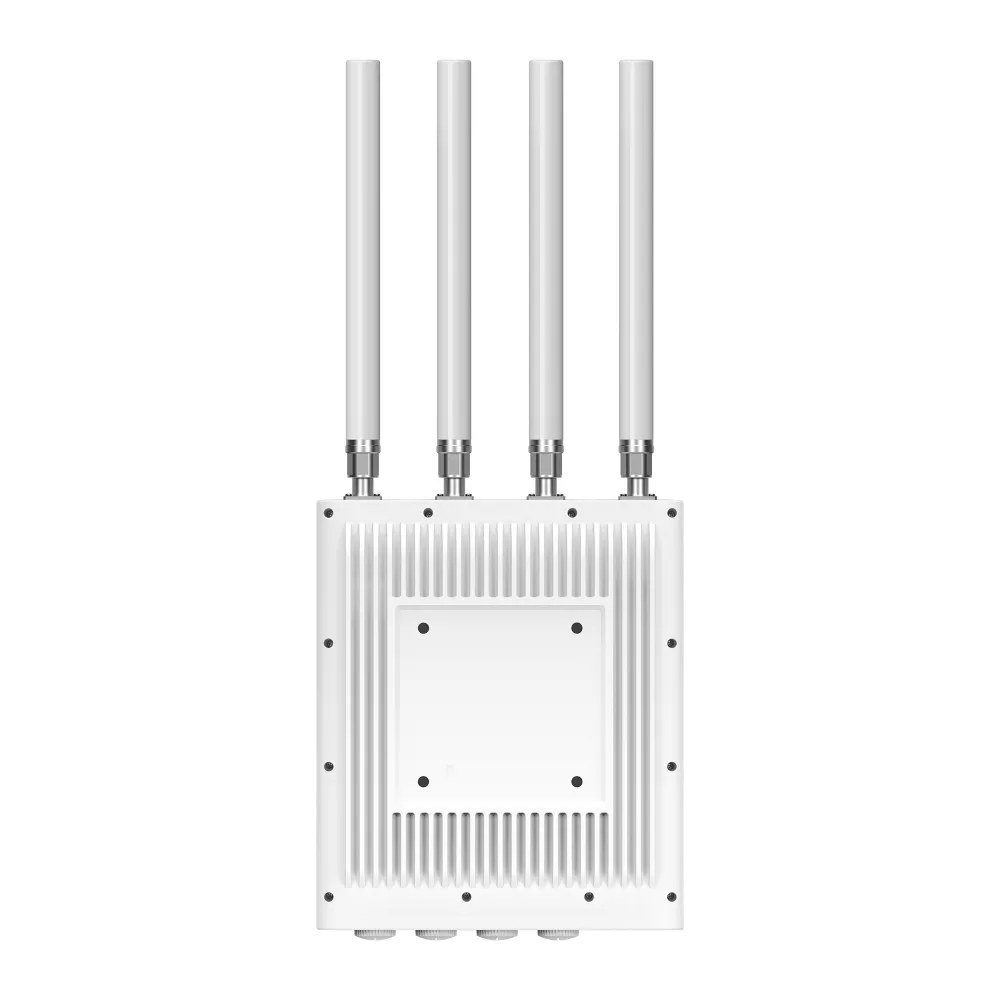

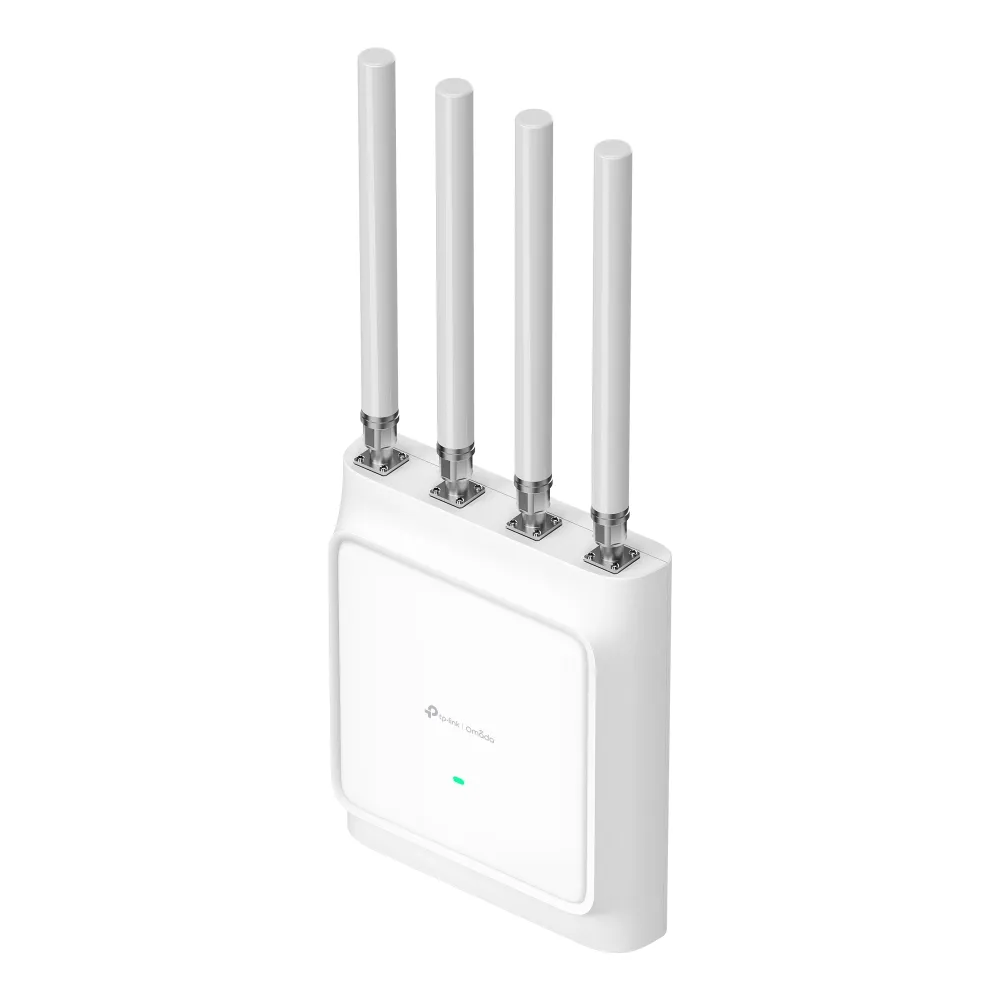

EAP668 TP-link Access Point
Qty
About this product
High-Density Outdoor Wi-Fi 6
EAP668-Outdoor HD
AX3600 Indoor/Outdoor Access Point. IP68 Rated with 10G SFP+ uplink and support for 1,000+ clients.
3.6 Gbps
Wi-Fi 6 Speed
1000+
Concurrent Clients
IP68
Weatherproof
🔌 Advanced Port Connectivity
Fiber Ready
10G SFP+ Slot
Ultra-Fast Backhaul
High-Speed Input
2.5G PoE-In
PoE++/PoE+ Powered
Passthrough
Gigabit PoE-Out
Power CCTV/IP Phone
🏗️ Industrial Durability
- ✓ IP68 Rated: Full water & dust protection.
- ✓ Lightning Protection: 6 kV surge protection.
- ✓ Temp Range: -40 °C to +70 °C operation.
- ✓ Antennas: 4x High-Gain Detachable Omni.
⚡ Wi-Fi 6 Performance
- ✓ High Density: Supports 1,024 concurrent devices.
- ✓ Smart Mesh: Omada Mesh & Seamless Roaming.
- ✓ OFDMA & MU-MIMO: 4x4 DL/UL for efficiency.
- ✓ Cloud Mgmt: Centralized via Omada SDN.
📊 Technical Specifications
Power
- Input: 802.3at/bt PoE (25.4W Max)
- Output: 802.3at PoE (Requires bt input)
- Consumption: 25.4W (US/EU)
Wireless
- Speed: 2402 Mbps (5G) + 1148 Mbps (2.4G)
- Security: WPA3, Guest, Radius, VLAN
- Functions: 1024-QAM, Airtime Fairness
Physical
- Size: 240 × 80 × 312 mm
- Mounting: Wall / Pole (Kits Included)
- Antennas: 4x Detachable Omni (N-Type)
Package Includes: EAP668-Outdoor HD, 4x Antennas, Mounting/Waterproof Kits, Installation Guide
