EAP653 TP-link Access Point
EAP653 TP-link Access Point
EAP653 TP-link Access Point
1 / 3

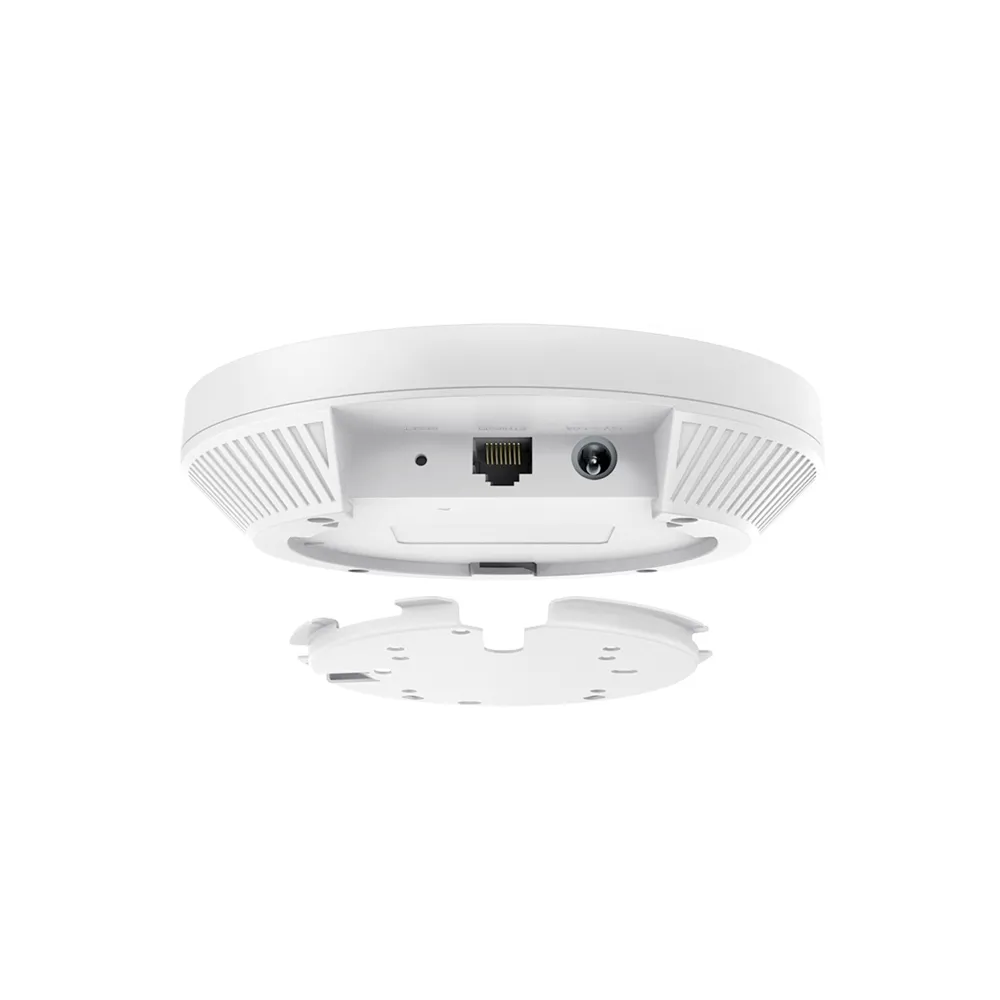

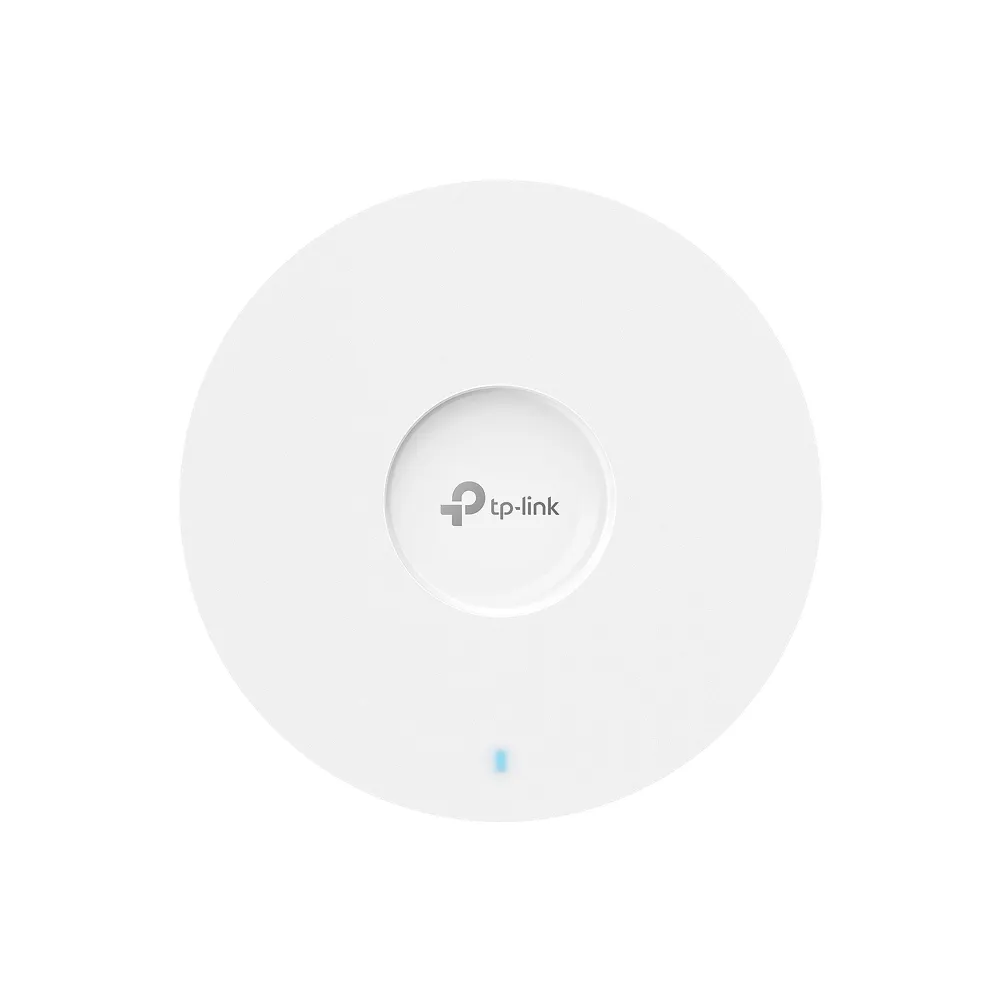

EAP653 TP-link Access Point

About this product

Ultra-Slim Wi-Fi 6

TP-Link EAP653

AX3000 Ceiling Mount Access Point. Elegant 33.6mm thin design with blazing fast speeds and Omada Mesh integration.

3.0 Gbps
AX3000 Speed
33.6 mm
Ultra-Slim Design
160 MHz
Wide Channel

🚀 Dual-Band Performance

5 GHz Band
2,402 Mbps
High Efficiency
2.4 GHz Band
574 Mbps
Standard Devices

âš¡ Smart & Sleek

  • ✓ Omada Mesh: Wireless flexibility & range.
  • ✓ Seamless Roaming: No drops while moving.
  • ✓ Ultra-Slim: Only 160mm wide x 33.6mm thick.
  • ✓ 160 MHz Channel: Double data capacity.

🔌 Hardware & Power

  • ✓ 1x Gigabit Port: High-speed wired link.
  • ✓ Power Supply: 802.3at PoE+ or 12V DC.
  • ✓ Low Power: Max 13.5W (EU).
  • ✓ Mounting: Ceiling/Wall/Junction Box.

📊 Technical Specifications

Wireless Tech

  • Features: 1024-QAM, OFDMA, MU-MIMO
  • Optimization: Band Steering, Load Balance
  • Security: WPA3, Guest Network, VLAN
  • Antenna: 2x4dBi (2.4G), 2x5dBi (5G)

Capacity

  • Concurrent Clients: 250+
  • SSIDs: 16 (8 per band)
  • Coverage: ~140m² (1500 ft²)
  • Functions: Airtime Fairness, Beamforming

Management

  • Platform: Omada Cloud/Hardware/Software
  • Zero-Touch: Supported via Cloud
  • Access: App, Web UI, SSH, SNMP
  • Alerts: Email, LED Control

Package Includes: EAP653, Mounting Kits, Guide | Note: Power Adapter Sold Separately
