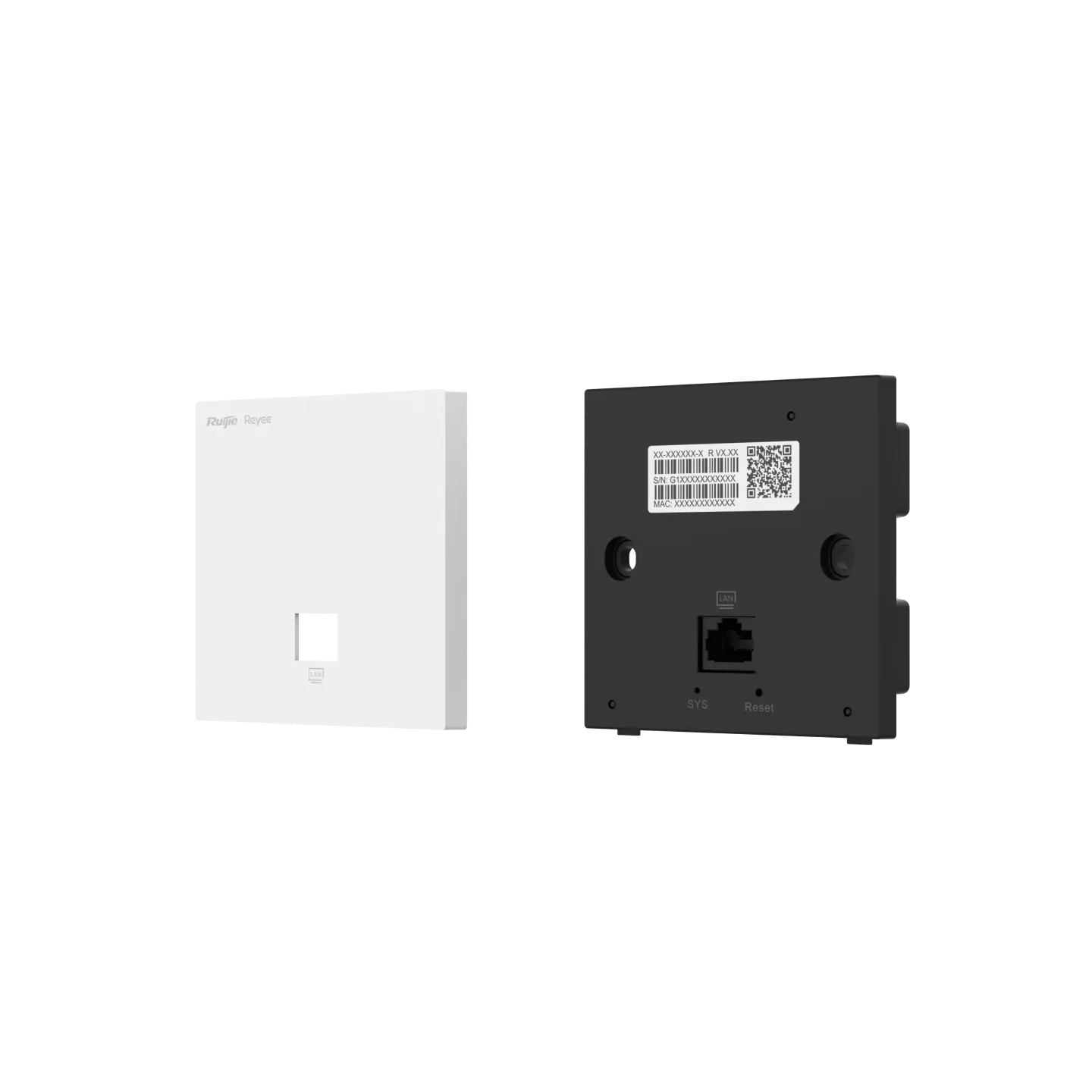

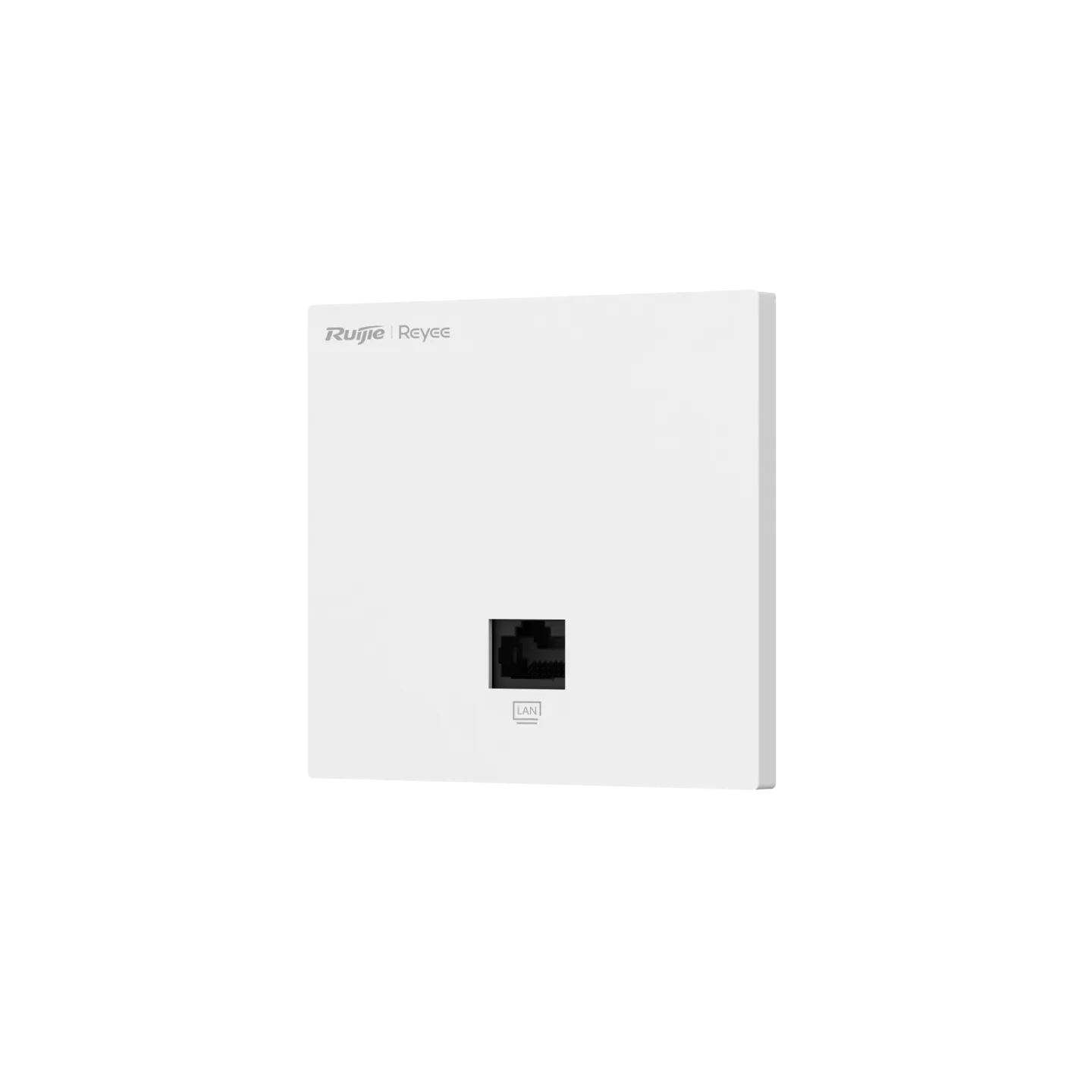

RG-RAP1201 Wall-Mounted Access Point
About this product
Full Gigabit Wall AP
RG-RAP1201
Reyee Wi-Fi 5 AC1300 Wall-mounted Access Point. Upgraded Full GE Ports for Hotels, Homes, and Offices.
1267 Mbps
Wireless Speed
2x GE
Full Gigabit Ports
Wave 2
MU-MIMO Tech
✨ Highlight Features
🚀 Upgrade Full GE
Two 10/100/1000Base-T ports for high-speed wired connections.
🌍 Easy Installation
Worldwide compatible standard wall plate design.
☁️ Cloud Managed
Ruijie Cloud Management for remote monitoring and config.
📡 Wi-Fi Specifications
- Max Rate: 1266 Mbps (Total)
- 5 GHz: 866 Mbps (2x2 MIMO)
- 2.4 GHz: 400 Mbps (2x2 MIMO)
- Clients: 110 Max
- Antenna: Integrated Omnidirectional
🔌 Interfaces & Power
- Ports: 2 x 10/100/1000BASE-T
- Power Supply: PoE / PoE+
- Consumption: Max 9 W
- Mounting: Standard Junction Box (86mm)
📏 Physical & Environmental
Dimensions:
86 x 42.4 x 86 mm
86 x 42.4 x 86 mm
Weight:
≤ 0.16 kg
≤ 0.16 kg
Temperature:
0°C to 40°C
0°C to 40°C
IP Rating:
IP41 (Indoor)
IP41 (Indoor)
Management: Supports up to 150 devices managed | IP Service: IPv6 Supported
