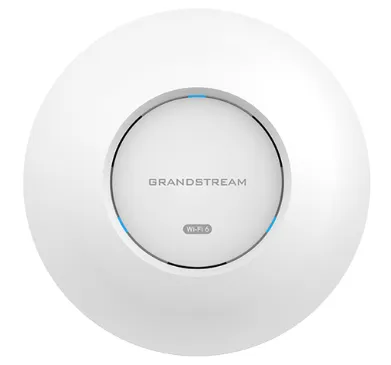

GWN7660E Grandstream AP
About this product
Enterprise-Grade Wi-Fi 6 AP
GWN7660E
Allows businesses to build next-generation Wi-Fi networks for high-density environments. Features XTRA Range technology.
3 Gbps
Wireless Throughput
175m
Coverage Range
256
Concurrent Clients
Key Features
📶 Technology
XTRA Range
Dual-band 2x2:2 (2.4G) and 3x3:2 (5G) MU-MIMO with OFDMA and XTRA Range tech.
⚡ Efficiency
Power & QoS
Self-power adaptation (PoE/PoE+) and Advanced QoS for real-time applications.
🛡️ Security
Anti-Hacking
Secure boot, digital signatures, unique certificates, and critical data lockdown.
⚙️ Management
Scalable Control
Embedded controller (50 APs), GDMS (Unlimited), or GWN Manager software.
Technical Specifications
Wireless Specifications
| 2.4G Throughput | 573.5Mbps (2x2:2 MU-MIMO) |
| 5G Throughput | 2.4Gbps (3x3:2 MU-MIMO) |
| Standards | IEEE 802.11 a/b/g/n/ac/ax |
| SSIDs | 32 SSIDs total (16 per radio) |
Hardware & Interfaces
| Interfaces | 1x autosensing 10/100/1000 Base-T Ethernet Port |
| PoE/PoE+ | Supports 802.3af/at; Max Consumption: 12.95W |
| Antennas | 5 individual internal antennas |
Physical & Security
Dimensions:
180.4mm x 180.4mm x 40.8mm
Mounting:
Indoor wall mount or ceiling mount
Security Protocols:
WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), WPA3, anti-hacking secure boot, critical data/control lockdown via digital signatures.
