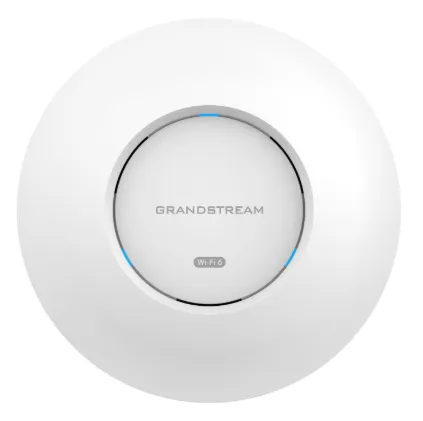

GWN7660 Grandstream AP

GWN7660 – Enterprise‑Grade Indoor Wi‑Fi 6 Access Point

High‑Density AX1800 Connectivity for Modern Business Environments

A powerful 802.11ax Wi‑Fi 6 access point designed for high‑density enterprise deployments. The GWN7660 delivers strong dual‑band performance, enterprise‑grade security, and flexible management options—ideal for offices, hotels, schools, retail, and commercial spaces.

Description

The GWN7660 provides 1.77 Gbps wireless throughput, long‑range coverage up to 175 meters, and supports 500+ concurrent clients. With 2×2:2 MU‑MIMO, OFDMA, PoE/PoE+ support, and advanced QoS, it ensures reliable performance for real‑time applications. Enterprise‑grade security and an embedded controller for managing up to 50 APs make it a scalable and secure solution for next‑generation Wi‑Fi networks.

Configuration

Wireless Performance

• WiFi Standard: IEEE 802.11a/b/g/n/ac/ax (Wi‑Fi 6)
• Dual‑Band Throughput:
• 2.4 GHz: 573.5 Mbps (2×2:2 MIMO)
• 5 GHz: 1201 Mbps (2×2:2 MU‑MIMO)
• Aggregate Wireless Speed: 1.77 Gbps
• Coverage Range: Up to 175 meters
• Concurrent Clients: 500+
• Technologies:

• DL/UL OFDMA
• MU‑MIMO
• Beamforming
• Advanced QoS for low‑latency applications

Key Features

• 1.77 Gbps wireless throughput
• Dual‑band 2×2:2 MU‑MIMO with OFDMA
• Self‑power adaptation with PoE/PoE+ auto‑detection
• Anti‑hacking secure boot & digital signature protection
• Critical data/control lockdown
• Unique per‑device security certificates
• Embedded controller for managing up to 50 local APs
• Full support for GDMS & GWN Manager

Hardware

• Network Interfaces:
• 2 × 1G Ethernet (10/100/1000 Base‑T)
• PoE Support:
• 802.3af / 802.3at
• Max Power Consumption: 9W
• Antennas:
• 2 internal dual‑band antennas
• Dimensions: 180.4 × 180.4 × 40.8 mm
• Mounting: Indoor wall or ceiling (kits included)

Security

• WPA/WPA2‑PSK
• WPA/WPA2‑Enterprise
• WPA3
• WEP
• Secure boot
• Digital signatures
• Critical data/control lockdown

Management

• Embedded controller (up to 50 APs)
• GDMS cloud management
• GWN Manager (on‑premise)
• Web UI & mobile app
• Advanced analytics, provisioning & monitoring

Use Cases

Ideal For

• Enterprise offices & multi‑floor buildings
• Hotels, hospitality floors & serviced apartments
• Retail stores, malls & commercial spaces
• Schools, universities & training centers
• Healthcare facilities & clinics
• High‑density indoor environments

Why It Works Well

• Handles 500+ clients with stable performance
• Dual‑band Wi‑Fi 6 ensures fast, efficient connectivity
• Enterprise‑grade security for safe deployments
• Flexible management options for any scale
• Long‑range coverage up to 175 meters
