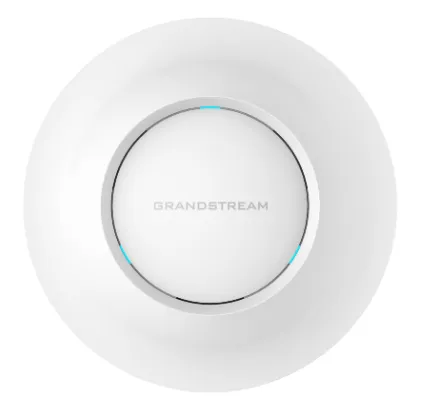

GWN7630 Grandstream AP

GWN7630 – Wave‑2 4×4:4 Wi‑Fi Access Point

High‑Performance 802.11ac Wave‑2 Connectivity for SMBs & High‑Density Offices

A powerful dual‑band Wave‑2 access point designed for small‑to‑medium businesses, high‑density offices, retail spaces, and commercial environments requiring strong throughput and reliable multi‑user performance.

Description

The GWN7630 delivers 2.33 Gbps aggregate wireless throughput and includes two Gigabit Ethernet ports for flexible network integration. Powered by 4×4:4 MU‑MIMO, OFDMA‑like scheduling, and enterprise‑grade security, it supports 200+ concurrent clients with stable performance. With PoE/PoE+ support, advanced QoS, and an embedded controller for managing up to 50 APs, it is a scalable and efficient solution for modern business networks.

Configuration

Wireless Performance

• WiFi Standard: IEEE 802.11a/b/g/n/ac (Wave‑2)
• Dual‑Band Throughput:
• 2.4 GHz: 600 Mbps (4×4:4 MIMO)
• 5 GHz: 1733 Mbps (4×4:4 MU‑MIMO)
• Aggregate Wireless Speed: 2.33 Gbps
• Coverage Range: Up to 175 meters
• Concurrent Clients: 200+
• Technologies:

• 4×4:4 MU‑MIMO
• Beamforming
• Airtime fairness
• Advanced QoS for low‑latency applications

Key Features

• 2.33 Gbps wireless throughput
• Dual‑band 4×4:4 MU‑MIMO
• Two Gigabit Ethernet ports
• Self‑power adaptation with PoE/PoE+ auto‑detection
• Anti‑hacking secure boot & digital signature protection
• Critical data/control lockdown
• Unique per‑device security certificates
• Embedded controller for managing up to 50 local APs
• Full support for GDMS & GWN Manager

Hardware

• Network Interfaces:
• 2 × 1G Ethernet (10/100/1000 Base‑T)
• PoE Support:
• 802.3af / 802.3at
• Max Power Consumption: 16.5W
• Antennas:
• 4 internal dual‑band antennas
• Dimensions: 205.3 × 205.3 × 45.9 mm
• Mounting: Indoor wall or ceiling (kits included)

Security

• WPA/WPA2‑PSK
• WPA/WPA2‑Enterprise
• WPA3
• WEP
• Secure boot
• Digital signatures
• Critical data/control lockdown

Management

• Embedded controller (up to 50 APs)
• GDMS cloud management
• GWN Manager (on‑premise)
• Web UI & mobile app
• Advanced analytics, provisioning & monitoring

Use Cases

Ideal For

• Small‑to‑medium enterprise offices
• High‑density workspaces & open offices
• Retail stores & commercial venues
• Schools, training centers & classrooms
• Hospitality floors & shared spaces
• Healthcare facilities & clinics

Why It Works Well

• Strong 4×4:4 MU‑MIMO performance for multi‑user environments
• Stable connectivity for 200+ clients
• Enterprise‑grade security ensures safe deployments
• Flexible management options for any scale
• Long‑range coverage up to 175 meters
