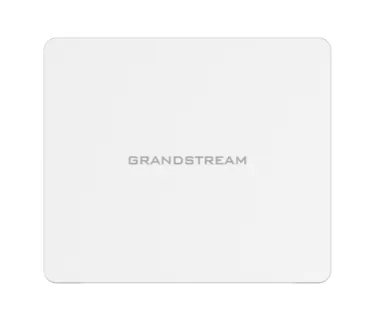

GWN7603 Grandstream AP
About this product
Wave-2 Wi-Fi Access Point
GWN7603
A versatile, compact access point featuring 4 Gigabit ports, including PSE output to power IP phones or other devices.
1.27 Gbps
Wireless Throughput
4 Ports
Gigabit Wireline
100+
Client Support
Key Features
🔌 Connectivity
PSE Power Output
2 ports with PSE can provide PoE to other devices (IP phones, cameras).
📶 Performance
Wave-2 Technology
Dual-band 2x2:2 MU-MIMO; 400 Mbps (2.4G) & 867Mbps (5G).
🛡️ Security
Anti-Hacking
Secure boot, digital signatures, unique certificates, and critical data lockdown.
⚡ Efficiency
Power Adaptation
Self-power adaptation upon auto-detection of PoE/PoE+.
Technical Specifications
Wireless Specifications
| 2.4G Throughput | 300Mbps (2x2:2 MU-MIMO); 400 Mbps (256-QAM) |
| 5G Throughput | 867Mbps (2x2:2 MU-MIMO) |
| Standards | IEEE 802.11 a/b/g/n/ac (Wave-2) |
| SSIDs | 16 SSIDs total (8 per radio) |
| Range | Up to 100 Meters |
Hardware & Power
| Interfaces |
1x 10/100/1000M Uplink (PoE Input) 2x 10/100/1000M Ethernet (PSE Output) 1x 10/100/1000M Ethernet |
| Power Support |
Input: PoE 802.3af/802.3at Consumption: 6.5W (Excl. PoE Output) |
| PSE Output | Max output per port: 12W |
Physical & Security
Dimensions:
135mm x 115mm x 30mm
Mounting:
Indoor wall mount
Security Protocols:
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, WPA3, anti-hacking secure boot, critical data/control lockdown, unique security certificate.
