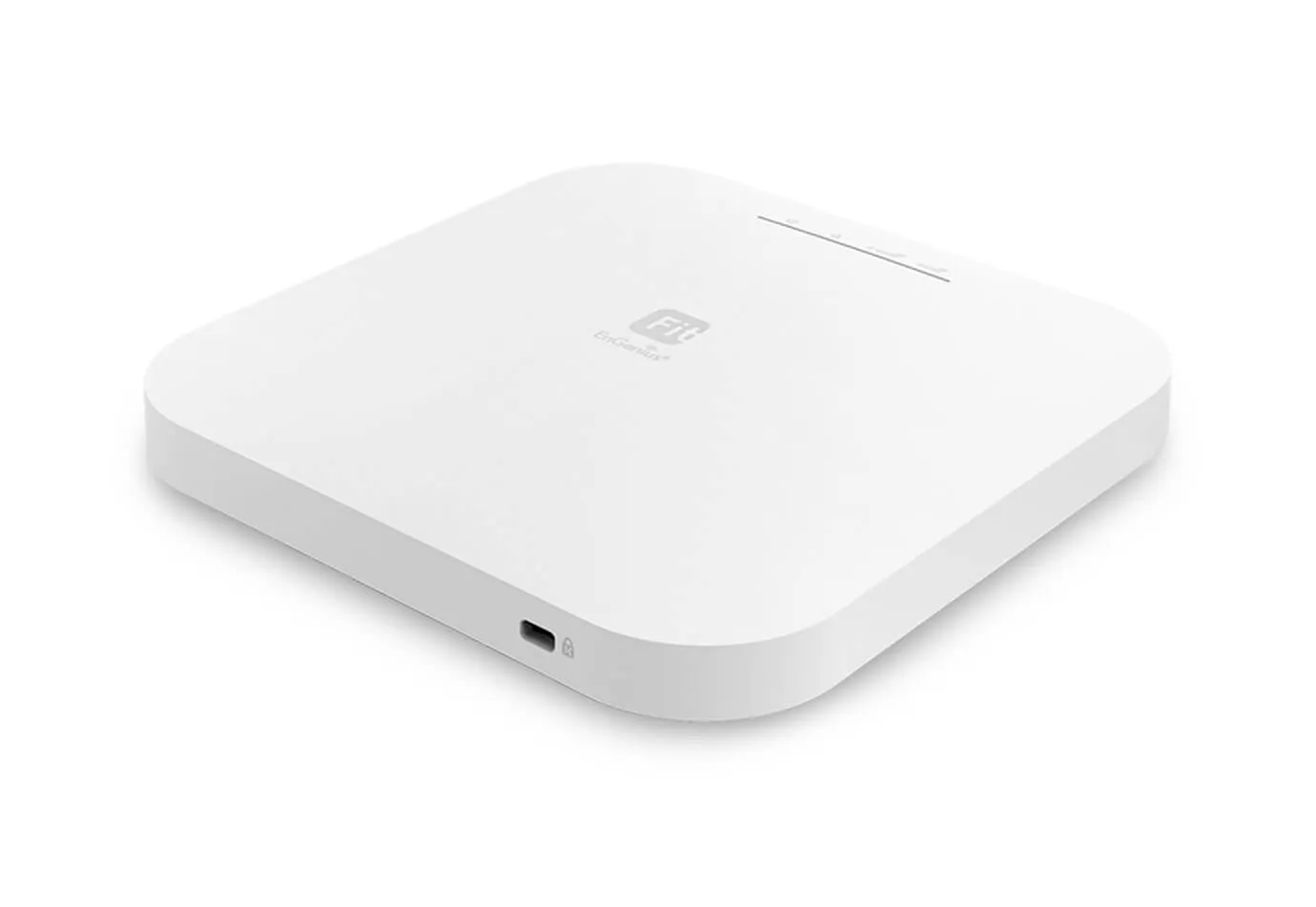

EWS357-FIT Engenius Access Point
About this product
EnGenius Fit Series
Fit6 2x2 Managed AP
Advanced 802.11ax technology with fee-free FitController management. Speedy, efficient, and secure.
1.8 Gbps
Aggregate Speed
2x2
Integrated Antenna
$0 Fees
FitController
🚀 Efficient Wi-Fi 6 Performance
5 GHz Band
1,200 Mbps
Incredible Speed
2.4 GHz Band
574 Mbps
Solid Coverage
📱 Smart Management
- ✓ Managed via FitController
- ✓ No Subscription Fees
- ✓ Local & Remote Management
- ✓ Modes: AP, STA, and Mesh
🔒 Hardware & Security
- ✓ Antenna: 5 dBi Integrated 2x2
- ✓ Port: 1x GE PoE+ (Up to 328ft)
- ✓ Top-tier WPA3/WPA2-AES
- ✓ Backward compatible (11ac/a/b/g/n)
Architecture: Dual Concurrent 802.11ax 2x2 | Security: Unparalleled Protocols
Technical Datasheet
Fit6 2x2 Specifications
Detailed technical breakdown for the Managed Indoor Wi-Fi 6 Access Point.
1.8 Gbps
Total Throughput
2x2:2
MIMO Architecture
1 GbE
PoE+ Port
📡 Wireless & Radio Specifications
| Standards | IEEE 802.11ax (Wi-Fi 6) on 2.4 & 5 GHz Backward compatible with 802.11a/b/g/n/ac |
| Frequencies |
2.4 GHz: 2400 ~ 2482 MHz 5 GHz: 5150 ~ 5850 MHz |
| Max Data Rates (802.11ax) |
5 GHz: 1,200 Mbps (HE80) 2.4 GHz: 574 Mbps (HE40) |
| MIMO & Chains | 2 × 2:2 (SU-MIMO & MU-MIMO supported on both bands) |
| Antennas |
2 x 2.4 GHz (4 dBi) 2 x 5 GHz (5 dBi) Integrated Omni-Directional |
| Tech Supported | OFDMA, 1024-QAM, BPSK/QPSK/16/64/256-QAM |
🔌 Hardware & Power
-
Ethernet Ports:
1 x 10/100/1000 BASE-T (Gigabit) -
Power Source:
PoE 802.3af/at
DC Input: 12V - Max Consumption: 12.8 W
- Interfaces: Reset Button, Multi-color LED
⚙️ Capacity & Modes
- Operation Modes: Managed AP, AP Mesh, Mesh
- Capacity: 128 Concurrent Users Per Radio
- Smart Tech: Client Balancing, Auto Channel Selection
- Transmit Power: Up to 22 dBm (2.4/5 GHz)
📏 Physical & Environmental
Dimensions:
160 x 160 x 33 mm
160 x 160 x 33 mm
Weight:
380g
380g
Temperature:
Op: 0ºC~40ºC (32ºF~104ºF)
Op: 0ºC~40ºC (32ºF~104ºF)
Humidity:
90% or less (non-condensing)
90% or less (non-condensing)
Regulatory Compliance: FCC, CE, IC, UKCA
Modulation: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
