ECW526 Engenius Access Point

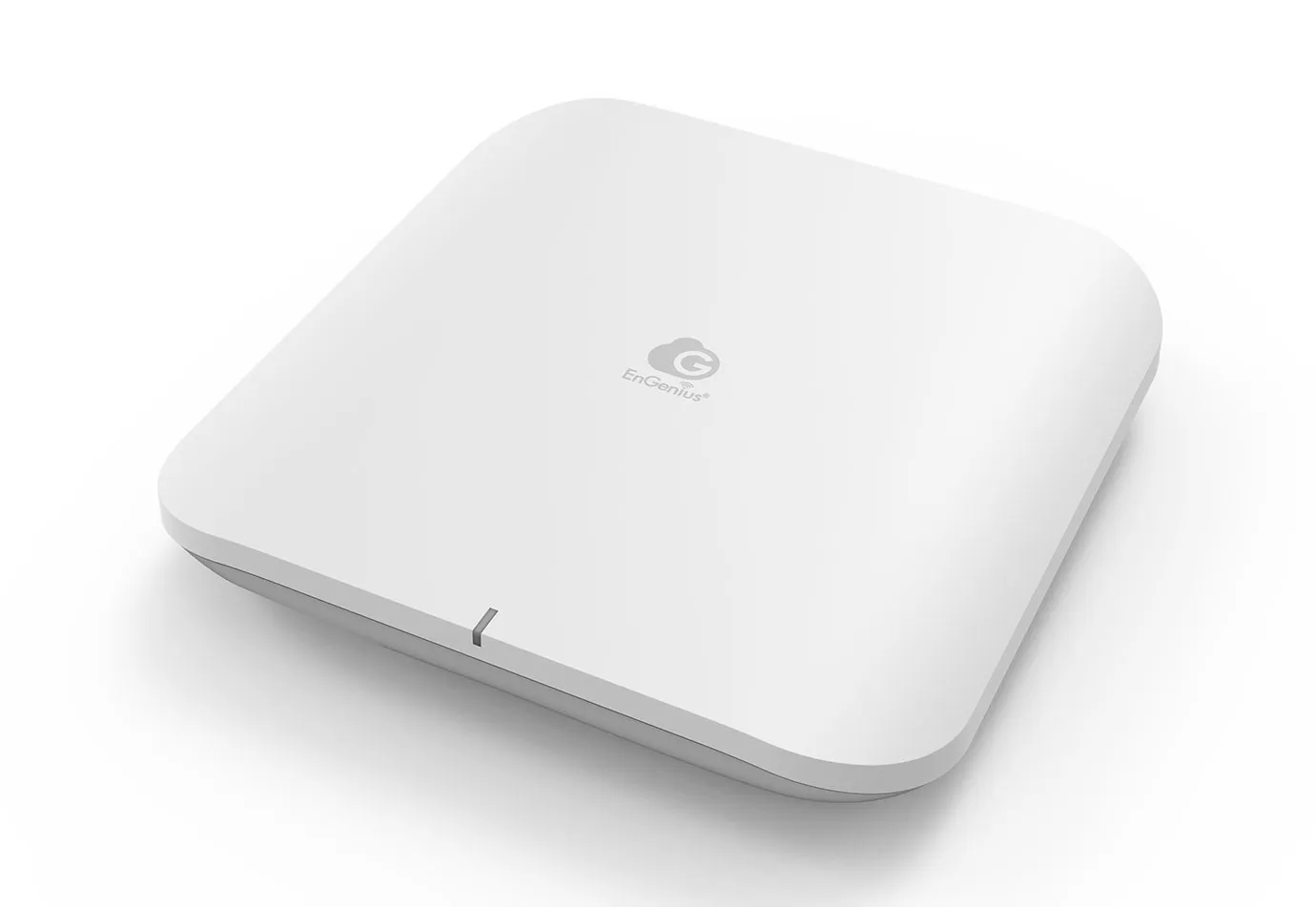

EnGenius ECW526 – Cloud‑Managed Wi‑Fi 7 Access Point

Tri‑Band Wi‑Fi 7 • 9.4 Gbps Throughput • 10G PoE+ Uplink

The EnGenius ECW526 is a next‑generation Wi‑Fi 7 (802.11be) access point engineered for high‑density enterprise environments. With tri‑band 2×2:2 architecture, 10G PoE+ connectivity, and full cloud management, it delivers exceptional performance, ultra‑low latency, and simplified deployment for modern business networks.

Key Features

• Tri‑Band Wi‑Fi 7 (802.11be)
• 6 GHz: 5,800 Mbps
• 5 GHz: 2,900 Mbps
• 2.4 GHz: 700 Mbps
• 9.4 Gbps aggregate throughput
• 2×2:2 MIMO Architecture on all bands
• 10G Multi‑Gig Uplink (PoE+ input)
• Cloud‑Managed with unlimited scalability
• Self‑Healing Mesh Support
• Enterprise‑Grade Security with WPA3/WPA2‑AES
• Supports 512 Concurrent Users
• Ideal for offices, hotels, campuses, and high‑density deployments

Wireless & Radio Specifications

Standards

• IEEE 802.11be (Wi‑Fi 7)
• Backward compatible with 802.11a/b/g/n/ac/ax

Frequencies

• 2.4 GHz: 2400–2482 MHz
• 5 GHz: 5150–5850 MHz
• 6 GHz: 5925–7125 MHz

Max Data Rates

• 6 GHz: 5,800 Mbps (EHT320)
• 5 GHz: 2,900 Mbps (HE160)
• 2.4 GHz: 700 Mbps (VHT40)

MIMO

• 2 × 2:2 SU‑MIMO & MU‑MIMO (all bands)

Antennas

• 2 × 2.4 GHz (5 dBi)
• 2 × 5 GHz (6 dBi)
• 2 × 6 GHz (6 dBi)
• Integrated omni‑directional

Advanced Technologies

• OFDMA
• 4096‑QAM (4K‑QAM)
• EHT 320 MHz
• Target Wake Time (TWT)

Hardware & Power

Ethernet Ports

• 1 × 10G PoE+ (802.3at) uplink port

Power Options

• PoE 802.3at (PoE+)
• 12V DC / 2A

Max Power Consumption

• 21W

Interfaces

• Reset button
• Multi‑color LED
• DC jack

Management & Security

Management Modes

• Managed AP
• AP Mesh
• Mesh

Cloud Features

• Unlimited AP management
• Quick‑scan onboarding
• Remote diagnostics & monitoring

Capacity

• 512 concurrent users
• 8 SSIDs per radio

Security

• WPA2/WPA3 (PSK & Enterprise)
• Client isolation
• Access control
• VLAN tagging (802.1Q)
• Fast roaming (802.11r/k)
• QoS (WMM)
• SNMP v1/v2c/v3

Physical & Environmental

Dimensions

• 230 × 230 × 39.5 mm

Weight

• 1270 g

Operating Conditions

• Temperature: 0°C to 50°C
• Humidity: ≤ 90% (non‑condensing)

Certifications

• FCC
• CE
• IC
• UKCA
• VCCI

Package Includes

• ECW526 Access Point
• Ceiling mount base
• Mounting kits
• Product card

Use‑Case Clarity

Ideal For

• Enterprise offices
• Hotels & hospitality
• University campuses
• Retail & malls
• High‑density indoor environments
• Multi‑gigabit Wi‑Fi deployments

Why It Fits These Environments

• Wi‑Fi 7 tri‑band performance handles heavy traffic
• 10G uplink eliminates bottlenecks
• Cloud management simplifies multi‑site operations
• Self‑healing mesh ensures uninterrupted connectivity
• Enterprise‑grade security protects sensitive networks
