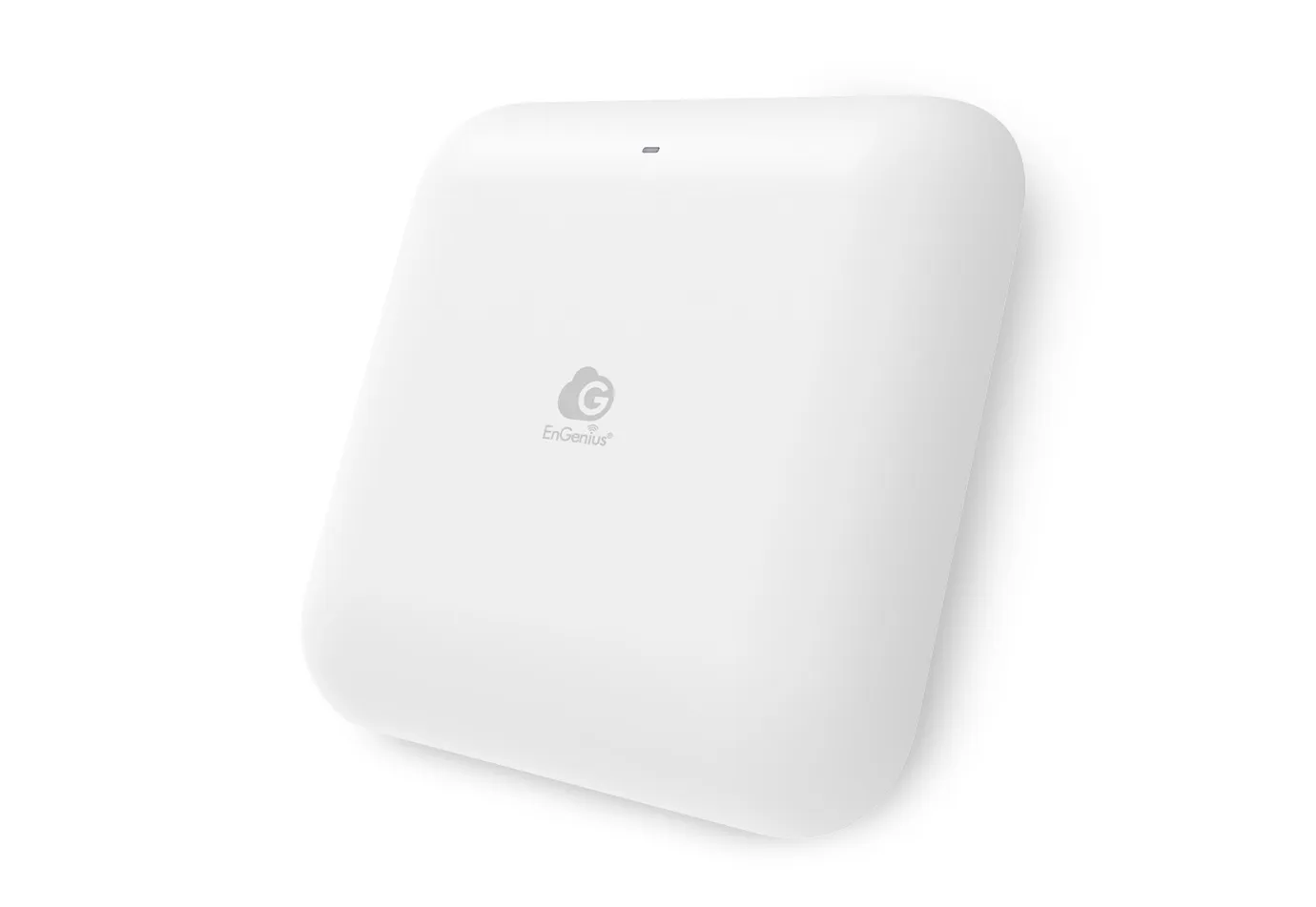

ECW520 Engenius Access Point
About this product
Cloud Managed Wi-Fi 7
EnGenius ECW520
2x2:2 Access Point supporting tri-concurrent 802.11be architecture. Supercharged speeds managed simply from the cloud.
9.4 Gbps
Aggregate Throughput
2.5 GbE
PoE+ Uplink
Wi-Fi 7
802.11be Standard
🚀 Supercharged Tri-Band Speed
6 GHz Band
5,800 Mbps
Ultra-Low Latency
5 GHz Band
2,900 Mbps
High Capacity
2.4 GHz Band
700 Mbps
Wide Coverage
☁️ EnGenius Cloud Management
- ✓ Unlimited AP management from anywhere
- ✓ Quick-scan device registration
- ✓ Remote monitoring & troubleshooting
- ✓ Includes AP & Mesh operation modes
🔒 Hardware & Security
- ✓ 2.5 GbE Port: Greater throughput support
- ✓ Supports 802.3at & 60W PoE injector
- ✓ Flexible installation over 100 meters
- ✓ WPA3 & WPA2-AES security
Optimization: Mesh Wireless Support simplifies setup, optimizes signals & self-heals.
Technical Datasheet
ECW520 Specifications
Detailed technical breakdown for the Cloud Managed Wi-Fi 7 2x2:2 Access Point.
9.4 Gbps
Total Throughput
2x2:2
MIMO Architecture
2.5 GE
PoE+ Port
📡 Wireless & Radio Specifications
| Standards | IEEE 802.11be (Wi-Fi 7) on 2.4, 5, & 6 GHz Backward compatible with 802.11a/b/g/n/ac/ax |
| Frequencies |
2.4 GHz: 2400 ~ 2482 MHz 5 GHz: 5150 ~ 5850 MHz 6 GHz: 5925 ~ 7125 MHz |
| Max Data Rates (802.11be) |
6 GHz: 5,800 Mbps (MCS13) 5 GHz: 4,300 Mbps (MCS13) 2.4 GHz: 700 Mbps (MCS13) |
| Radio Chains | 2 x 2:2 |
| Antennas |
2 x 2.4 GHz (6 dBi) 2 x 5 GHz (6 dBi) 2 x 6 GHz (6 dBi) Integrated Omni-Directional |
| Advanced Tech | OFDMA, 4096-QAM, Client Balancing, Auto Channel Selection |
🔌 Hardware & Power
-
Ethernet Ports:
1 x 2.5GE Port (PoE+ Input) -
Power Source:
PoE 802.3at
DC Input: 12VDC / 2A - Max Consumption: 25.4 W
- Interfaces: Reset Button, Multi-color LED, DC Jack
⚙️ MIMO & Channelization
- SU/MU-MIMO: 2 Spatial Streams across 2.4/5/6 GHz simultaneously.
- Bandwidths: EHT 20/40/80/160/240/320 MHz supported.
- Modulation: Up to 4096-QAM (4K-QAM) on Wi-Fi 7.
- Capacity: 512 Max Concurrent Users.
🔒 Security & Compliance
Protocols:
WPA2-PSK, WPA2-Enterprise, WPA3-PSK, WPA3-Enterprise
WPA2-PSK, WPA2-Enterprise, WPA3-PSK, WPA3-Enterprise
Features:
Hidden SSID, Client Isolation, Access Control, Connected List
Hidden SSID, Client Isolation, Access Control, Connected List
Management:
Managed Mode (AP, Mesh), VLAN Tagging (802.1q), Management VLAN
Managed Mode (AP, Mesh), VLAN Tagging (802.1q), Management VLAN
