ECW516L Engenius Access Point
About this product
SMB Wi-Fi 7 Solution

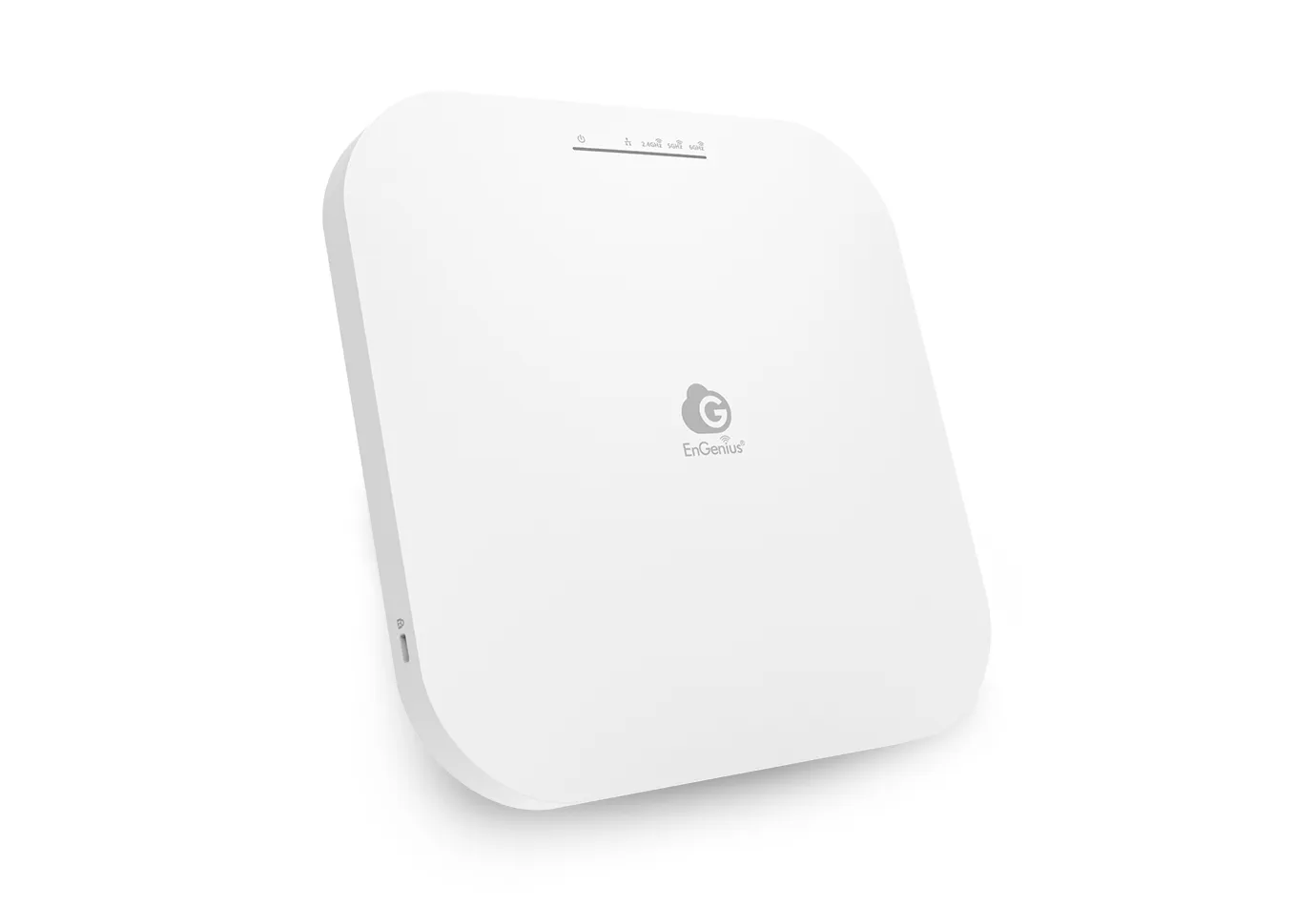

EnGenius ECW516L
Cost-effective Cloud Managed 2x3x3 Access Point. Enterprise-grade performance designed for small businesses.
13.7 Gbps
Aggregate Speed
2.5 Gbps
PoE+ Port
2x3x3
Antenna Config
🚀 Tri-Concurrent Performance
6 GHz Band
8,700 Mbps
Next-Gen Speed
5 GHz Band
4,300 Mbps
High Capacity
2.4 GHz Band
700 Mbps
Wide Coverage
☁️ EnGenius Cloud
- ✓ Free local & remote management
- ✓ Quick-scan device register & config
- ✓ Flexible Deployment (AP, STA, Mesh)
- ✓ Self-healing Mesh Wireless Support
🔒 Hardware & Security
- ✓ Antenna: 5 dBi (2x2 @ 2.4G | 3x3 @ 5/6G)
- ✓ 2.5GE Port: High-speed PoE+ input
- ✓ WPA3 & WPA2-AES Authentication
- ✓ Backward compatible with legacy devices
Architecture: Tri-concurrent 802.11be Wi-Fi 7 | Ideal For: Small Businesses & Cost-Effective Upgrades
Technical Datasheet
ECW516L Specifications
Detailed technical breakdown for the 2x3x3 Cloud Managed Wi-Fi 7 Access Point.
13.7 Gbps
Total Throughput
2x3x3
MIMO Architecture
2.5 GE
PoE+ Port
📡 Wireless & Radio Specifications
| Standards | IEEE 802.11be (Wi-Fi 7) on 2.4, 5, & 6 GHz Backward compatible with 802.11a/b/g/n/ac/ax |
| Frequencies |
2.4 GHz: 2400 ~ 2482 MHz 5 GHz: 5150 ~ 5850 MHz 6 GHz: 5925 ~ 7125 MHz |
| Max Data Rates (802.11be) |
6 GHz: 8,700 Mbps (EHT320) 5 GHz: 4,300 Mbps (HE160) 2.4 GHz: 700 Mbps (VHT40) |
| MIMO & Chains |
2.4 GHz: 2x2:2 5 & 6 GHz: 3x3:3 |
| Antennas |
2 x 2.4 GHz (5 dBi) 3 x 5 GHz (5 dBi) 3 x 6 GHz (5 dBi) Integrated Omni-Directional |
| Tech Supported | OFDMA, 4096-QAM (4K-QAM), EHT 320 MHz, Target Wake Time (TWT) |
🔌 Hardware & Power
-
Ethernet Ports:
1 x 2.5GE Port (PoE+ Input) -
Power Source:
PoE 802.3at
DC Input: 12VDC / 2A - Max Consumption: 20.7 W
- Interfaces: Reset Button, DC Jack, LED Indicators (Power, LAN, Bands)
⚙️ Management & Advanced
- Modes: Managed AP, AP Mesh, Mesh
- Capacity: 128 Concurrent Users per Radio
- Smart Features: Client Balancing, Auto Channel Selection
- Transmit Power: Up to 22 dBm (2.4/5/6 GHz)
🔒 Security & Modulation
Security:
WPA2-PSK, WPA2-Enterprise, WPA3-PSK, WPA3-Enterprise, Client Isolation, Access Control.
WPA2-PSK, WPA2-Enterprise, WPA3-PSK, WPA3-Enterprise, Client Isolation, Access Control.
Modulation (802.11be):
BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM
BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM
Regulatory Compliance: N/A (as per provided specs)
Package Includes: ECW516L AP, Ceiling Mount Base, Mounting Kits, Product Card.
