ECW510 Engenius Access Point
About this product
Dual-Band Wi-Fi 7

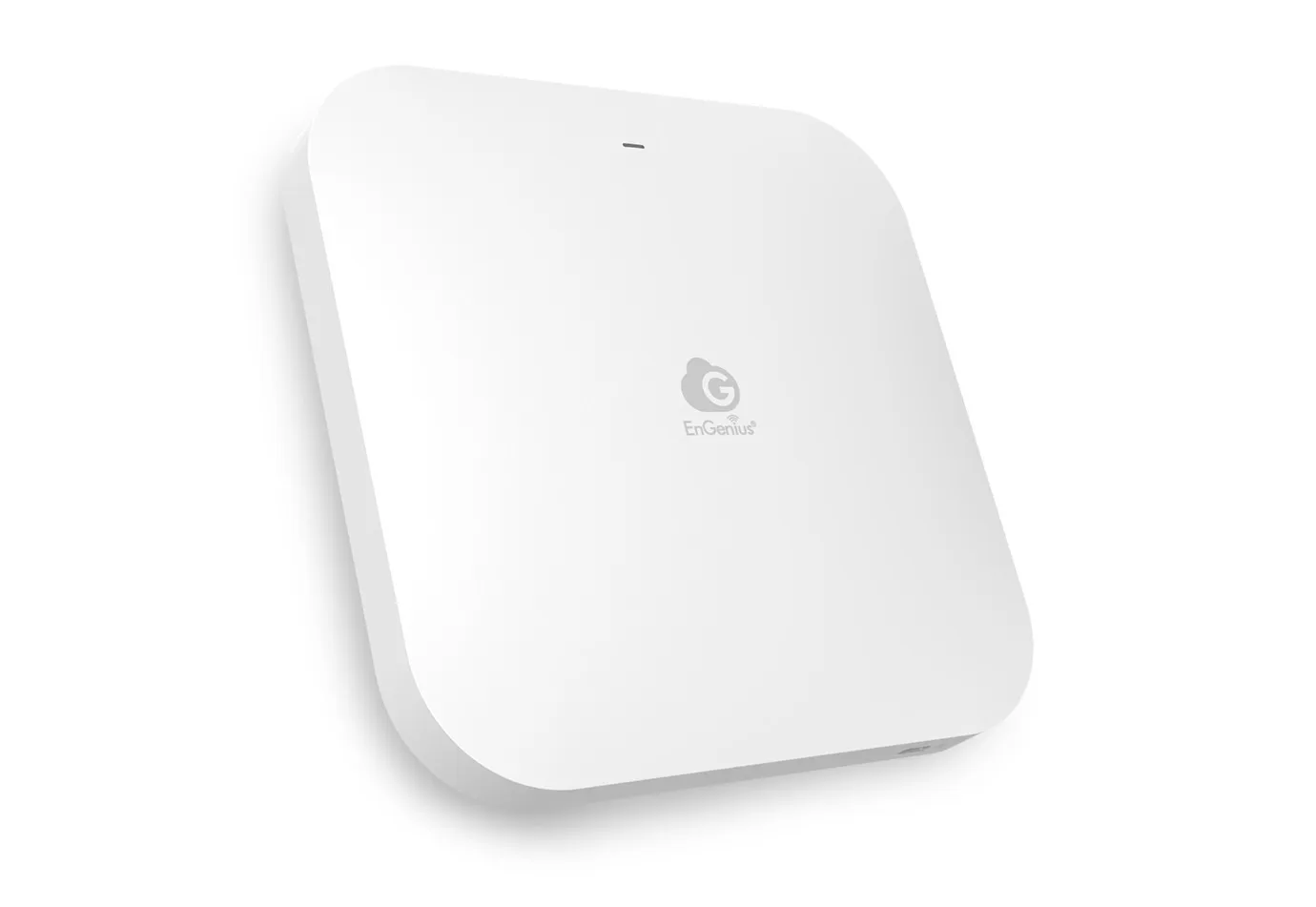

EnGenius ECW510
Cloud Managed 2x2 Access Point. Delivering supercharged speeds up to 5 Gbps with next-gen 802.11be architecture.
5 Gbps
Aggregate Speed
2.5 GbE
High-Speed Uplink
Wi-Fi 7
802.11be Tech
🚀 Dual Concurrent Performance
5 GHz Band
4,300 Mbps
Supercharged Data
2.4 GHz Band
700 Mbps
IoT & Legacy Devices
☁️ Smart Management
- ✓ Unlimited AP cloud management
- ✓ Quick-scan device registration
- ✓ Remote monitoring & troubleshooting
- ✓ Self-healing Mesh Wireless Support
🔒 Hardware & Install
- ✓ 2.5 GbE Port: Greater throughput
- ✓ Flexible install over 100 meters (PoE)
- ✓ Supports 802.3at & PoE injector
- ✓ WPA3 & WPA2-AES Security
Architecture: Dual Concurrent 802.11be | Backward Compatible | AP & Mesh Modes
Technical Datasheet
ECW510 Specifications
Detailed technical breakdown for the Cloud Managed Wi-Fi 7 Dual-Band Access Point.
5 Gbps
Total Throughput
2x2:2
MIMO Architecture
2.5 GE
PoE+ Port
📡 Wireless & Radio Specifications
| Standards | IEEE 802.11be (Wi-Fi 7) on 2.4 & 5 GHz Backward compatible with 802.11a/b/g/n/ac/ax |
| Frequencies |
2.4 GHz: 2400 ~ 2482 MHz 5 GHz: 5150 ~ 5895 MHz |
| Max Data Rates (802.11be) |
5 GHz: 4,300 Mbps (EHT240) 2.4 GHz: 700 Mbps (EHT40) |
| MIMO & Chains | 2 × 2:2 (SU-MIMO & MU-MIMO supported on both bands) |
| Antennas |
2 x 2.4 GHz (3 dBi) 2 x 5 GHz (5 dBi) Integrated Omni-Directional |
| Tech Supported | OFDMA, 4096-QAM (4K-QAM), EHT 240/320 MHz, Target Wake Time (TWT) |
🔌 Hardware & Power
-
Ethernet Ports:
1 x 2.5GE Port (PoE+ Input) -
Power Source:
PoE 802.3at (PoE+)
DC Input: 12VDC / 1.5A - Max Consumption: 18.7 W
- Interfaces: Reset Button, Multi-color LED, DC Jack
⚙️ Management & Security
- Modes: Managed AP, AP Mesh, Mesh
- Capacity: 512 Concurrent Users, 8 SSIDs per radio
- Security: WPA2/WPA3 (PSK & Enterprise), Client Isolation, Access Control
- Networking: VLAN Tagging (802.1q), QoS (WMM), Fast Roaming (802.11r/k), SNMP v1/v2c/v3
📏 Physical & Environmental
Dimensions:
160 x 160 x 32 mm
160 x 160 x 32 mm
Weight:
660g
660g
Temperature:
Op: 0ºC~40ºC (32ºF~104ºF)
Op: 0ºC~40ºC (32ºF~104ºF)
Humidity:
90% or less (non-condensing)
90% or less (non-condensing)
Regulatory Compliance: FCC, CE, IC, UKCA, VCCI, AU
Package Includes: ECW510 AP, Ceiling Mount Bases (9/16” & 15/16”), Screw Kit, Product Card.
