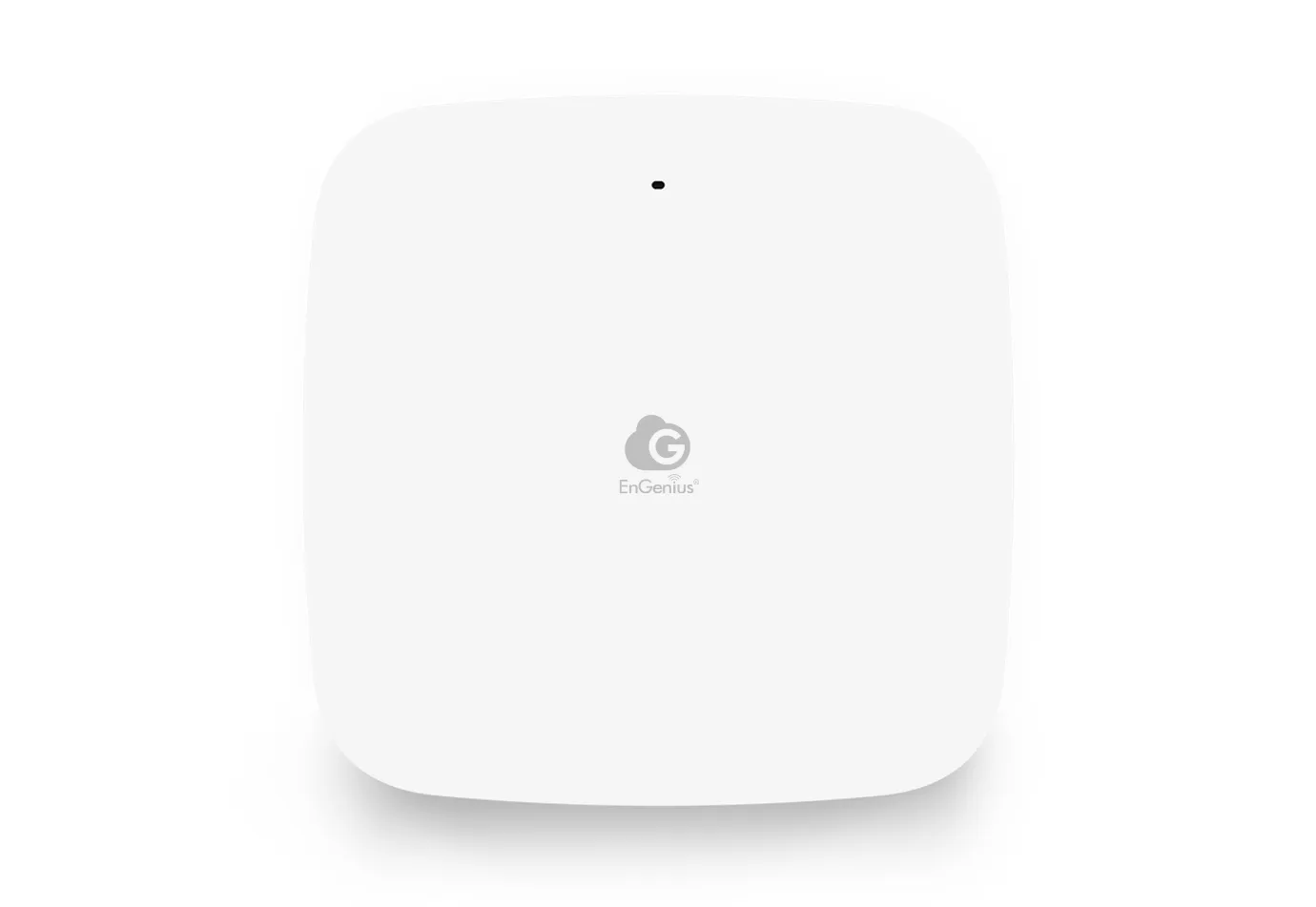

EnGenius ECW210L Access Point
About this product
SMB Wi-Fi 6 Solution
EnGenius ECW210L
Cloud Managed 2x2 Access Point. Cost-effective enterprise performance with speeds up to 3 Gbps.
3 Gbps
Aggregate Speed
2x2
MIMO Architecture
Wi-Fi 6
802.11ax Tech
🚀 Dual-Band Performance
5 GHz Band
2,400 Mbps
High Speed Data
2.4 GHz Band
574 Mbps
IoT & Legacy Devices
☁️ Management & Deploy
- ✓ Free local & remote cloud management
- ✓ Quick-scan device registration
- ✓ Supports Mesh, AP, and STA modes
- ✓ DFS Support for broader coverage
🔒 Hardware & Security
- ✓ 1 GbE Port: Standard PoE support
- ✓ Install up to 328ft from power source
- ✓ WPA3 & WPA2-AES Security
- ✓ Integrated 5 dBi 2x2 Antenna
Ideal For: Small Businesses, Cafés, and Office Deployments | Compatibility: Backward Compatible with Legacy Devices
Technical Datasheet
ECW210L Specifications
Detailed technical breakdown for the Cloud Managed 2x2 Wi-Fi 6 Access Point.
3 Gbps
Total Throughput
2x2:2
MIMO Architecture
PoE 802.3af
Power Input
📡 Wireless & Radio Specifications
| Standards | IEEE 802.11ax (Wi-Fi 6) on 2.4 & 5 GHz Backward compatible with 802.11a/b/g/n/ac |
| Frequencies |
2.4 GHz: 2400 ~ 2482 MHz 5 GHz: 5150 ~ 5850 MHz |
| Max Data Rates (802.11ax) |
5 GHz: 2,400 Mbps (HE160) 2.4 GHz: 574 Mbps (HE40) |
| MIMO & Chains | 2 × 2:2 (SU-MIMO & MU-MIMO supported on both bands) |
| Antennas |
2 x 2.4 GHz (6 dBi) 2 x 5 GHz (7 dBi) Integrated Omni-Directional |
| Tech Supported | OFDMA, 1024-QAM, Target Wake Time (TWT), BSS Coloring |
🔌 Hardware & Power
-
Ethernet Ports:
1 x GE Port (PoE Input) -
Power Source:
PoE 802.3af (Standard PoE)
DC Input: 12VDC / 1.5A - Max Consumption: 10.7 W
- Interfaces: Reset Button, Multi-color LED, DC Jack
⚙️ Management & Security
- Modes: Managed AP, AP Mesh, Mesh
- Capacity: 128 Concurrent Users Per Radio, 8 SSIDs per band
- Security: WPA2-PSK, WPA3-PSK, Client Isolation, Access Control
- Networking: VLAN Tagging (802.1q), QoS (WMM), Fast Roaming (802.11r/k), SNMP v1/v2c/v3
📏 Physical & Environmental
Dimensions:
160 x 160 x 30 mm
160 x 160 x 30 mm
Weight:
380g
380g
Temperature:
Op: 0ºC~40ºC (32ºF~104ºF)
Op: 0ºC~40ºC (32ºF~104ºF)
Humidity:
90% or less (non-condensing)
90% or less (non-condensing)
Regulatory Compliance: FCC, CE, IC, UKCA, UK PSTI, AU
Package Includes: ECW210L AP, Ceiling Mount Bases (9/16” & 15/16”), Screw Kit, Product Card.
