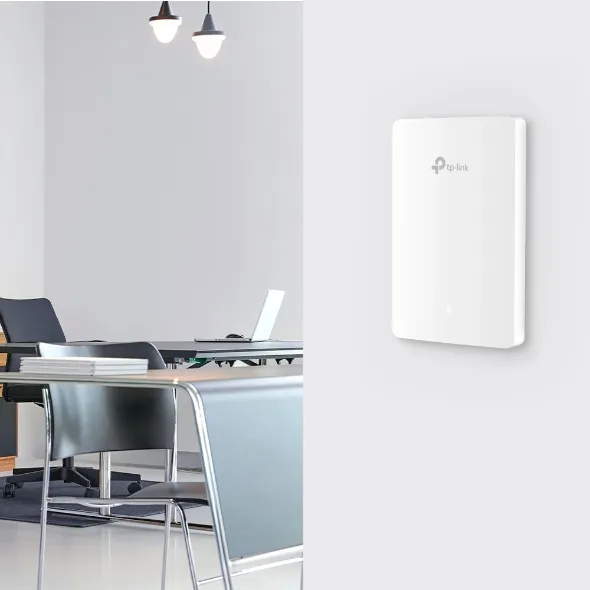

EAP615-Wall

EAP615-Wall

AX1800 Wall Plate WiFi 6 Access Point

Superior WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.**

High-Performance Connectivity: Guarantee higher network efficiency and lower latency.

Four Gigabit Ports: 4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for wired device.‡

Centralized Management: Integrates into Omada SDN for cloud access and remote management.

Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.†

Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.

HARDWARE FEATURES

Interface • Uplink: 1× 10/100/1000 Mbps Ethernet Port

• Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input.The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing.)

Physical Security Lock Yes

Button Reset

Power Supply 802.3af/at PoE

Max. Power Consumption • EU: 10W (802.3at PoE, PoE Out off)

• US: 11.5W (802.3at PoE, PoE Out off)

Dimensions ( W x D x H ) 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)

Antenna 2 Dual-Band Antennas

• 2.4 GHz: 2× 3 dBi

• 5 GHz: 2× 4 dBi

Mounting Wall Plate Mounting

WIRELESS FEATURES

Coverage 50㎡(600 ft²)△

Concurrent Clients 120+△

Wireless Standards IEEE 802.11ax/ac/n/g/b/a

Frequency 2.4 GHz and 5 GHz

Signal Rate • 5 GHz: Up to 1201 Mbps

• 2.4 GHz: Up to 574 Mbps

Wireless Functions • 16 SSIDs (Up to 8 SSIDs on each band)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

• Seamless Roaming†

• Beamforming

• MU-MIMO

• Rate Limit

• Load Balance

• Airtime Fairness

• Band Steering

• Reboot Schedule

• Wireless Schedule

• RADIUS Accounting

• MAC Authentication

• Wireless Statistics

• Static IP/Dynamic IP

Wireless Security • Captive Portal Authentication†

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• VLAN

• Rogue AP Detection

• 802.1X Support

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power • CE:

< 20 dBm (2.4 GHz, EIRP)

< 23 dBm (5 GHz, EIRP)

• FCC:

< 21 dBm (2.4 GHz)

< 21 dBm (5 GHz)

Management Features

Omada App Yes

Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Email Alerts Yes

LED ON/OFF Control Yes

Management MAC Access Control Yes

SNMP v1, v2c, v3

System Logging Local/Remote Syslog Local/Remote Syslog

SSH Yes

Web-based Management HTTP/HTTPS

L3 Management Yes

Multi-site Management Yes

Management VLAN Yes

Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS

Certification CE, FCC, RoHS

Package Content • AX1800 Wall Plate WiFi 6 Access Point EAP615-Wall

• Installation Guide

• Mounting Kits

System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux

Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
