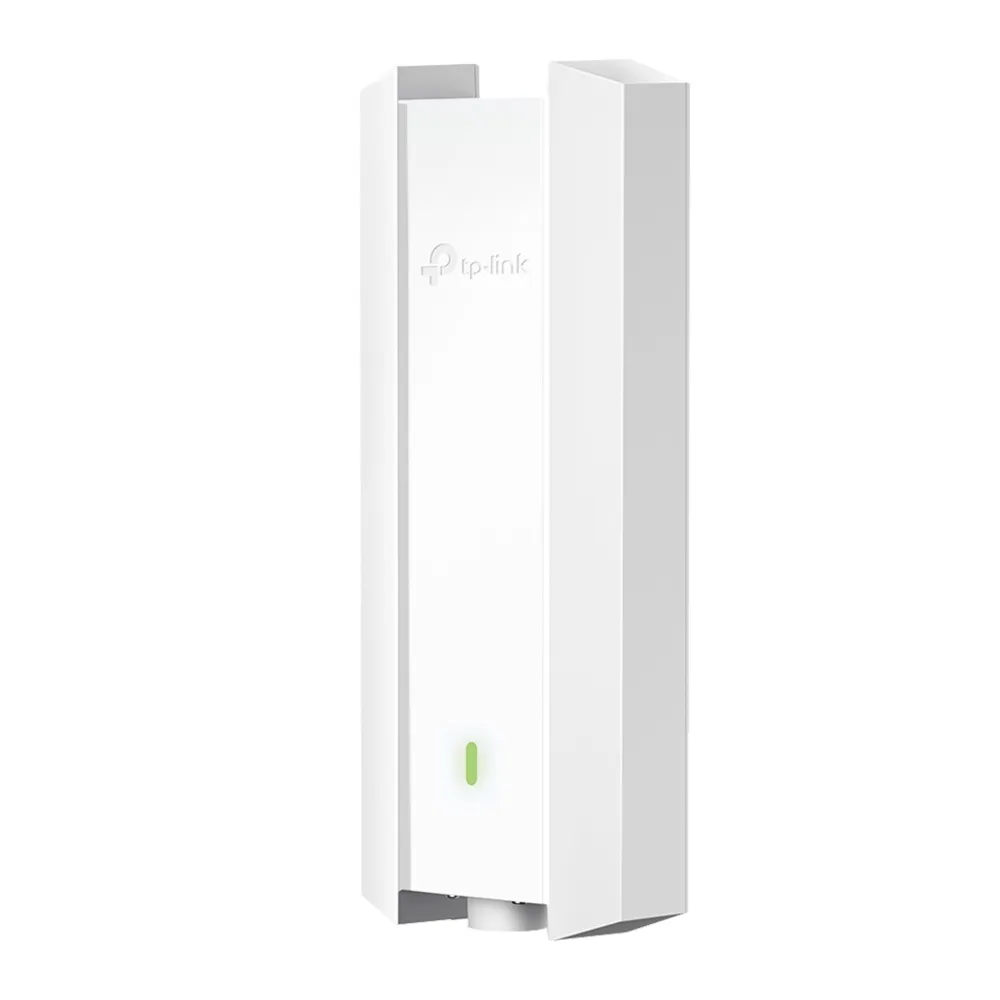

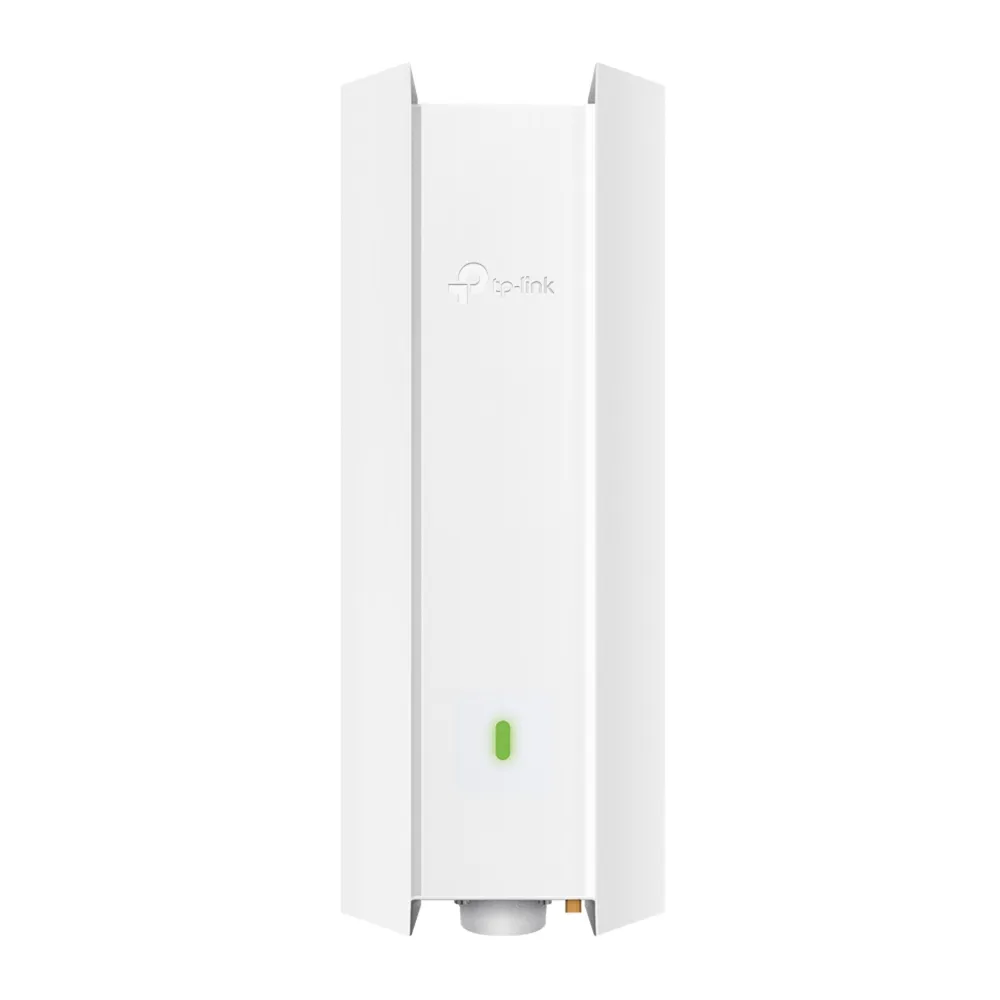

EAP610-Tp-Link Outdoor Access Point

EAP610-Outdoor

Superior WiFi 6 Speeds: Delivers dual-band speeds of up to 1.8 Gbps powered by the latest WiFi 6 technology†
Higher Network Efficiency: Enjoy faster speeds on more devices with less lag via OFDMA and MU-MIMO
Long-Range Coverage: Dedicated high-power amplifier and professional antennas with IP67 weatherproof enclosure
Omada Mesh Technology: Enables wireless connectivity between access points for extended range and flexible deployment**
Stay Smooth with Fast Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points**
Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management

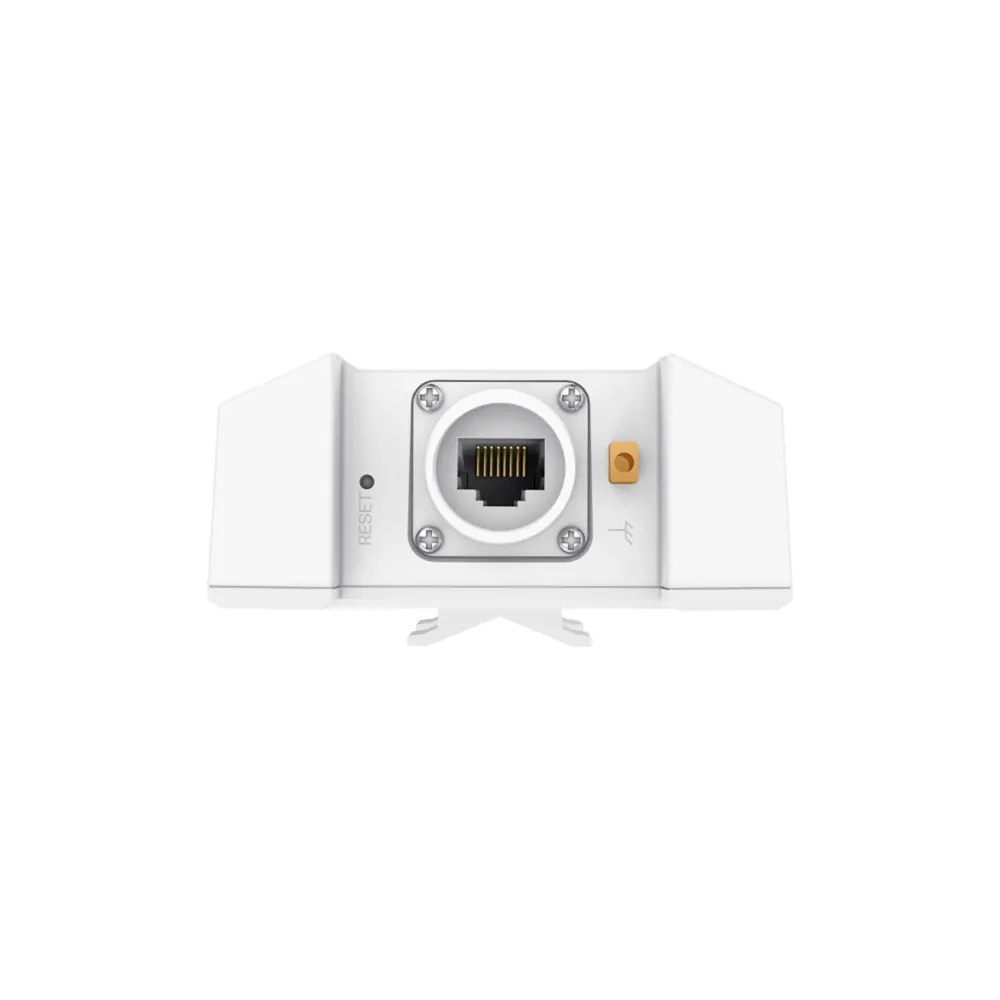

Interface	1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)
Button	Reset
Power Supply	• 802.3at PoE • 48V/0.5A Passive PoE (PoE Adapter Included)
Max. Power Consumption	• EU: 12.5W (802.3at PoE or Passive PoE) • US: 14.7W (802.3at PoE or Passive PoE)
Dimensions ( W x D x H )	280.4 × 106.5 × 56.8 mm (without antenna & mounting kit)
Antenna	• 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi
Weatherproof Enclosure	IP67

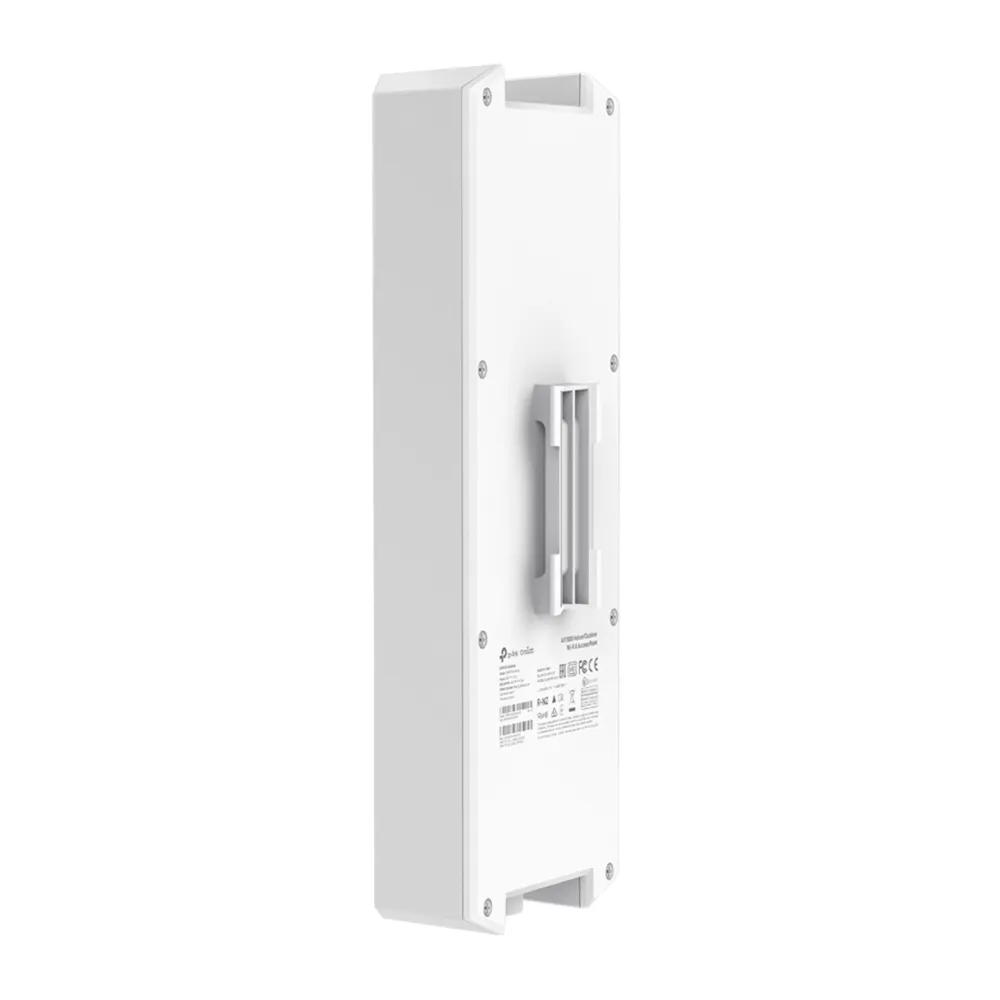

Mounting	Pole/Wall Mounting (Kits included)

Concurrent Clients	250+△
Wireless Standards	IEEE 802.11ax/ac/n/g/b/a
Frequency	2.4 GHz, 5 GHz
Signal Rate	802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80) 802.11ac: 6.5 Mbps to 867 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80) 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40) 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Functions	1024-QAM 4× Longer OFDM Symbol OFDMA Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS (WMM) MU-MIMO Omada Mesh Seamless Roaming Band Steering Load Balance Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client
Wireless Security	Captive Portal Authentication** Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	• CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP) • FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz)

Omada App	Yes
Centralized Management	• Omada Cloud-Based Controller (Supported by EAP610-Outdoor v1.20 and above) • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access	Yes, through: • Omada Cloud-Based Controller (Supported by EAP610-Outdoor v1.20+) • OC300 • OC200 • Omada Software Controller
Email Alerts	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c
System Logging	Yes (Local/Remote Syslog)
SSH	Yes
Web-based Management	Yes
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP610-Outdoor v1.20+).

Certification	CE, FCC, RoHS
Package Content	Access Point EAP610-Outdoor Passive PoE Adapter Power Cord Mounting Kits Waterproof Kits Waterproof Antenna Installation Guide
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment	• Operating Temperature: -30–70 ℃ (-22–158 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
