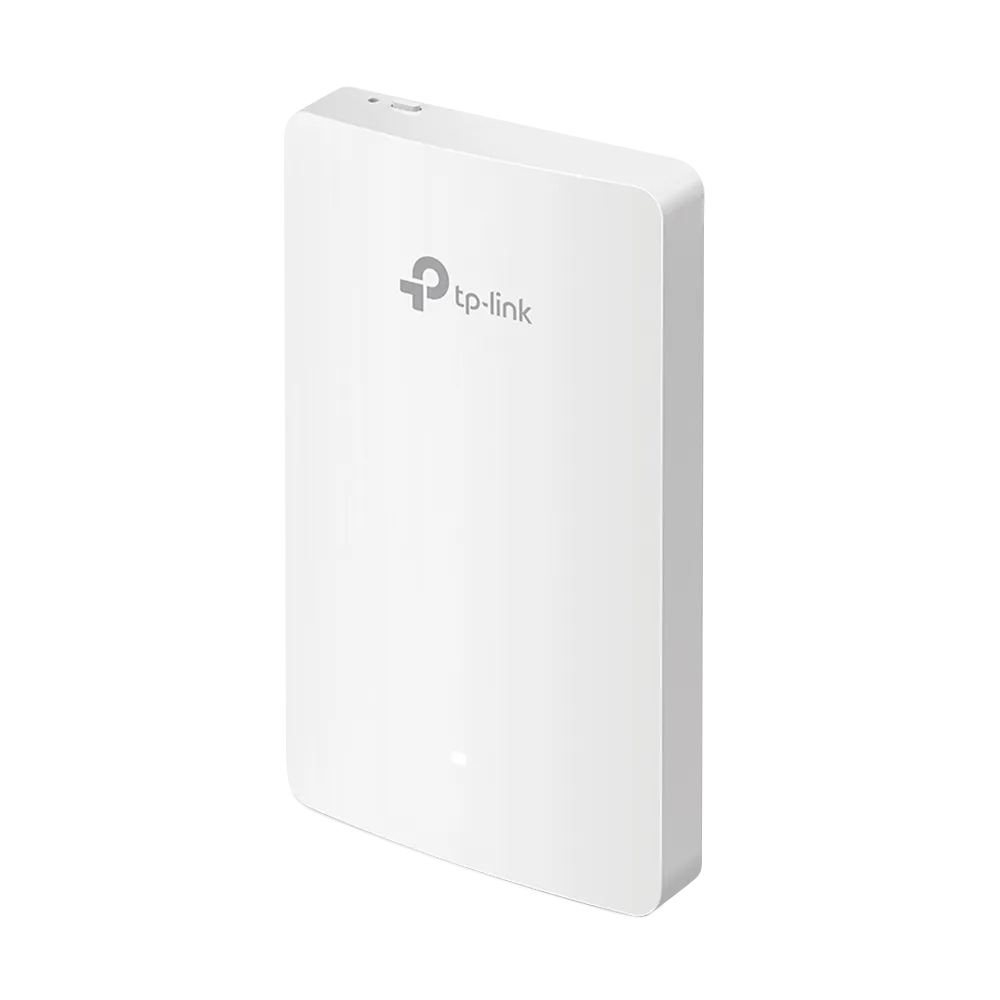

TP‑Link EAP235‑Wall – AC1200 MU‑MIMO Gigabit Wall‑Plate Access Point

A slim, high‑performance wall‑mounted access point designed for in‑room Wi‑Fi and wired connectivity. With AC1200 dual‑band speeds, four Gigabit ports, PoE pass‑through, and Omada SDN integration, the EAP235‑Wall is ideal for hotels, offices, apartments, and commercial rooms.

Description

The EAP235‑Wall delivers fast dual‑band Wi‑Fi with combined speeds up to 1.2 Gbps (867 Mbps on 5 GHz + 300 Mbps on 2.4 GHz). Its ultra‑slim 20 mm profile blends seamlessly into any room, while the built‑in 4‑port Gigabit switch makes it easy to connect wired devices such as VoIP phones, IPTV boxes, and desktops. One downlink port supports PoE pass‑through, allowing you to power devices directly from the wall. Integrated with Omada SDN, it supports centralized cloud management, captive portal authentication, and enterprise‑grade security.

Configuration

Physical

• Dimensions: 143 × 86 × 20 mm
• Slim 20 mm wall‑plate design
• Mounting: Compatible with 86 mm, EU, and US junction boxes
• Antennas:

• 2.4 GHz: 2 × 4 dBi
• 5 GHz: 2 × 4 dBi

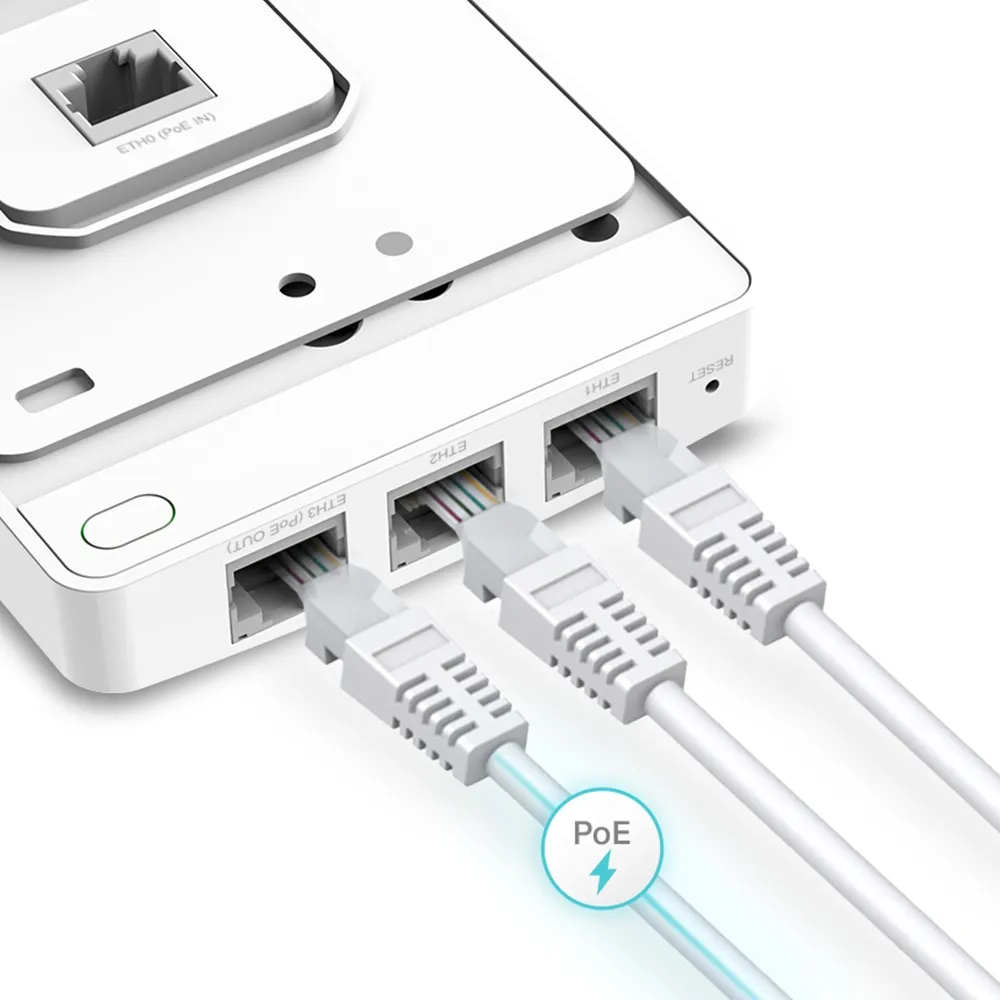

Network Interfaces

• Uplink:
• 1 × Gigabit Ethernet (PoE In)
• Downlink:
• 3 × Gigabit Ethernet ports
• 1 port supports PoE Out (up to 13 W max)
• Power Method: 802.3af/at PoE
• Power Consumption:

• 9.8 W (without PoE Out)
• 24.4 W (with PoE Out)

Wireless Performance

• WiFi Standard: 802.11ac/n/g/b/a (AC1200)
• Dual‑Band Speeds:
• 5 GHz: up to 867 Mbps
• 2.4 GHz: up to 300 Mbps

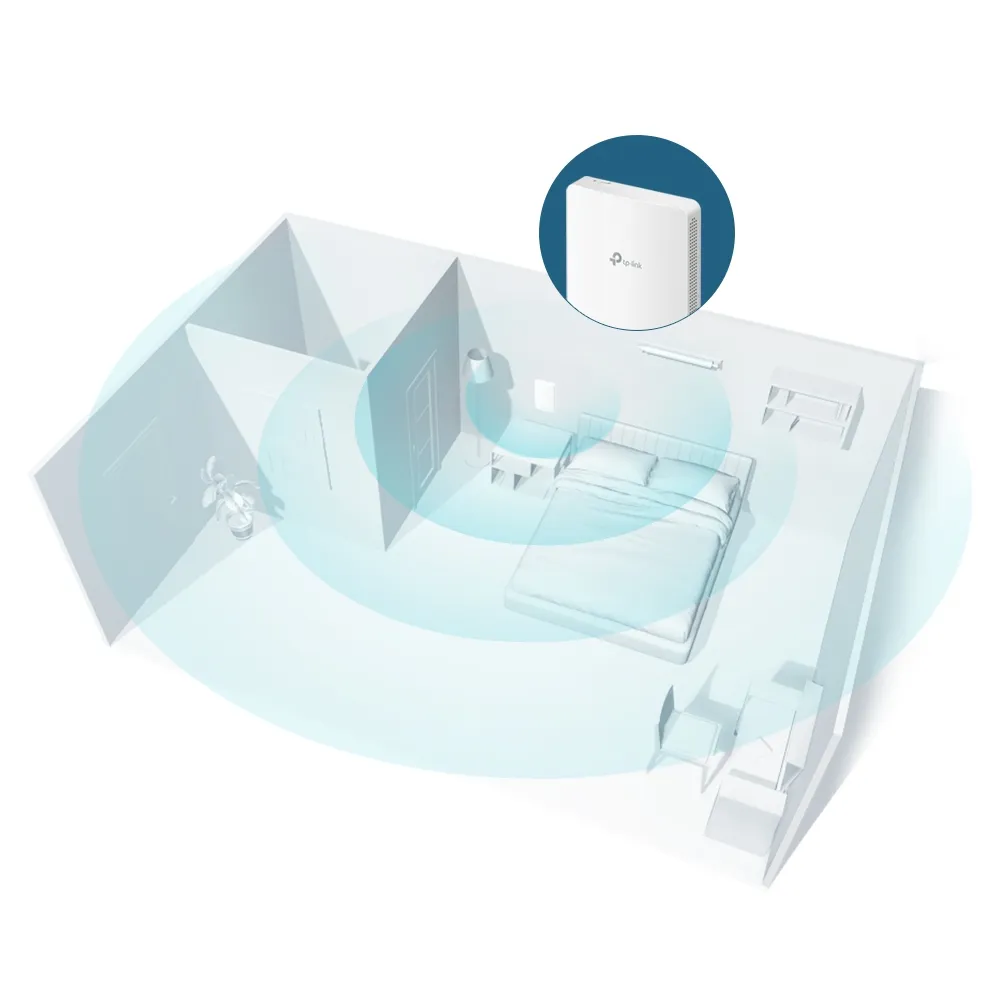

• Coverage: Up to 25 m² (300 ft²)
• Concurrent Clients: 200+
• Technologies:

• MU‑MIMO
• Beamforming
• Band Steering

Wireless Features

• Up to 16 SSIDs (8 per band)
• Automatic channel assignment
• Transmit power control
• Airtime fairness
• Load balancing
• Rate limiting
• Wireless scheduling
• Reboot scheduling
• Wireless statistics (SSID/AP/Client)

Security

• Captive Portal (Facebook, SMS, Voucher, etc.)
• Access control
• MAC filtering
• Client isolation
• VLAN support
• Rogue AP detection
• WPA/WPA2‑Enterprise
• 802.1X authentication

Management

• Omada App
• Omada Cloud‑Based Controller
• Omada Hardware Controllers (OC200/OC300)
• Omada Software Controller
• Cloud access (via controller)
• Zero‑Touch Provisioning (ZTP)
• SNMP v1/v2c/v3
• SSH
• HTTP/HTTPS
• L3 management
• Multi‑site management
• LED On/Off control

Certifications & Environment

• Certifications: CE, FCC, RoHS
• Operating Temperature: 0–40°C
• Storage Temperature: –40–70°C
• Operating Humidity: 10–90% RH
• Storage Humidity: 5–90% RH

Use Cases

Ideal For

• Hotel rooms & hospitality suites
• Office cabins & meeting rooms
• Residential apartments & serviced units
• Clinics & healthcare rooms
• Retail stores & commercial spaces
• Student dormitories & campus housing

Why It Works Well

• Perfect for in‑room Wi‑Fi + wired connectivity
• PoE pass‑through powers phones/cameras without extra adapters
• Slim, modern design blends into any interior
• Centralized cloud management simplifies deployment
• Strong security for guest and enterprise networks
