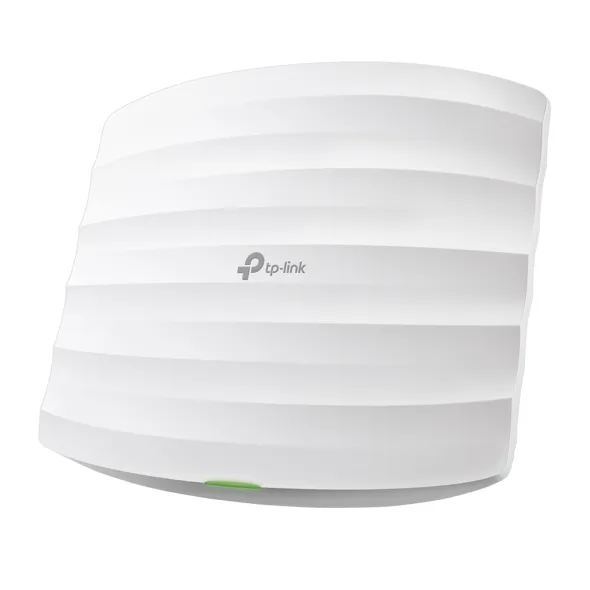

EAP225 tp-link AP

EAP225

AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point

Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz△ and 867 Mbps on 5 GHz totals 1317 Mbps Wi-Fi speeds.†

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.*

PoE Support: Support both standard 802.3af and Passive PoE (PoE adapter included)△ for flexible installations.

Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies.

Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.△

HARDWARE FEATURES

Interface Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af PoE and Passive PoE)

Physical Security Lock Yes

Button Reset

Power Supply • 802.3af PoE

• 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)

Max. Power Consumption 12.6 W

Dimensions ( W x D x H ) 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)

Antenna 3 Internal Omni

• 2.4 GHz: 4 dBi

• 5 GHz: 5 dBi

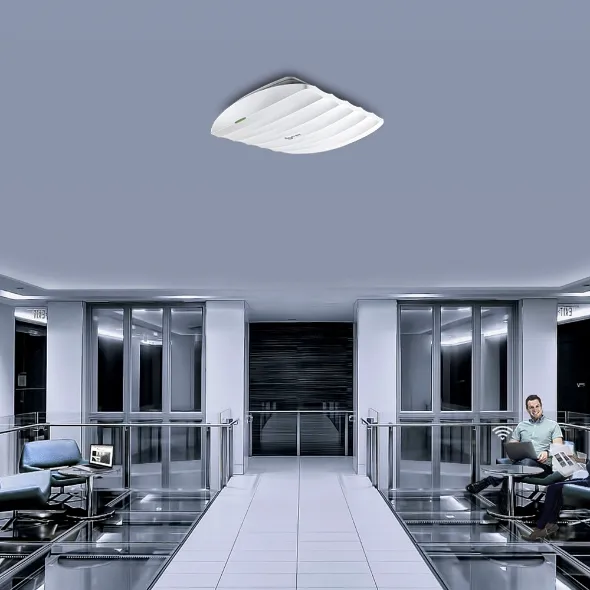

Mounting Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

Wireless Standards IEEE 802.11ac/n/g/b/a

Frequency 2.4 GHz and 5 GHz

Signal Rate • 5 GHz:Up to 867 Mbps

• 2.4 GHz:Up to 450 Mbps

Wireless Functions • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

• Seamless Roaming*

• Omada Mesh*

• Band Steering

• Load Balance

• MU-MIMO

• Airtime Fairness

• Beamforming

• Rate Limit

• Reboot Schedule

• Wireless Schedule

• Wireless Statistics based on SSID/AP/Client

Wireless Security • Captive Portal Authentication*

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• SSID to VLAN Mapping

• Rogue AP Detection

• 802.1X Support

Transmission Power • CE:

≤20 dBm(2.4 GHz, EIRP)

≤23 dBm(5 GHz, EIRP)

• FCC:

≤24 dBm(2.4 GHz)

≤22 dBm(5 GHz)

Management Features

Omada App Yes

Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller

Cloud Access Yes. Require the use of an Omada controller.

Email Alerts Yes

LED ON/OFF Control Yes

Management MAC Access Control Yes

SNMP v1,v2c

System Logging Local/Remote Syslog Local/Remote Syslog

SSH Yes

Web-based Management HTTP/HTTPS

L3 Management Yes

Multi-site Management Yes

Management VLAN Yes

Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20)

OTHERS

Certification CE, FCC, RoHS

Package Content • AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225

• Passive PoE Adapter

• Power Cord

• Mounting Kits

• Installation Guide

System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
