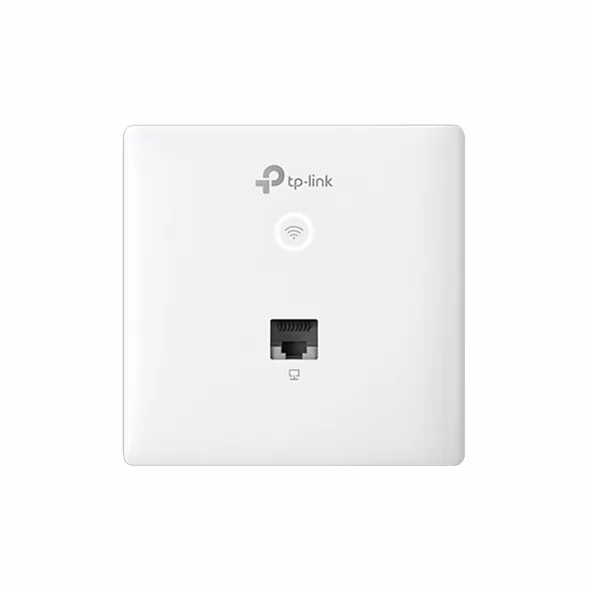

EAP115-Wall

EAP115-Wall

300Mbps Wireless N Wall-Plate Access Point

Integrated into Omada SDN: Centralized Cloud Management and Intelligent Monitoring.

Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

Elegant Appearance: Unprecedented thin design with just 11 mm, the same size and shape as a light switch or power outlet faceplate to fit perfectly in any room.

Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm & EU standard junction box, and 802.3af PoE support.

Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.§

HARDWARE FEATURES

Interface • Uplink: 1× 10/100 Mbps Ethernet Port

• Downlink: 1× 10/100 Mbps Ethernet Port

Physical Security Lock No

Button • LED/Wi-Fi Button

• RESET

Power Supply PoE (IEEE 802.3af)

Max. Power Consumption 2.8 W

Dimensions ( W x D x H ) 3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm)

Antenna Internal 2× 1.8 dBi Omni

Mounting Wall Plate Mounting

Hardware Watch Dog Yes

WIRELESS FEATURES

Coverage 25㎡(300 ft²)**

Concurrent Clients 100+*

Wireless Standards IEEE 802.11n/g/b

Frequency 2.4 GHz

Signal Rate • 11n: Up to 300 Mbps (dynamic)

• 11g: Up to 54 Mbps (dynamic)

• 11b: Up to 11 Mbps (dynamic)

Wireless Functions • Multiple SSIDs (Up to 8 SSIDs)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

• Load Balance

• Rate Limit

• Reboot Schedule

• Wireless Schedule

• Wireless Statistics based on SSID/AP/Client

Wireless Security • Captive Portal Authentication

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• SSID to VLAN Mapping

• Local LAN port based VLAN

• Rogue AP Detection

• 802.1X Support

• 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK

Transmission Power CE：

≤20 dBm (2.4 GHz)

Management Features

Omada App Yes

Centralized Management • Omada Hardware Controller

• Omada Software Controller

Cloud Access Yes. Requiring the use of OC300, OC200, or Omada Software Controller.

Email Alerts Yes

LED ON/OFF Control Yes

Management MAC Access Control Yes

SNMP v1,v2c

System Logging Local/Remote Syslog Local/Remote Syslog

SSH Yes

Web-based Management HTTP/HTTPS

L3 Management Yes

Multi-site Management Yes

Management VLAN Yes

OTHERS

Certification CE, RoHS

Package Content • 300 Mbps Wireless N Wall-Plate Access Point EAP115-Wall

• Installation Guide

• Mounting Screw

System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
