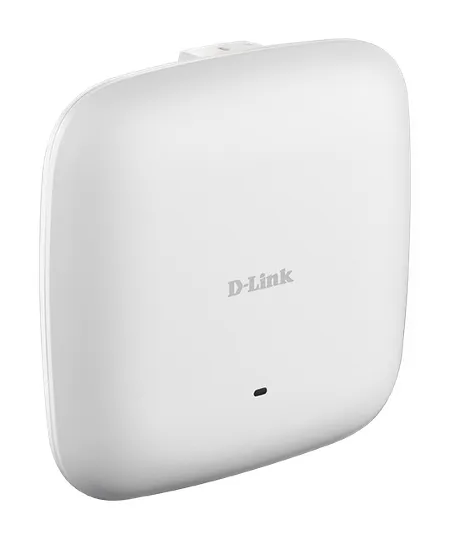

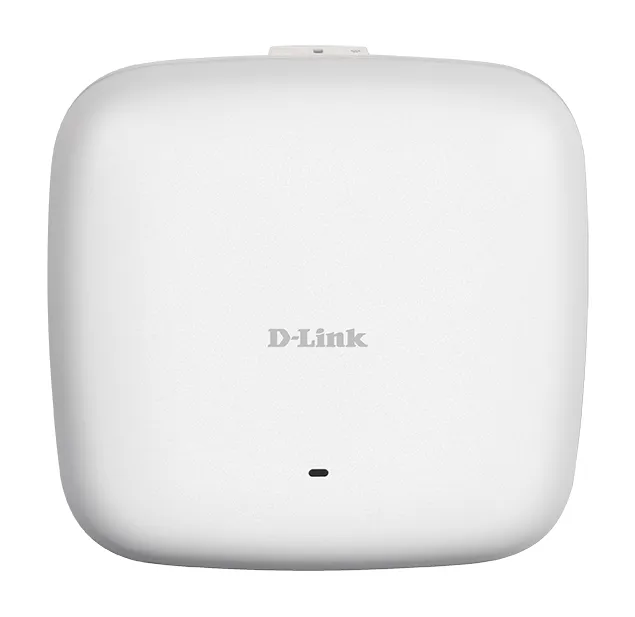

D‑Link DAP‑2680 – Enterprise AC1750 Wave 2 Access Point

1.75 Gbps Dual‑Band • MU‑MIMO • PoE Powered • Nuclias Connect Managed

The D‑Link DAP‑2680 is a high‑performance AC1750 Wave 2 access point engineered for enterprise‑grade indoor networks. Designed to deliver fast, reliable, and secure wireless connectivity, it combines MU‑MIMO efficiency, SmartBeam optimization, and centralized management through Nuclias Connect. Ideal for offices, schools, hospitality, and high‑density environments, the DAP‑2680 ensures seamless performance and simplified deployment.

Key Features

  • Dual‑Band AC1750 Wave 2 Wi‑Fi
    • 5 GHz: 1300 Mbps
    • 2.4 GHz: 450 Mbps
    • 1.75 Gbps combined throughput
  • 2×2 MU‑MIMO for efficient multi‑client handling
  • SmartBeam Beamforming for stronger, targeted coverage
  • Band Steering to automatically guide devices to the optimal band
  • Gigabit PoE Port for flexible installation
  • Nuclias Connect centralized management (free software)
  • Ideal for enterprise, education, hospitality, and retail

📡 Wireless & Radio Specifications

  • Standard: Wireless AC Wave 2 (dual‑band simultaneous)
  • Speeds:
    • 5 GHz: 1300 Mbps
    • 2.4 GHz: 450 Mbps
  • Antennas: Embedded omni‑directional
    • 3.6 dBi @ 2.4 GHz
    • 4.2 dBi @ 5 GHz
  • Advanced Technologies:
    • MU‑MIMO
    • SmartBeam
    • Auto channel selection
  • Operating Modes: AP, WDS Bridge, WDS with AP, Wireless Client

🔌 Hardware & Physical

  • Interface: 1 × Gigabit Ethernet LAN (PoE)
  • Power: PoE (802.3af)
  • Housing: Indoor plastic enclosure
  • Type: Software‑managed AP

⚡ Network Features

  • Roaming: 802.11k/r fast roaming, L2 roaming
  • Optimization:
    • AP traffic load balancing
    • Wi‑Fi scheduler
    • WMM‑PS
  • Protocols: IPv6, DHCP server, IGMP snooping
  • SSIDs: Up to 16

🔒 Security

  • Encryption:
    • WPA/WPA2‑Personal/Enterprise
    • TKIP/AES
    • WEP 64/128‑bit
    • WPA_WPA2_PSK over WDS
  • Access Control:
    • 802.1X authentication
    • MAC filtering
    • SSID broadcast disable
  • Network Protection:
  • Station isolation
  • WLAN partition
  • Rogue AP detection
  • ARP spoofing prevention

💻 Management & Monitoring

  • Platform: Nuclias Connect (free)
  • Interfaces: Web UI, CLI, Telnet, SSH
  • Monitoring: SNMP v1/v2c/v3, Syslog
  • Tools: NTP, traffic statistics, centralized reporting

🌐 Ideal For

  • Enterprise offices
  • Schools & universities
  • Hotels & hospitality
  • Retail stores
  • High‑density indoor deployments

Why It Fits These Environments

  • Wave 2 MU‑MIMO ensures smooth performance for many users
  • PoE support simplifies installation and reduces cabling
  • Nuclias Connect provides scalable, license‑free management
  • SmartBeam & band steering optimize user experience
  • Enterprise‑grade security protects sensitive networks
