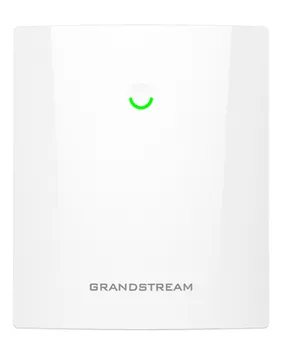

GWN7660ELR Grandstream AP

GWN7660ELR – Enterprise‑Grade Weatherproof Long‑Range Wi‑Fi 6 Access Point

High‑Density AX3000 Wi‑Fi 6 for Indoor & Outdoor Enterprise Deployments

A rugged, long‑range Wi‑Fi 6 access point designed for medium‑to‑large businesses, campuses, and outdoor environments requiring reliable, high‑capacity wireless coverage. The GWN7660ELR delivers strong throughput, extended range, and enterprise‑grade security in a weatherproof enclosure.

Description

The GWN7660ELR provides 3 Gbps aggregate wireless throughput and features hybrid high‑speed backhaul options with 1× 1G RJ45 and 1× 2.5G SFP ports. Powered by dual‑band 2×2:2 MU‑MIMO and OFDMA, it supports 256 concurrent clients with long‑range coverage up to 300 meters. Designed for harsh outdoor conditions, it includes 5 internal antennas, PoE/PoE+ support, and advanced security protections.

Configuration

Wireless Performance

• WiFi Standard: IEEE 802.11b/g/n/ac/ax (Wi‑Fi 6)
• Dual‑Band Throughput:
• 2.4 GHz: 573.5 Mbps (2×2:2 MIMO)
• 5 GHz: 2400 Mbps (2×2:2 MIMO)
• Aggregate Wireless Speed: 3 Gbps
• Coverage Range: Up to 300 meters
• Concurrent Clients: 256
• Technologies:

• 2×2:2 MU‑MIMO
• DL/UL OFDMA
• Beamforming
• Advanced QoS for high‑density, low‑latency applications

Key Features

• 3 Gbps Wi‑Fi 6 throughput
• Long‑range coverage up to 300 meters
• Hybrid backhaul: 1G RJ45 + 2.5G SFP
• Anti‑hacking secure boot & digital signature protection
• Critical data/control lockdown
• Unique per‑device security certificate
• Self‑power adaptation with PoE/PoE+ auto‑detection
• Embedded controller for managing up to 50 local APs
• Full support for GDMS & GWN Manager

Hardware

• Network Interfaces:
• 1 × 1G RJ45 port
• 1 × 2.5G SFP port
• PoE Support:
• 802.3af / 802.3at
• Max Power Consumption: 13W
• Antennas:
• 5 internal antennas
• Dimensions: 270 × 230 × 57 mm
• Mounting: Wall or pole mount (adjustable/rotatable by 60°, kits included)

Security

• WPA/WPA2‑PSK
• WPA/WPA2‑Enterprise
• WPA3
• WEP
• Secure boot
• Digital signatures
• Critical data/control lockdown
• Unique per‑device certificate

Management

• Embedded controller (up to 50 APs)
• GDMS cloud management
• GWN Manager (on‑premise)
• Web UI & mobile app
• Advanced analytics, provisioning & monitoring

Use Cases

Ideal For

• Outdoor enterprise campuses
• Warehouses & industrial zones
• Hotels, resorts & outdoor hospitality areas
• Schools, universities & sports grounds
• Large indoor halls, malls & transportation hubs
• High‑density public Wi‑Fi zones

Why It Works Well

• Long‑range coverage ideal for mixed indoor/outdoor deployments
• Hybrid RJ45 + SFP backhaul supports flexible infrastructure
• Enterprise‑grade security ensures safe, reliable connectivity
• Designed for harsh weather and high‑density environments
