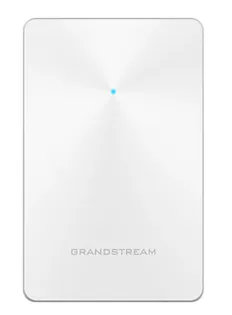

GWN7624 Grandstream AP
عن هذا المنتج
In-Wall Wi-Fi Access Point
GWN7624
The ultimate in-wall solution featuring three Gigabit network ports and PoE output to power IP phones, computers, and TVs while providing high-speed Wi-Fi.
2.03 Gbps
Wireless Throughput
4 Ports
Gigabit Wireline
4x4:4
5GHz MU-MIMO
Key Features
🔌 Connectivity
PoE Passthrough
Includes 2 ports with PSE to provide power and data to devices like IP phones.
📶 Performance
High Capacity
Supports 200+ concurrent clients with 4x4:4 MU-MIMO on 5GHz.
🛡️ Security
Anti-Hacking
Secure boot, digital signatures, unique certificates, and critical data lockdown.
⚡ Efficiency
Smart Power
Self-power adaptation upon auto-detection of PoE or PoE+ input.
Technical Specifications
Wireless Specifications
| 2.4G Throughput | 300Mbps (2x2:2 MIMO) |
| 5G Throughput | 1733Mbps (4x4:4 MU-MIMO) |
| Standards | IEEE 802.11 a/b/g/n/ac |
| Range | Up to 175 Meters |
| SSIDs | 16 SSIDs total (8 per radio) |
Hardware & Power
| Interfaces |
1x 10/100/1000M Uplink (PoE In) 2x 10/100/1000M Ethernet (PSE Out) 1x 10/100/1000M Ethernet |
| PoE Budget |
PSE Max Output: 6W per port Supports 802.3af/802.3at |
| Max Consumption | 25W |
Physical & Security
Dimensions:
135 x 86 x 38.5 mm
Mounting:
Wall Mountable (In-Wall)
Security Protocols:
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, WPA3, anti-hacking secure boot, critical data/control lockdown, digital signatures.
