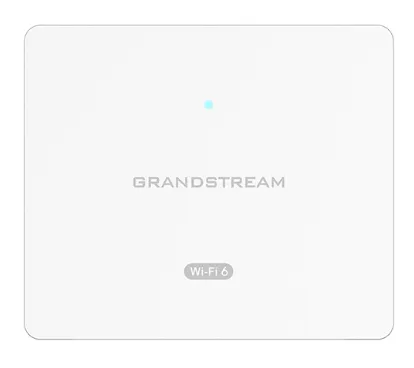

GWN7604 Grandstream AP
عن هذا المنتج
Wi-Fi 6 AP + Integrated PoE Switch
GWN7604
A compact and versatile Wi-Fi 6 Access Point featuring 4 Gigabit Ethernet ports with PSE to power external devices.
3 Gbps
Wireless Throughput
4 Ports
Gigabit Wireline
256
Concurrent Clients
Key Features
🔌 Integrated Switch
PoE Output (PSE)
Includes 2 ports with PSE to provide PoE power and data to other devices.
📶 Performance
Wi-Fi 6 Speed
3Gbps aggregate throughput with 2x2:2 and 3x3:2 MU-MIMO.
🛡️ Security
Anti-Hacking
Secure boot, digital signatures, unique certificates, and critical data lockdown.
⚡ Efficiency
Smart Power
Self-power adaptation upon auto-detection of PoE/PoE+.
Technical Specifications
Wireless Specifications
| 2.4G Throughput | 573.5Mbps (2x2:2 MU-MIMO) |
| 5G Throughput | 2.4Gbps (3x3:2 MU-MIMO) |
| Standards | IEEE 802.11 a/b/g/n/ac/ax |
| SSIDs | 32 SSIDs total (16 per radio) |
Hardware & Power
| Interfaces |
1x 10/100/1000M Uplink (PoE In) 2x 10/100/1000M Ethernet (PSE Out) 1x 10/100/1000M Ethernet |
| PoE Budget | PSE Max Output: 12W total budget |
| Consumption | Max 7.5W (Excluding PoE Output) |
Physical & Security
Dimensions:
135mm(L) x 115mm(H) x 30mm(W)
Mounting:
Indoor Wall Mount
Security Protocols:
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), WPA3, Secure boot, Critical data/control lockdown, Digital signatures.
