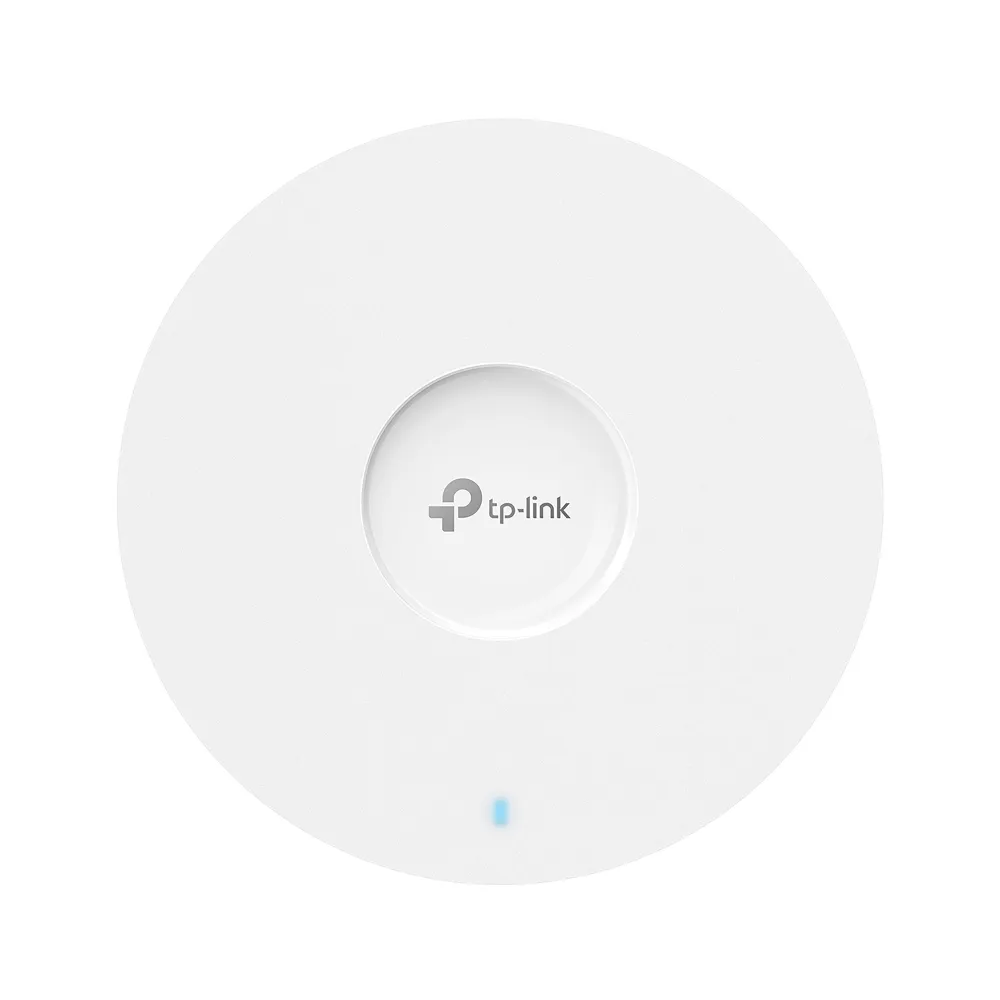

EAP683 UR V1 TP -LINK AP

Omada EAP683 UR – Ultra‑Slim AX6000 Wi‑Fi 6 Access Point

High‑Density AX6000 Performance • Ultra‑Range Coverage • 2.5G Multi‑Gig Uplink

The Omada EAP683 UR is a high‑performance, ultra‑slim Wi‑Fi 6 access point designed for dense enterprise environments. With AX6000 speeds, 4×4 MU‑MIMO, HE160 support, and a 2.5G PoE+ uplink, it delivers exceptional throughput, wide‑area coverage, and seamless cloud‑based management — all in a sleek 32.5 mm chassis.

Product Highlights

• AX6000 Wi‑Fi 6:

• 4804 Mbps (5 GHz)

• 1148 Mbps (2.4 GHz)

• 5952 Mbps total throughput

• Ultra‑Range Coverage:

• High‑power 4×4 antenna arrays

• Up to 185 m² coverage

• High‑Density Capacity:

• Supports 510+ concurrent clients

• 2.5G Multi‑Gig Uplink for maximum backhaul performance

• HE160 (160 MHz) doubles peak data rates

• Omada SDN Integration for centralized cloud management

• Smart Roaming with Omada Mesh + 802.11k/v/r

• Ultra‑Slim Design: only 32.5 mm (1.3 in) thick

Hardware Specifications

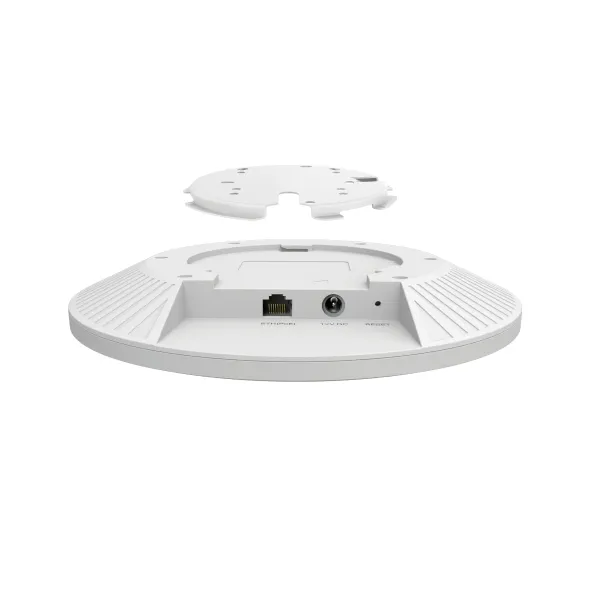

Interface

• 1 × 2.5 Gigabit Ethernet (PoE+) port

Power

• 802.3at PoE

• 12V / 2A DC adapter

• Max Power Consumption:

• EU: 20.43 W

• US: 23.69 W

Antenna System

• Internal omnidirectional antennas

• 2.4 GHz: 4 × 4 dBi

• 5 GHz: 4 × 5 dBi

Physical

• Dimensions: 220 × 220 × 32.5 mm

• Mounting: Ceiling / Wall (kits included)

Wireless Specifications

Standards

• IEEE 802.11ax/ac/n/g/b/a

Data Rates

• 5 GHz: up to 4804 Mbps

• 2.4 GHz: up to 1148 Mbps

Key Wireless Technologies

• 1024‑QAM

• OFDMA

• MU‑MIMO (4×4 DL & UL)

• HE160

• Beamforming

• Band Steering

• Airtime Fairness

• Omada Mesh

• Seamless Roaming (802.11k/v/r)

Security

• WPA3‑Personal / Enterprise

• Captive Portal

• Access Control

• Rogue AP Detection

• 802.1X Authentication

• Wireless Isolation

• VLAN Mapping

Management

Platforms

• Omada App

• OC300 / OC200 Hardware Controllers

• Software Controller

• Cloud‑Based Controller

Access Methods

• Cloud Access

• Web UI (HTTP/HTTPS)

• SSH

Management Features

• L3 Management

• Multi‑Site Management

• Zero‑Touch Provisioning

• SNMP v1/v2c/v3

Environment & Package

• Certifications: CE, FCC, RoHS

• Package Includes:

• EAP683 UR

• Mounting Kits

• Installation Guide

• Operating Temperature: 0–40°C

• Operating Humidity: 10–90% RH (non‑condensing)

Use‑Case Clarity

Ideal For

• Corporate offices & meeting rooms

• Hotels, resorts & hospitality spaces

• Schools, universities & auditoriums

• Retail stores & shopping complexes

• High‑density public indoor areas

Why It Fits These Environments

• High client capacity handles busy networks

• Ultra‑range coverage reduces AP count

• 2.5G uplink prevents bottlenecks

• Slim design blends into modern interiors

• Cloud management simplifies multi‑site operations
