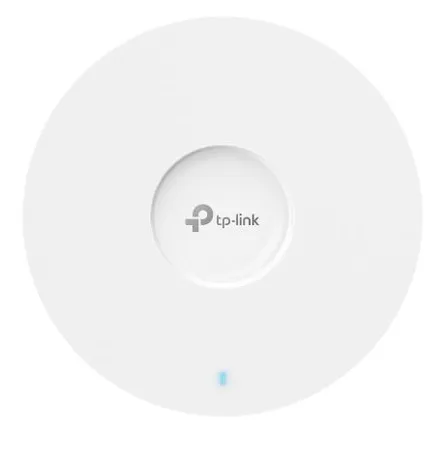

AP9670 TpLink Omada Pro WiFi 6 Access Point

Omada Pro AX5400 – Ceiling‑Mount Wi‑Fi 6 Access Point

High‑Density Wi‑Fi 6 with 2.5G Uplink, HE160, and Intelligent Cloud‑Driven Management

The Omada Pro AX5400 is a high‑performance Wi‑Fi 6 access point designed for enterprise‑grade indoor deployments. With BE‑class efficiency, HE160 support, intelligent anomaly detection, and seamless Omada Mesh, it delivers ultra‑fast, stable, and secure wireless connectivity for offices, schools, hotels, and high‑density commercial environments.

Product Highlights

• Lightning‑fast Wi‑Fi 6 speeds: 574 Mbps (2.4 GHz) + 4804 Mbps (5 GHz) = 5378 Mbps total
• Intelligent Anomaly Detection for proactive IT maintenance
• Centralized Cloud Management via Omada App, Web UI, or Cloud Controller
• 160 MHz Channel (HE160) doubles throughput on a single stream
• Seamless Roaming for uninterrupted voice/video mobility
• Omada Mesh for wireless AP‑to‑AP backhaul
• PoE+ Powered with included DC adapter
• Supports 250+ concurrent clients with up to 140 m² (1500 ft²) coverage

Configuration

Hardware Features

• Interface: 1 × 2.5 Gigabit Ethernet port
• Button: Reset
• Power Supply:
• 802.3at PoE+
• 12V / 1.5A DC (adapter included)
• Max Power Consumption:
• EU: 18.05W (PoE), 16.39W (DC)
• US: 19.8W (PoE), 17.8W (DC)
• Dimensions: 243 × 243 × 64 mm
• Antenna: Internal omnidirectional
• 2.4 GHz: 2 × 4 dBi
• 5 GHz: 4 × 5 dBi
• Mounting: Ceiling / Wall (kits included)

Wireless Features

• Coverage: 140 m² (1500 ft²)
• Concurrent Clients: 250+
• Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency Bands: 2.4 GHz & 5 GHz
• Signal Rates:
• 5 GHz: 4804 Mbps
• 2.4 GHz: 574 Mbps
• Advanced Wireless Functions:

• 1024‑QAM
• OFDMA
• 4× Longer OFDM Symbol
• Beamforming
• MU‑MIMO
• HE160
• Omada Mesh △
• Seamless Roaming △
• Airtime Fairness
• Load Balancing
• Band Steering
• 16 SSIDs

Security

• WPA/WPA2/WPA3 (Personal & Enterprise)
• 802.1X Authentication
• Captive Portal △
• Access Control
• Rogue AP Detection
• WIDS/WIPS △
• SSID‑to‑VLAN Mapping
• Wireless Isolation

Transmission Power

• CE:
• <20 dBm (2.4 GHz)
• <23 dBm (5 GHz Band 1/2)
• <30 dBm (5 GHz Band 3)
• FCC:

• <25 dBm (2.4 GHz)
• <28 dBm (5 GHz)

Management Features

• Centralized Management:
• Omada Pro Software Controller
• Cloud‑Based Controller
• Access Methods:
• Omada App
• Cloud Access
• Web UI (HTTP/HTTPS)
• SSH
• Management Capabilities:

• Zero‑Touch Provisioning
• Multi‑Site Management
• Management VLAN
• L3 Management
• SNMP v1/v2c/v3
• Syslog

Other Information

• Certifications: CE, FCC, RoHS
• Package Contents:
• AP9670
• Power Adapter
• Ceiling/Wall Mount Kits
• Installation Guide
• System Requirements: Windows XP–11, Linux
• Environment:

• Operating Temp: 0–40°C
• Storage Temp: –40–70°C
• Operating Humidity: 10–90% non‑condensing
